Description

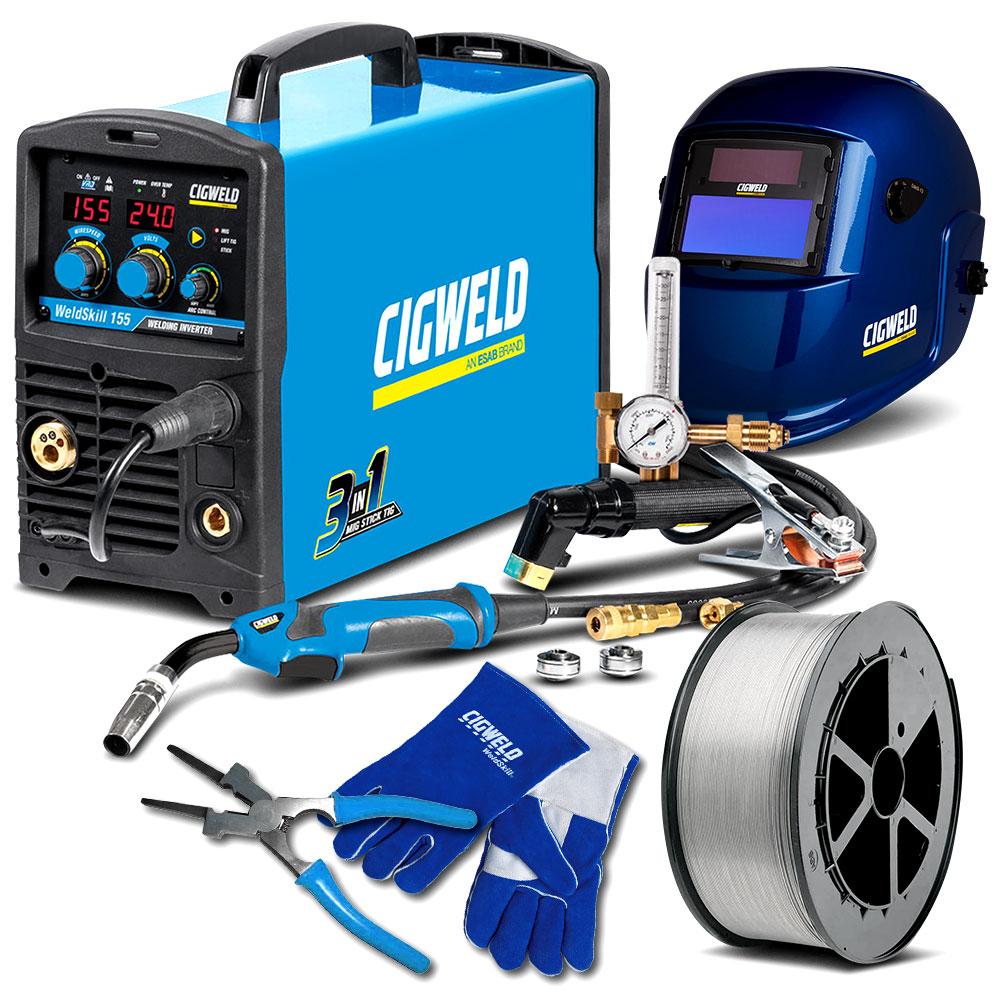

The WeldSkill 155 is a self-contained single phase welding inverter, capable of performing MIG (FCAW/GMAW), Stick (MMAW) and Lift TIG (GTAW) welding processes. This unit is compact, portable, and simple to use, making the ideal welder for those who want to do light fabrication, maintenance and repairs or DIY projects, without compromising on quality or safety.
Features:
MIG, STICK, TIG Welding Inverter
Plug & Play – runs on any 10 Amp power point
Digital Amperage and Voltage Meters
Designed specifically for the home handyman/tradesman
Integrated Wire Feed Unit Spools up to 5kg or 200mm
Digital Amperage and Voltage Meters
Euro Torch Connection
Adjustable Burnback Control Used to adjust the amount of MIG wire that protrudes from the MIG torch after the completion of MIG welding
Suitable for Gas and Gasless wire
Arc Control (Inductance)
DC Lift TIG function: This unit features a Lift TIG function that provides smooth starting and running characteristics across a broad range of applications
Standards compliant Voltage Reduction Device
Over Temperature Cut Out Protection has been fitted to power source
Enclosure rated to IP21S
Specifications:
Welder Type: MIG, STICK, LIFT TIG Inverter Power Source
Duty Cycle, MIG (GMAW), 40ºC, 10 min: 155 A @15%, 21.8V
Duty Cycle, STICK (MMAW), 40ºC, 10 min: 135 A @15%, 25.4V
Duty Cycle, TIG (GTAW), 40ºC, 10 min: 135 A @15%, 15.4V
Standards: AS 60974.1-2006 / IEC 60974-1
Cooling: Fan cooled
Number of Phases: Single phase
Nominal Supply Voltage: 240V AC +/- 15%
Nominal Supply Frequency: 50/60Hz
Nominal DC Open Circuit Voltage (MIG Weld Mode): 69V
Factory Fitted Supply Plug Rating; 10Amps
Open Circuit Voltage (VRD On) Stick Weld Mode:
