Description

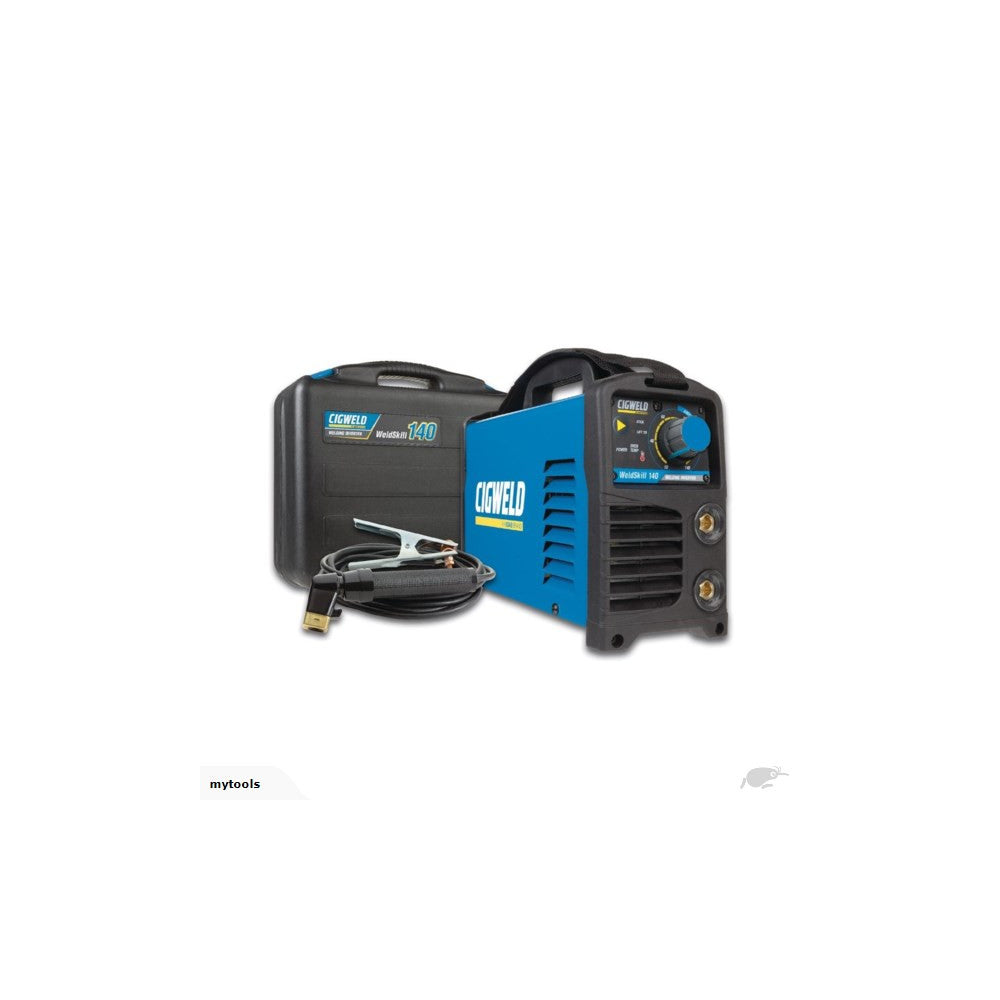

The WeldSkill 140 is a single phase welding inverter with a user-friendly control panel, a practical push-button operation for mode selection, clearly visible LED indicators and sturdy large control knob.
Affordable, compact and light-weight, this unit is a great addition to the shed ensuring the ultimate portability for the Home Handyman, Tradesman, Farmer or Maintenance Worker.
In addition to its appealing design and functional features, the WeldSkill 140 provides the added reassurance of a high-quality welding inverter that complies with Australian Standards.
Simply plug it in at home or into any standard 10 Amp power point and get welding right away!
Twist lock electrode holder
Rugged case with carrying handle and carry strap
4m long electrode holder and work leads
Push button weld mode selector with LED indicators
3 Year Warranty
Dimensions
H200mm x W120mm x D315mm
Weight
4.7kg
Cooling
Fan Cooled
Processes
Lift TIG (GTAW), Stick (MMAW)
Australian Standards
AS 60974.1-2006 / IEC 60974-1
Number of Phases
Single Phase
Supply Voltage
240V AC ± 10%
Nominal Supply Frequency
50/60 Hz
Current Range
10 - 140A
Open Circuit Voltage
80V
Maximum Input Current
26.3 Amps
Generator Requirement
6.0 kW (7.5 kVA @ 0.8
Duty Cycle
Stick (MMAW): 140 Amps @ 15% Duty Cycle (40C, 10 mins)
TIG (GTAW): 140 Amps @ 35% Duty Cycle (40C, 10 mins)
Protection Class
IP21S
Open Circuit Voltage
75V
Supply Plug Lead
10 Amps
Effective Input Current
10 Amps
Affordable, compact and light-weight, this unit is a great addition to the shed ensuring the ultimate portability for the Home Handyman, Tradesman, Farmer or Maintenance Worker.
In addition to its appealing design and functional features, the WeldSkill 140 provides the added reassurance of a high-quality welding inverter that complies with Australian Standards.
Simply plug it in at home or into any standard 10 Amp power point and get welding right away!
Twist lock electrode holder
Rugged case with carrying handle and carry strap
4m long electrode holder and work leads
Push button weld mode selector with LED indicators
3 Year Warranty
Dimensions
H200mm x W120mm x D315mm
Weight
4.7kg
Cooling
Fan Cooled
Processes
Lift TIG (GTAW), Stick (MMAW)
Australian Standards
AS 60974.1-2006 / IEC 60974-1
Number of Phases
Single Phase
Supply Voltage
240V AC ± 10%
Nominal Supply Frequency
50/60 Hz
Current Range
10 - 140A
Open Circuit Voltage
80V
Maximum Input Current
26.3 Amps
Generator Requirement
6.0 kW (7.5 kVA @ 0.8
Duty Cycle
Stick (MMAW): 140 Amps @ 15% Duty Cycle (40C, 10 mins)
TIG (GTAW): 140 Amps @ 35% Duty Cycle (40C, 10 mins)
Protection Class
IP21S
Open Circuit Voltage
75V
Supply Plug Lead
10 Amps
Effective Input Current
10 Amps
Product Documents
weldskill-140 (1).pdf
