Description
This unit is specifically designed for the budget-conscious user who doesn’t want to sacrifice on quality or weld results. With its compact casing and IP23S rating the 180 AC/DC is ideal for indoor or outdoor use around the workshop .
In TIG mode the unit has all the features required to customise your welding preferences – High Frequency (HF), Up/Down Slope, Pre/Post
Flow, 2T/4T Trigger Function, Spot Mode and Gas Purge for AC or DC TIG welding. When welding in AC only, Frequency and Wave Balance can be refined with impressive adjustability and when operating in Pulse Mode the user has full flexibility to adjust Frequency, Width and Peak Current.
In Stick mode the 180 AC/DC features VRD, Anti-Stick and Hot Start and can weld with up to 3.2mm electrodes. The CIGWELD WeldSkill 180 AC/DC comes as a complete kit with an 4m Remote Control TIG Torch, Argon Regulator/Flowmeter, 4m Electrode Holder and Work Clamp .
3 Year Warranty included

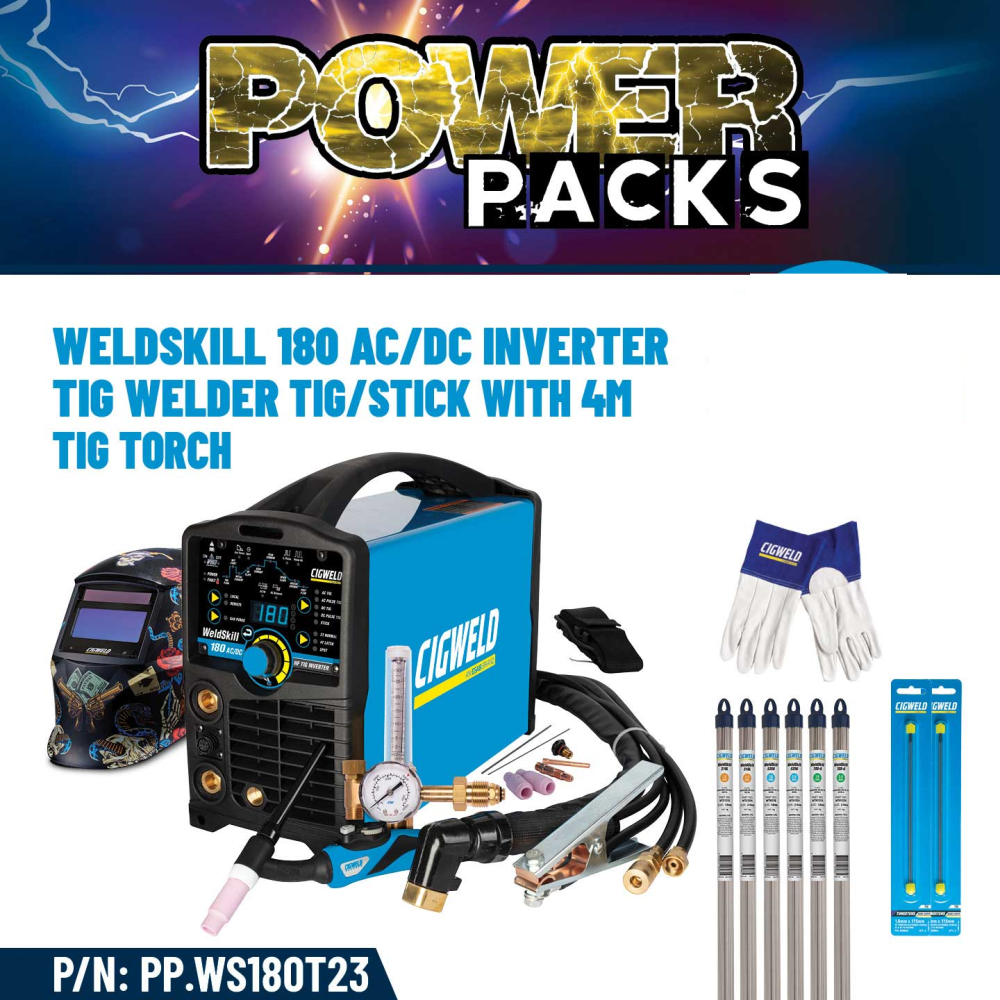

INCLUDED:
WeldSkill 180 AC/DC Inverter Plant 240V/10A – W1008195
Welding Helmet Shade 4/9-13 AM-PayDay – WHAM1649
TIG Welding Gloves Kevlar Stitched – Large – 646754
WeldSkill ASST welding rods, Ali, Stainless & mild steel
3T Tungsten 1.6mm AC/DC Purple Pk = 2ea – 699859
3T Tungsten 2.4mm AC/DC Purple Pk = 2ea – 699860
Current Range
10-180A (TIG Mode), 10-130A (STICK Mode)
Duty Cycle
HF TIG: 180A @ 15%, 17.2V (40C, 10mins)
STICK: 130A @ 15%, 25.2V (40C, 10mins)
Generator Requirement
8kVA
Processes
AC/DC HF TIG (GTAW), Stick (MMAW)
Supply Voltage
240V, +/- 15%, 50/60Hz
Supply Plug & Lead
10A
