Description
10" SLIMLINE THERMATIC® Electric FAN (12 VOLT) (PART #0147)
All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).
A Davies Craig Thermatic® Fan is suitable for both condenser and radiator cooling. Thermatic® Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.
These fan assemblies are set up for upstream applications.
For downstream applications the fan blade must be removed and turned over and the polarity reversed. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.
SPECIFICATIONS COMPONENTS
Airflow 696 CFM (ft3/min) #10213
Motor (12 Volt) - 7.0A (12 Volt)
Maximum current - 3.5A (24 Volt)
#10317 Rotor (reversible, glass-filled nylon)
Weight 1.13 kg (2.5 lb)
#10375 Shroud (glass-filled polypropylene)

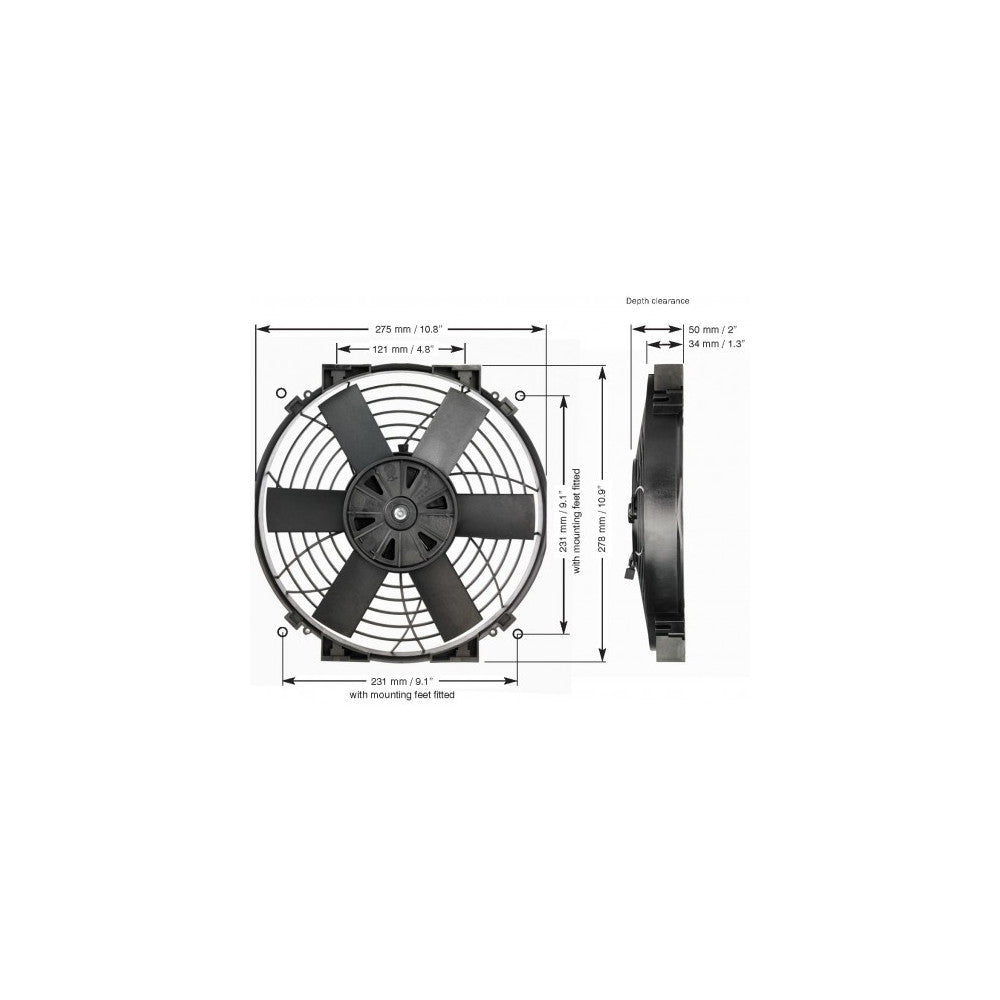

Dimensions
Height = 278mm
Height = 275mm
Depth = 56mm
#0604 Mounting feet
