Description

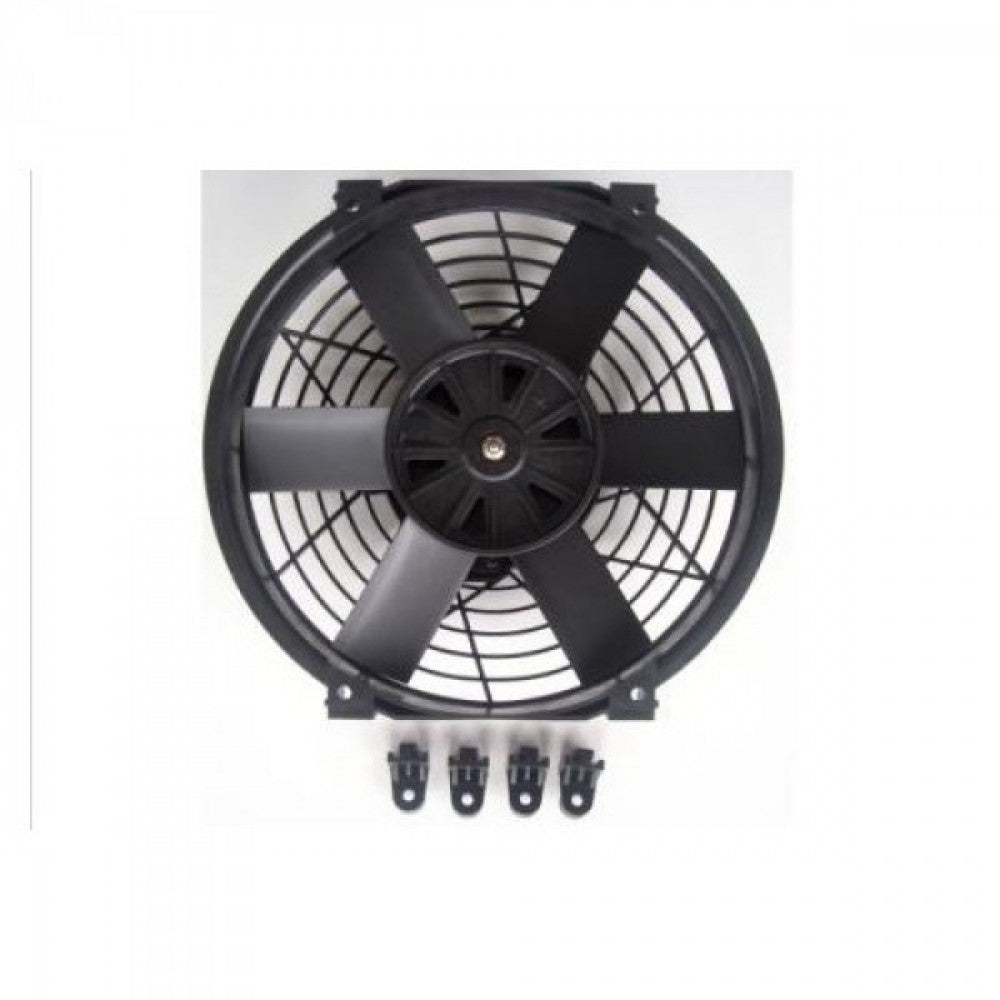

All Davies Craig Thermatic® Fan are packaged with fan assembly (motor, fan blade, shroud and mounting feet).
A Davies Craig Thermatic® Fan is suitable for both condenser and radiator cooling. Thermatic® Fans provide; Constant air flow, increased fuel economy, air conditioning performance, cooler engine running, low profile, high performance, increased engine power and fully reversible blades and polarity for bi-directional air flow.
These fan assemblies are set up for upstream applications.
For downstream applications the fan blade must be removed and turned over and the polarity reversed. Always check that the fan blade rotates in the direction shown by the arrows on the blade before making a permanent wiring connection and prior to fastening the unit to the radiator.
SPECIFICATIONS:
Product Type: Fans, Electric
Product Line: Davies Craig Thermatic Electric Fans
Puller:Yes
Pusher:Yes
Fan Diameter: 12.000"
Fan CFM Range: 800-899
Maximum Fan CFM: 847
Fan Quantity: Single

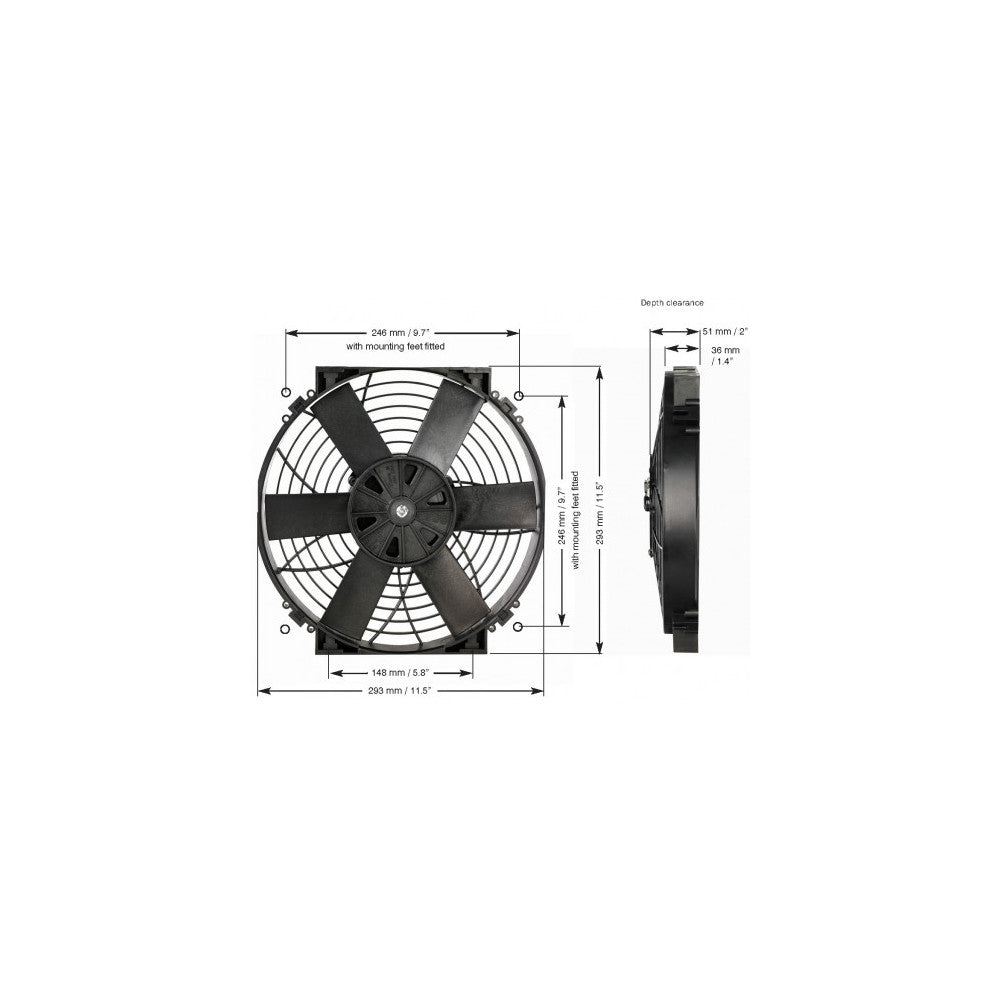

Height: 10.500"
Width: 11.500"
Thickness: 2.000"
Number of Blades: 6 blades
Maximum Fan RPM: 2,250
Blade Material: Nylon
Blade Color: Black
Shroud Color: Black
Shroud Material: Nylon
Amp Draw: 9.00 amps
Air Conditioning Relay Included: No
Mounting Brackets Included: Yes
Mounting Hardware Included: No
Quantity: Sold Each
