Description

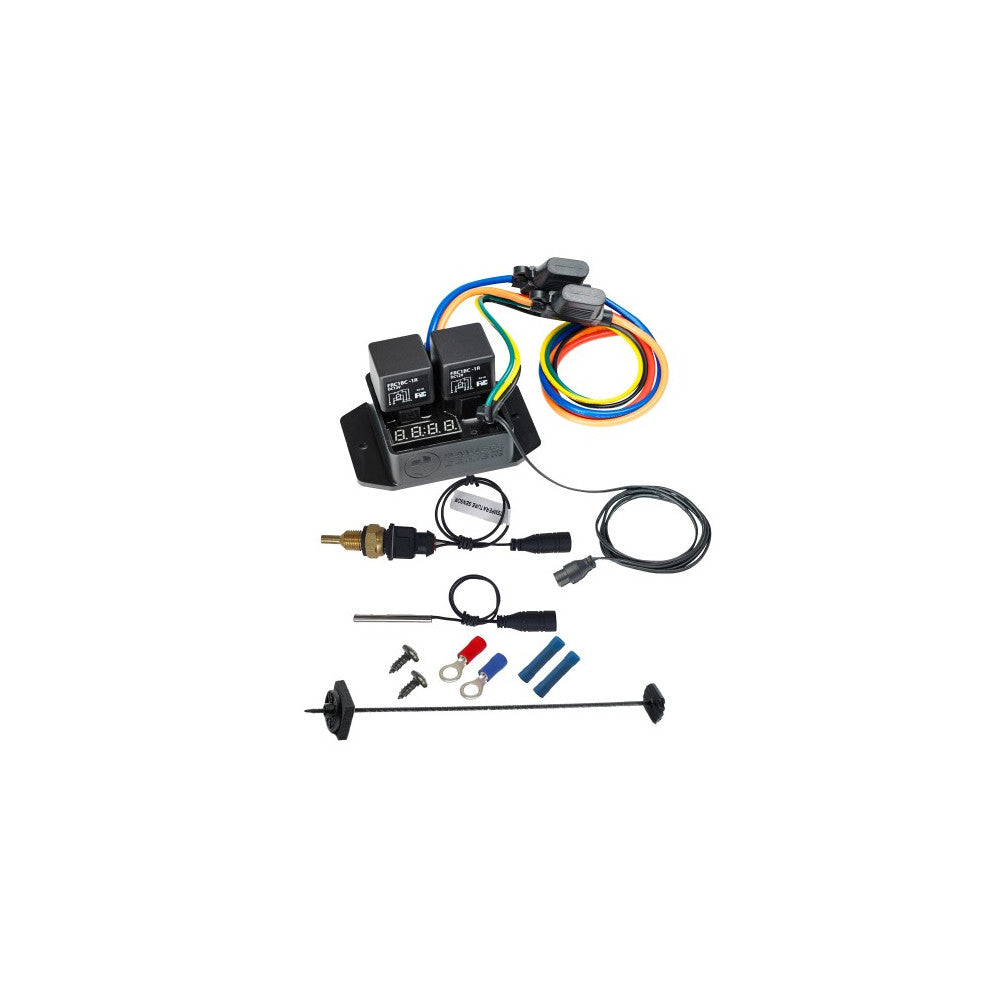

This kit comes with two sensors offering a host of different installation options for coolant temperature sensing.
Sensor 1: Temperature Probe (Air or Coolant Fitment)
It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.
Sensor 2: ¼ NPT Thermal Sensor Kit (Coolant Fitment Only)
The Thermal Sensor can be placed into the thermostat housing, engine block, or directly into the radiator. If you would like to install this sensor in the top radiator hose, It can also be used with Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.
The switch can run 1 or 2 fans and be used for 12 or 24 volt applications. It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit.
Fan #1 will start once the temperature reaches the set temperature.
Fan #2 (if applicable) will start operation 10 seconds after fan #1 starts.
The fan/s will operate until the temperature falls by 5°C below the set temperature.
Sensor Wire length: 142cm in total (Wire from switch 112cm plus sensor connector 30cm)
IP66 Rated:
Protected from total dust ingress
Protected from high pressure water jets from any direction, limited ingress protection
Not waterproof
Specifications :
Product Type: Fan Switches
Product Line: Davies Craig Digital Thermatic Fan Switch Kits
Thermal Switch Style: Fan control kit
Sending Unit Style: Radiator probe
Sending Unit Included: Yes
Fan Quantity: Single/Dual
Adjustment Range (degrees F): 104-230
Relay Included: Yes
Wiring Harness Included: Yes
Manual Override Switch Included: No
Air Conditioning Relay Included: Yes
Quantity: Sold as a kit
Note: Kit sold in 12 volt configuration, for 24 volt application you will need to change the two relays with 2 x 24 volt relays which are not supplied in the kit.
Sensor 1: Temperature Probe (Air or Coolant Fitment)
It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.
Sensor 2: ¼ NPT Thermal Sensor Kit (Coolant Fitment Only)
The Thermal Sensor can be placed into the thermostat housing, engine block, or directly into the radiator. If you would like to install this sensor in the top radiator hose, It can also be used with Temperature Sensor Adaptor Kit (Part 0409) which is available from our store.
The switch can run 1 or 2 fans and be used for 12 or 24 volt applications. It has an adjustable temperature range of 40ºC to 110ºC (104ºF to 230ºF) which can show Centigrade or Fahrenheit.
Fan #1 will start once the temperature reaches the set temperature.
Fan #2 (if applicable) will start operation 10 seconds after fan #1 starts.
The fan/s will operate until the temperature falls by 5°C below the set temperature.
Sensor Wire length: 142cm in total (Wire from switch 112cm plus sensor connector 30cm)
IP66 Rated:
Protected from total dust ingress
Protected from high pressure water jets from any direction, limited ingress protection
Not waterproof
Specifications :
Product Type: Fan Switches
Product Line: Davies Craig Digital Thermatic Fan Switch Kits
Thermal Switch Style: Fan control kit
Sending Unit Style: Radiator probe
Sending Unit Included: Yes
Fan Quantity: Single/Dual
Adjustment Range (degrees F): 104-230
Relay Included: Yes
Wiring Harness Included: Yes
Manual Override Switch Included: No
Air Conditioning Relay Included: Yes
Quantity: Sold as a kit
Note: Kit sold in 12 volt configuration, for 24 volt application you will need to change the two relays with 2 x 24 volt relays which are not supplied in the kit.
