Description

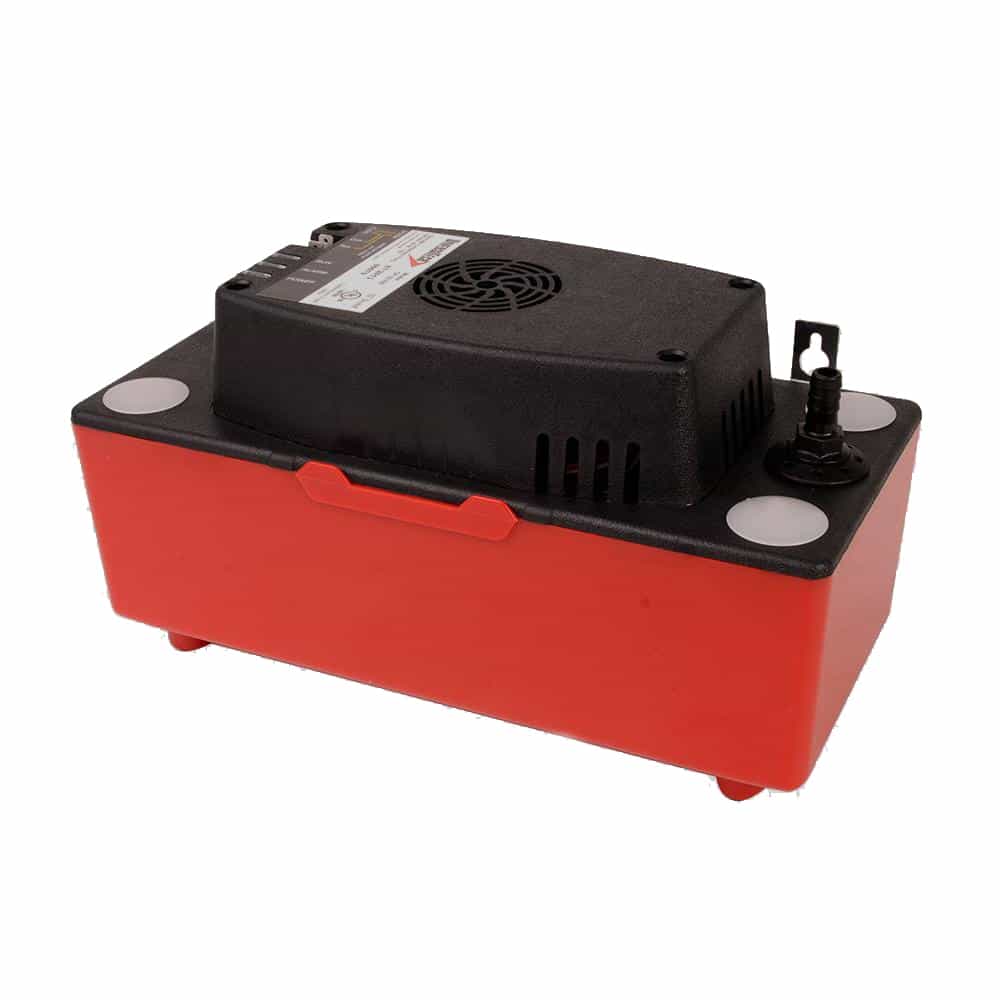

The DiversiTech CP-22LP-230 Condensate Pump for standard
applications is only 10cm tall. It is a great option when space is at a
premium. 230 volt pump features 6.7 meters of lift, vibration dampening feet
& motor mounts, check valve, & overflow switch. Shorter reservoir holds
1.25 litres of condensate water. Suitable for use with condensate up to 70°C.
FEATURES: Vibration Isolation - the elastomeric motor mounting gasket dampens
vibration Indicator Lights - the red, yellow, & green indicator lights show
the pump status. The green shows the power applied to the pump, yellow shows
the pump is running, & red is for high-level alarm Rubber Feet - the rubber
feet that support the CP-22 Condensate pump help to dampen vibration which
reduces noise Four Inlet Holes - the four inlets versus two or three on other
pumps provide the greatest installation versatility. Inlet holes have a
reinforced wall for durability Removable Check Valve - the CP-22 Condensate
Pump features a removable check valve which allows for hassle-free cleaning
Overflow Safety Switch - the 1/4" quick connect terminals provide easy
connection to the built-in overflow switch. Two terminals are provided allowing
the installer flexibility to connect the air handler shut-down. The switch
features SPDT isolated contacts ready for connection to building automation
systems Metal Hang Tabs - the CP-22 Condensate Pump comes equipped with
shatterproof stainless steel hang tabs which have hole-&-slot design for
easy mounting. The tabs are located on convenient 8" centers. INCLUDES: 1
x CP-22LP-230 Pump. SPECIFICATIONS: Type: Low profile Overall dimensions: 10 x
15 x 17 cm Flow rate: 6 Litres per minute Discharge head: 6.7 Meters Reservoir
capacity: 1.4 Litres Input supply rating: 230 Volt AC 60 Hertz 1 Amp
Temperature rating: 60 Deg C (continuous), 70 Deg C (Inlet) Options: Safety
switch Application: High-efficiency furnace, humidifier Applicable st&ard:
UL Input type: NEMA 6 to 15 plug Inlet height Size from base: 11.20cm
