Description
FEATURES:
Vibration Isolation – the elastomeric motor mounting gasket dampens vibration
Indicator Lights – the red, yellow, & green indicator lights show the pump status. The green shows the power applied to the pump, yellow shows the pump is running, & red is for high-level alarm
Rubber Feet – that support the CP-22 Condensate pump help to dampen vibration which reduces noise
Four Inlet Holes – versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for durability
Removable Check Valve – the CP-22 Condensate Pump features a removable check valve which allows for hassle-free cleaning
Overflow Safety Switch – the 1/4? quick connect terminals provide easy connection to the built-in overflow switch. Two terminals are provided allowing the installer flexibility to connect the air h&ler shut-down. The switch features SPDT isolated contacts ready for connection to building automation systems
Metal Hang Tabs – the CP-22 Condensate Pump comes equipped with shatterproof stainless steel hang tabs which have hole-&-slot design for easy mounting. The tabs are located on convenient 8? centers.

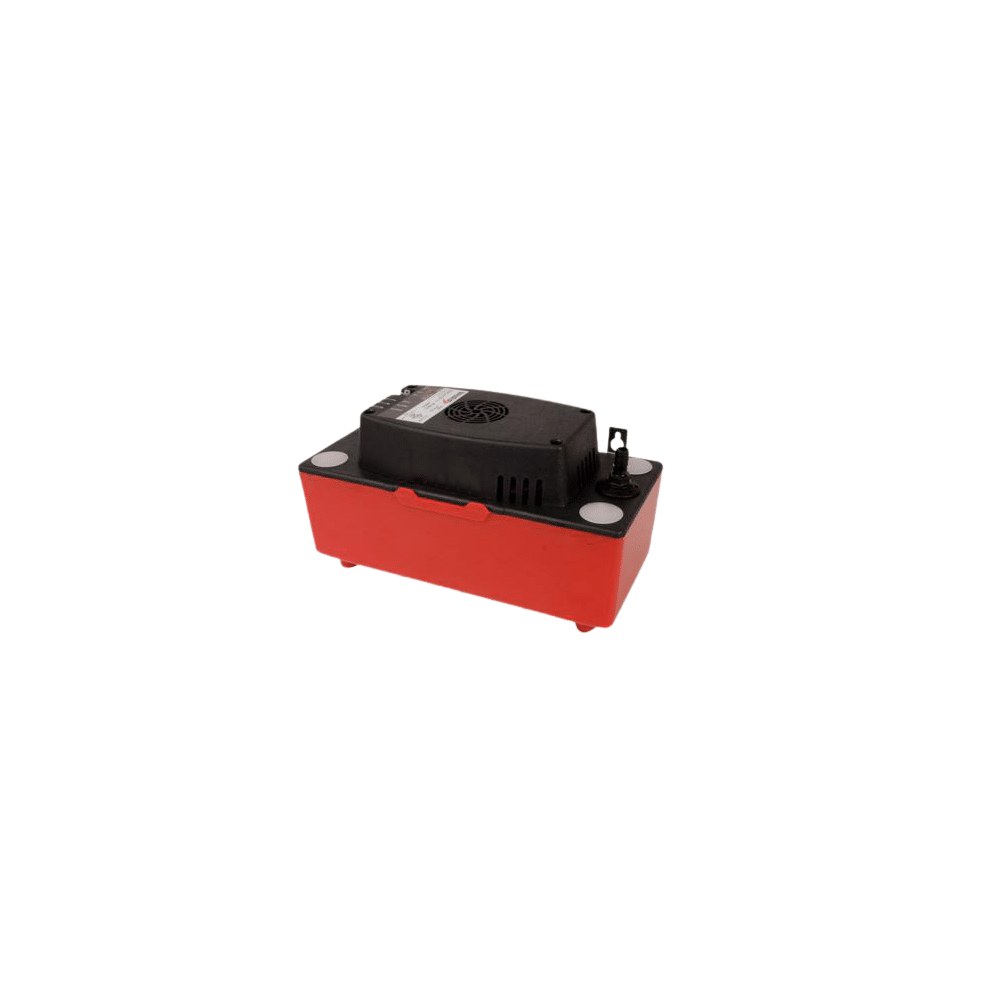

INCLUDES: 1 x Redbox 2 Litre Tank Pump.
SPECIFICATIONS:
Overall dimensions: 30 x 15 x 17 cm
Discharge head: 6.7 meters
Reservoir capacity: 1.9 Litres
Input supply rating: 230 V AC 60 hertz 1 amp
Temperature rating: 60c (continuous), 70c (Inlet)
Application: High-efficiency furnace, Humidifier
Input type: NEMA 6 to 15 Plug
Inlet height size from base: 2.2 cmh.
Vibration Isolation – the elastomeric motor mounting gasket dampens vibration
Indicator Lights – the red, yellow, & green indicator lights show the pump status. The green shows the power applied to the pump, yellow shows the pump is running, & red is for high-level alarm
Rubber Feet – that support the CP-22 Condensate pump help to dampen vibration which reduces noise
Four Inlet Holes – versus two or three on other pumps provide the greatest installation versatility. Inlet holes have a reinforced wall for durability
Removable Check Valve – the CP-22 Condensate Pump features a removable check valve which allows for hassle-free cleaning
Overflow Safety Switch – the 1/4? quick connect terminals provide easy connection to the built-in overflow switch. Two terminals are provided allowing the installer flexibility to connect the air h&ler shut-down. The switch features SPDT isolated contacts ready for connection to building automation systems
Metal Hang Tabs – the CP-22 Condensate Pump comes equipped with shatterproof stainless steel hang tabs which have hole-&-slot design for easy mounting. The tabs are located on convenient 8? centers.
INCLUDES: 1 x Redbox 2 Litre Tank Pump.
SPECIFICATIONS:
Overall dimensions: 30 x 15 x 17 cm
Discharge head: 6.7 meters
Reservoir capacity: 1.9 Litres
Input supply rating: 230 V AC 60 hertz 1 amp
Temperature rating: 60c (continuous), 70c (Inlet)
Application: High-efficiency furnace, Humidifier
Input type: NEMA 6 to 15 Plug
Inlet height size from base: 2.2 cmh.
