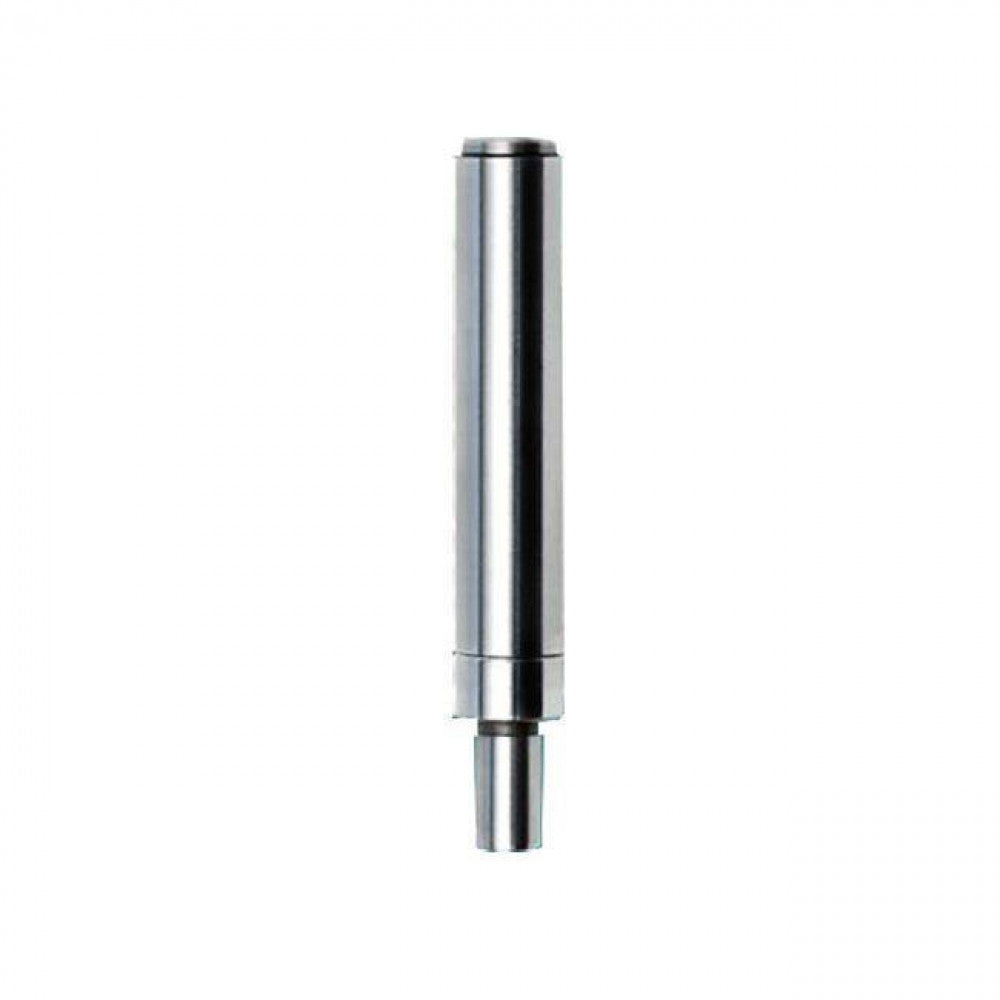

Edge Finder Single Ended ME-610 10mm Dia Body x 6mm Dia End x 65mm Long
Roll over image to zoom in Click on image to zoom
Edge Finder Single Ended ME-610 10mm Dia Body x 6mm Dia End x 65mm Long

Edge Finder Single Ended ME-610 10mm Dia Body x 6mm Dia End x 65mm Long

ANN WAY SKU: ANN1102
No reviews
Price:
$32.61
or 4 interest free payments of $8.15
Stock:
In stock (7 units), ready to be shipped

Description

Mechanical - Hardened ground and lapped to close tolerances, the edge finder is placed in a chuck and the work table is then traversed to make contact between the rotating edge finder and the work. Contact will shift to a concentric position relative to the body and with very slight additional movement this will move off centre with a decided wobble.At this point the centre of the finder is exactly one-half the diameter of the contact from the work edge. Accuracy 0.01mm. The ceramic contact type option means the finder is unaffected by magnetism.





Description : Single Ended


Body Diameter : 10mm


Contact Diameter : 6mm dia steel
