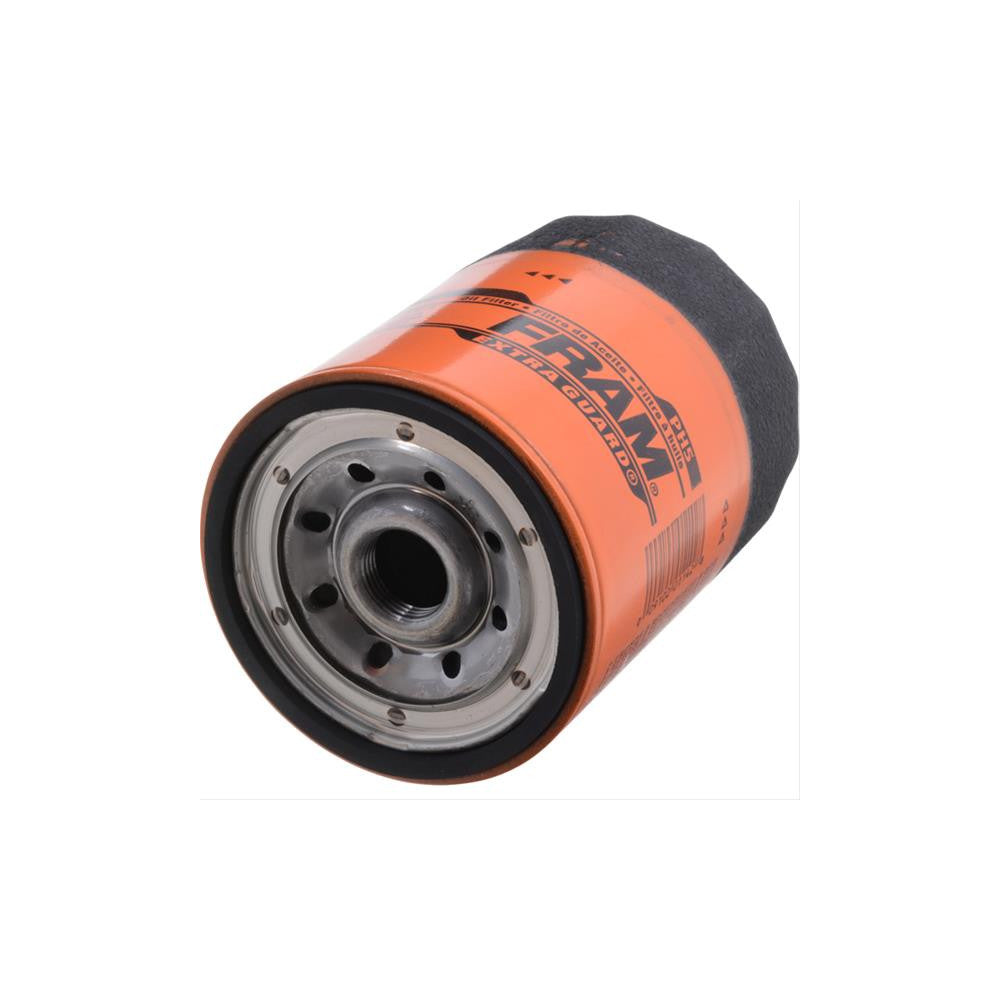

Fram Extra Guard Oil Filters Ford Standard #PH8A

With an ideal balance of dirt-trapping efficiency and dirt-holding capacity, Fram Extra Guard oil filters use a special blend of fibers and resin to create a proprietary filter media that delivers excellent engine protection. Extra Guard filters are the perfect filter for everyday drivers who perform frequent maintenance on their vehicles

Features include:

* Engineered for conventional motor oil
* Cellulose and glass blended media provides protection for up to 5,000 miles
* 95 percent filtration efficiency
* Internally lubricated sealing gasket for easier filter removal
* Precision-molded nitrile anti-drainback valve for start-up engine protection
* Coil spring with glass fiber reinforced nylon poppet relief valve
* Sure Grip coating provides a non-slip finish for easier installation and removal

Specifications :

Brand: Fram

Manufacturer's Part Number: PH8A

Part Type: Oil Filters

Product Line: Fram Extra Guard Oil Filters

Oil Filter Style: Canister

Thread Size: 3/4 in.-16

Height (in.): 5.140

Outside Diameter (in.): 3.813

Filter Bypass Relief Valve: Yes

Anti-Drainback Valve: Yes

Relief Valve Open (psi): 12 psi

Smallest Particle Filtered: 20 microns

Gasket Outside Diameter (in.): 2.800

Gasket Inside Diameter (in.): 2.422

Gasket Thickness (in.): 0.203

Quantity: Sold Each
