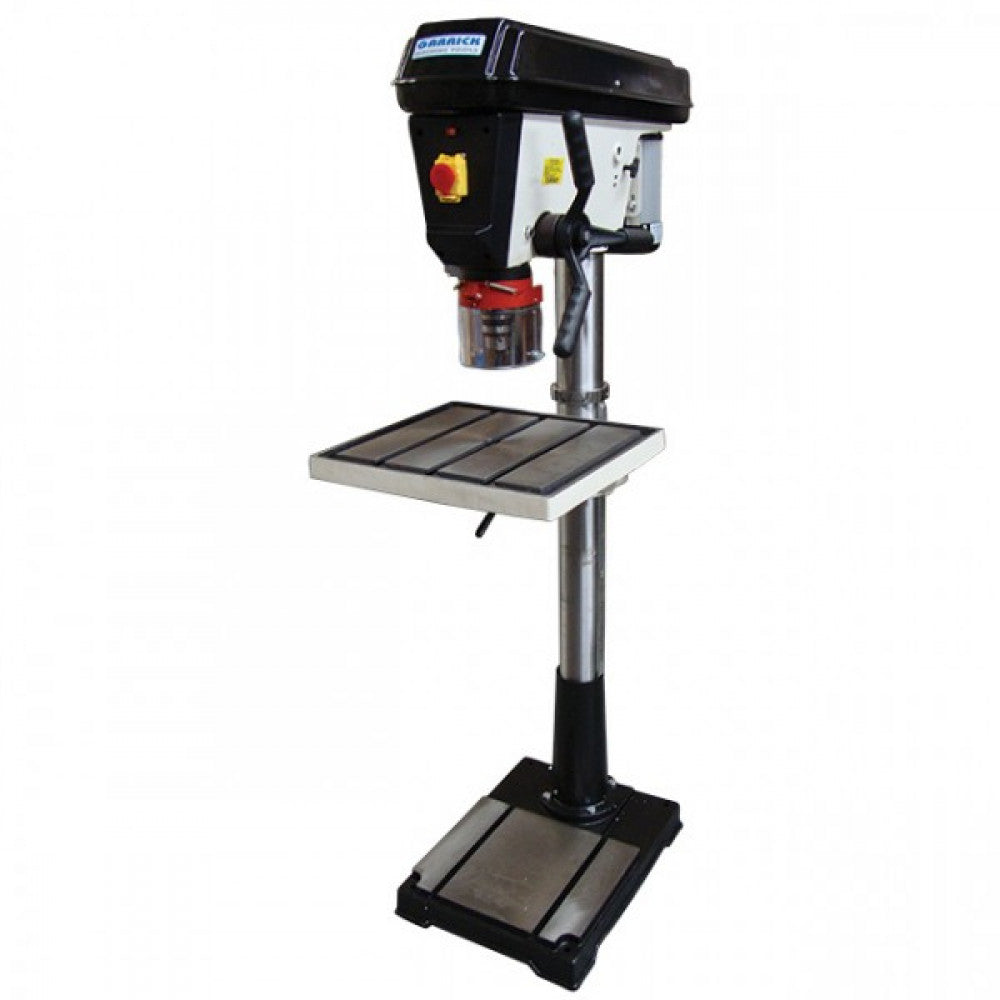

Model Dp32 - Garrick Industrial Pedestal Drill 32mm
Manufactured To A Premium Quality Standard To Suit Heavy-Duty Applications
Square Tables For Larger Work Area, With ‘T’ Slots For Solid Clamping
Tables Tilt And Rotate
Solid One Piece Cast Iron Operating Handles
Safety Guard With Flip Up Cover Over Chuck As Standard
Emergency Stop Switches
Heavy-Duty Precision Depth Stops
Quick Action, Positive Motor Adjustment For Belt Tensioning
Rack & Pinion Table Height Adjustment
Column & Quill Precision Machined From Thick Wall Tube For Rigidity
Work Light Under Head (Bulb Not Included For Transport Reasons)
Powerful 240V Aluminium Tefc Motors
Includes Drill Chuck & Arbor, Chuck Key And Drill Drift
Model Dp32
Type Pedestal
Motor 1100W
Max Drilling Capacity 32mm
Chuck Size (mm) 3 - 16
Swing (mm) 508
Spindle Taper Mt4
Spindle Travel (mm) 120
No. Of Speeds 12
Speed Range (Rpm) 150 - 2700
Overall Height (mm) 1710
Column Diameter (mm) 92
Quill Diameter 72
Table Dimensions (mm) 475 x 425 - 5/8" Table Slot
"A" Section Belts
Weight (Kg) - Nett / Gross 143 / 153
NB - This item is very heavy & will be delivered by a Transport Company, someone will need to be present to off-load!
Please also provide a contact ph number for delivery .
June/July Promo - were $2446.63 now $2116.00!
