Description

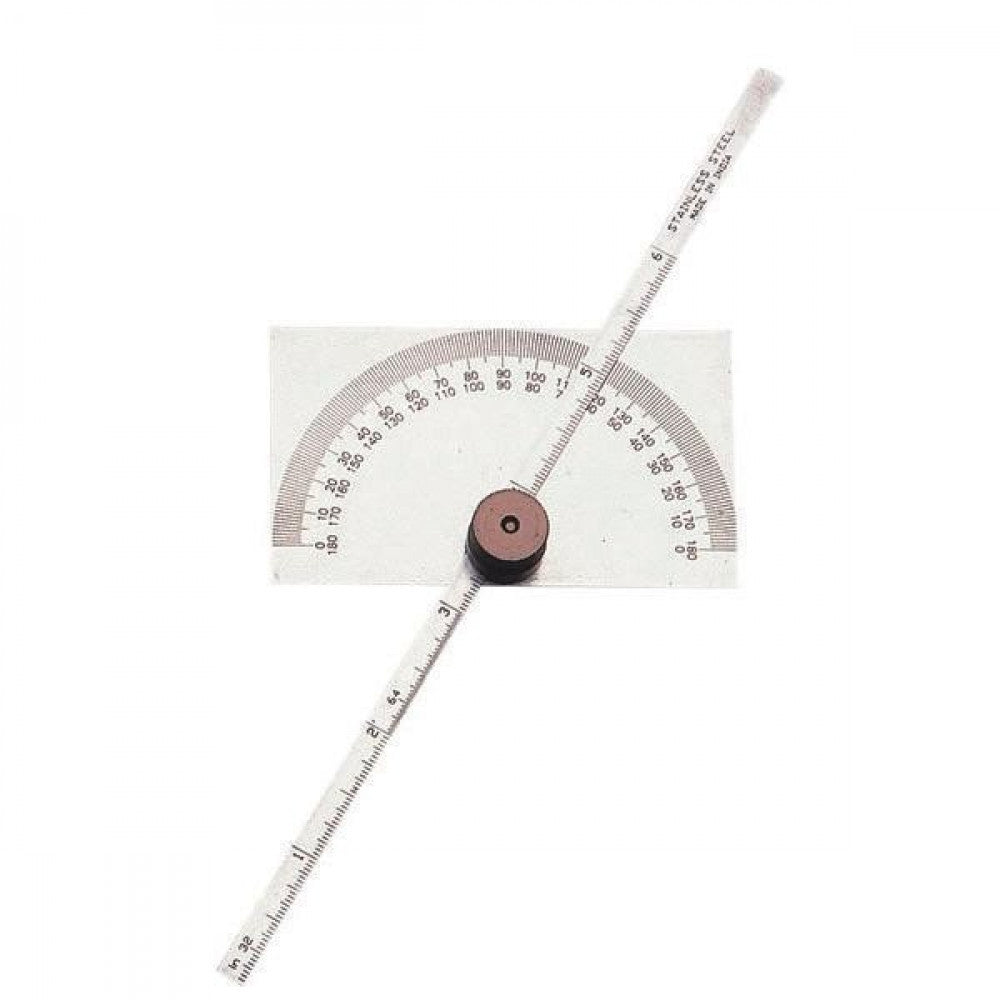

A versatile tool, the Depth Gauge with Protractor allows for measurement of both angles and depths
Manufactured from stainless steel, the protractor head has permanent deep etched graduations, 0-180 degrees in opposite directions, thus permitting reading an angle directly and also its supplement
Depths are measured by a 6" (150 mm) steel rule.
It is graduated in imperial dimensions on one side and metric on the other and can be set at any desired angle for use as a protractor and lengthwise when used as a depth gauge.
A knurled thumbnut locks the rule in the desired position
The gauge has a flat surface on the back of the head permitting laying the tool flat upon the work.
The rectangular head provides additional convenience as it incorporates 4 working edges
Angular Tolerance: ± 0.5 degrees
PDG/R/6
