Description

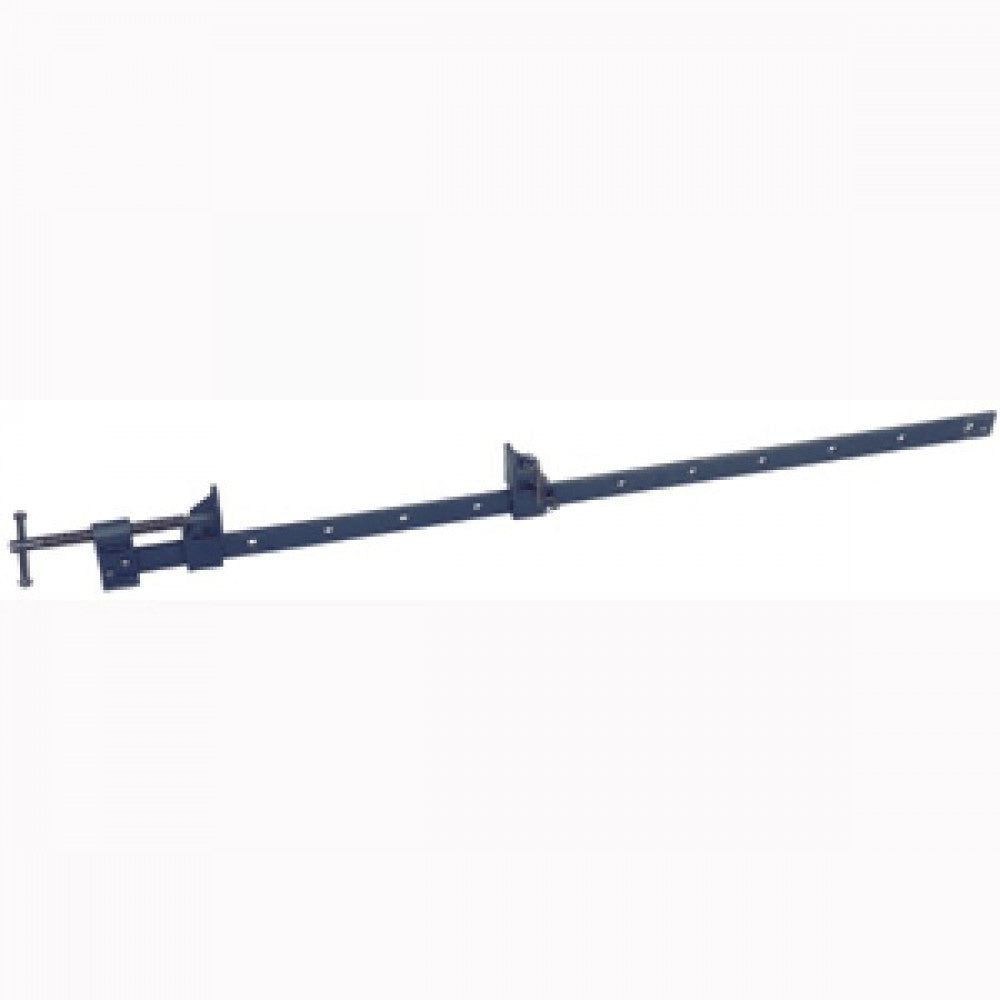

GZ39110 | Groz Sash Bar Clamp 24in (600mm) / 450mm Capacity These Bar Cramps are especially useful for clamping large section workpieces during fabrication gluing in joinery carpentry and boat building. Features: • The bars are made from drawn steel with a section of 1.1/4 x 1/4 (32 mm x 6 mm). • Malleable iron head and slides provide rigidity and strength even under heavy tension. • Both head and slide have a flat bottom allowing the bar to stand upright without support. • The head is fitted square to the bar with 1.1/2° - 2° taper for true parallel clamping action • Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion. • The screw has rolled Acme threads that impart extra strength and are wear resistant Specifications: • Throat Depth: 50mm • Width of Clamp Face: 30mm • Bar Length: 600mm • Capacity: 450mm
