Description

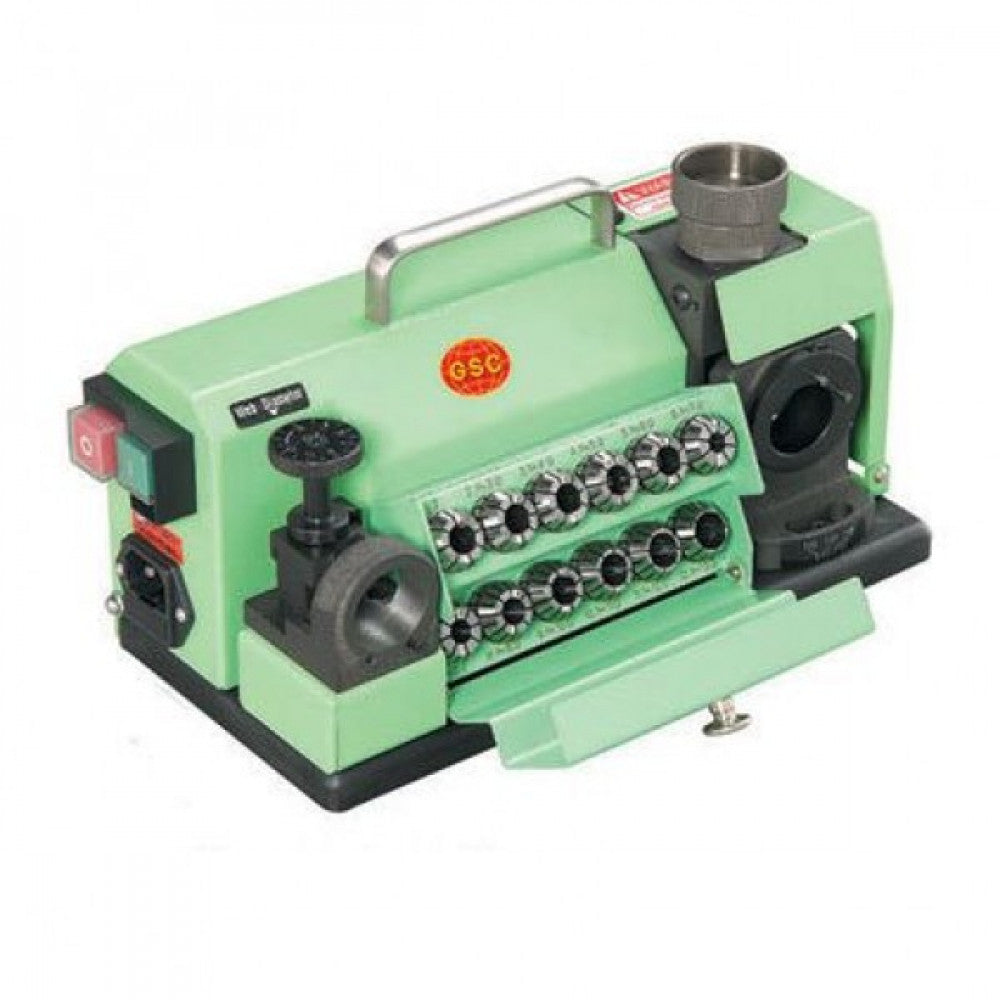

High quality, industrial grade, bench top grinder (240V) for use sharpening all those Jobber drills that would normally either be thrown out or sharpened incorrectly.
Brings drills back to factory standard.
2-13mm diameter
split pointing
adjustable point angle
replacement CBN grind wheels available.
Model GS-1
Drill Diameter to 2~13mm
Point Angle 118 to 135 degrees
R.P.M. Of Motor 5300 R.P.M.
Grinding Wheel CBN#200
Weight N.W. 7Kg / G.W. 8Kg
Machine Size L:280mm W:133mm H:155mm
Standard Accessories
Collet x 12 pcs
Collet Holder x 1 set
Metal Shim 0.1mm x 2 pcs / 0.3mm x 1 pcs
Hexagon Wrench 3mm x 1 pcs / 4mm x 1pcs
Optional SD Grinding Wheel for Carbide Drills
