Description

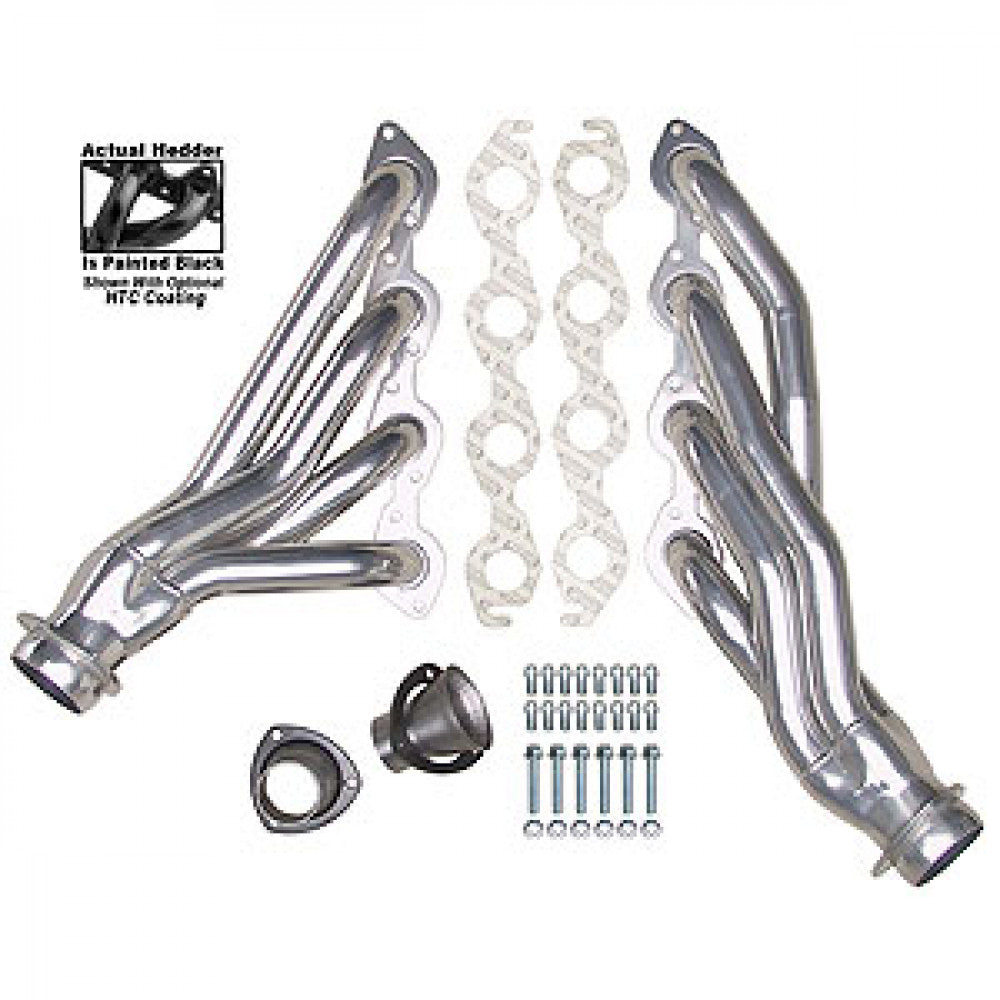

HEDMAN Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; Mid-Length Design
These MID-LENGTH headers fit Big Block Chevy V8 powered, 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with other 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style:Mid-length
Header Material:Steel
Header Color:
Temporary non-high temperature paint Weld-Up: No
Primary Tube Outside Diameter: 1 3/4"
Flange Style: Standard
Cylinder Head Port Shape: Round
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: Yes
Collector Reducer Exit Diameter:2.500"
Tuned: No
Primary Tube Gauge: 18-gauge
Flange Thickness: 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair.
Notes: For use on models without A.I.R. The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
These MID-LENGTH headers fit Big Block Chevy V8 powered, 1967-81 Chevy Camaros; 1968-1977 GM A-Body vehicles (Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. These headers are also compatible with other 1965-74 passenger cars from Chevrolet. The smooth 1-3/4 in tube design provides ample exhaust flow to let your 396-454 BB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
