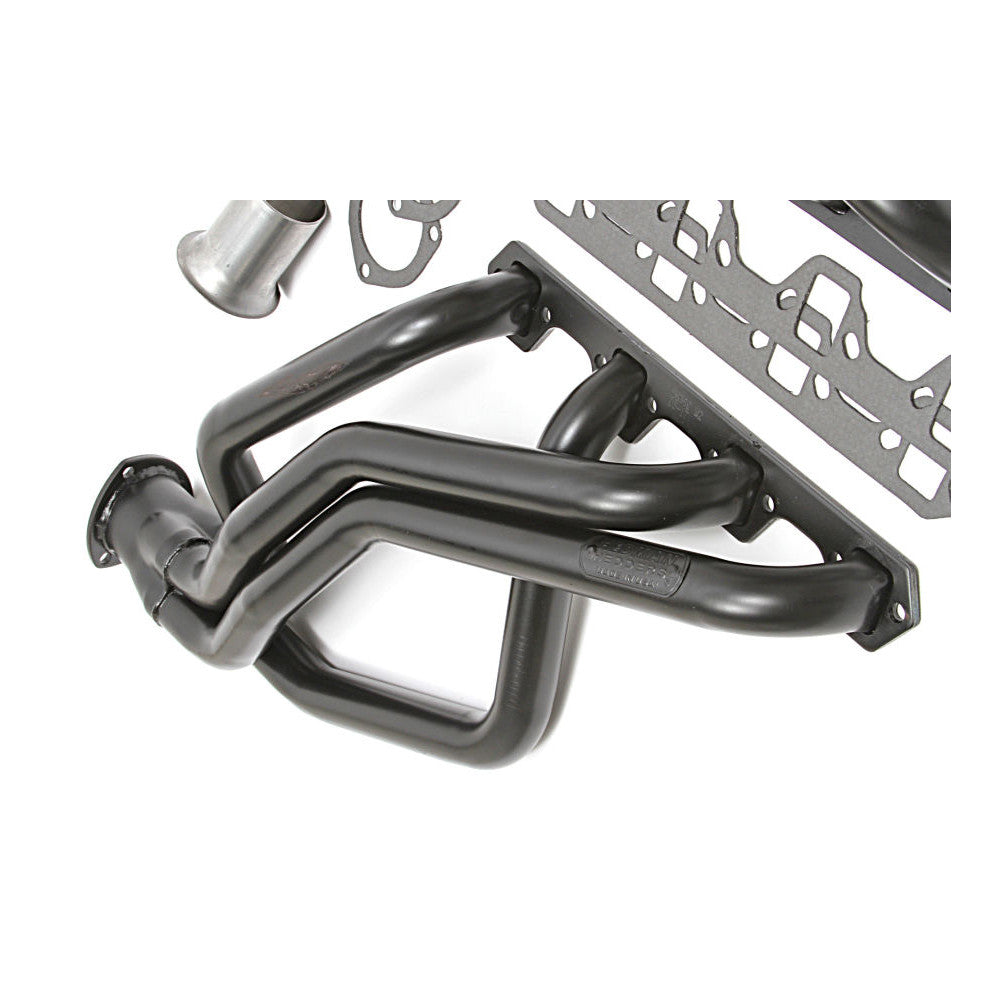

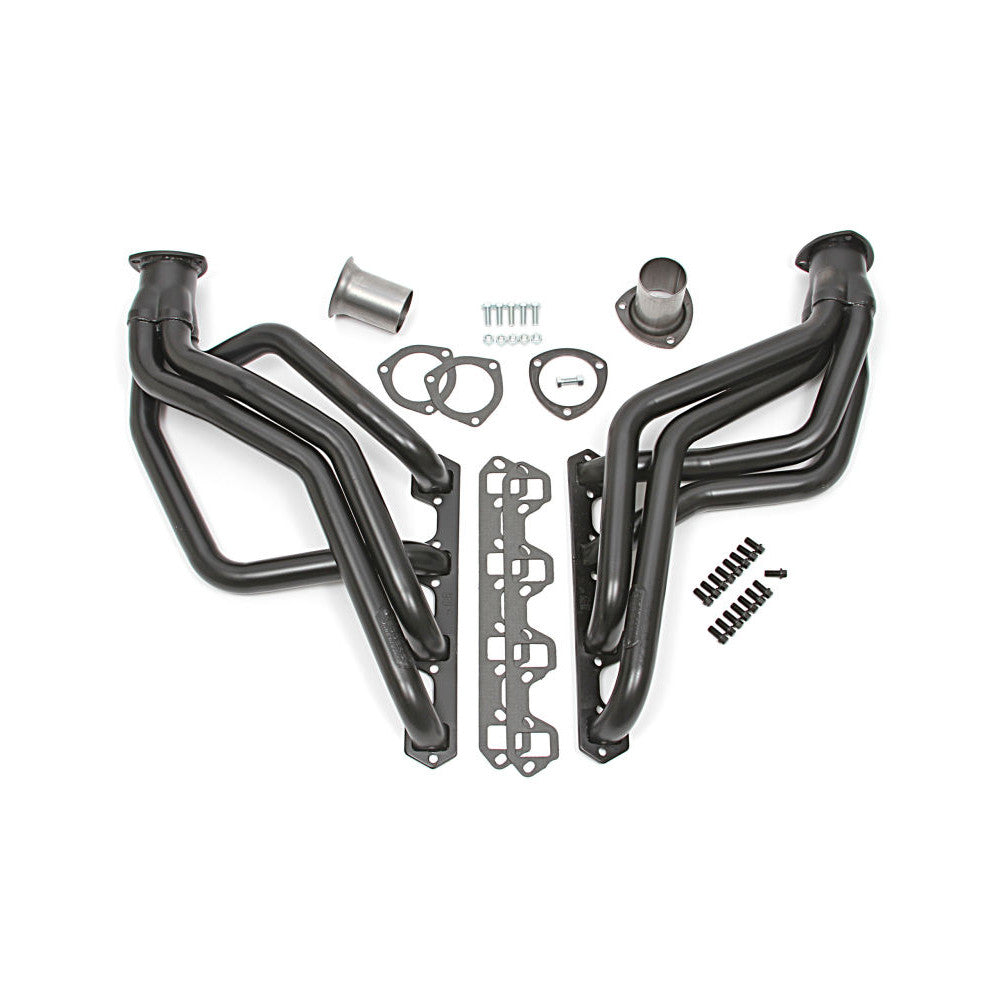

Hedman Headers Set - Ford SB Mustang 79-93 Full Length - 1 5/8"#HED88390

Hedman Standard-Duty Uncoated Headers are manufactured using 18 gauge, mandrel bent primary tubes (some models feature thicker 14 or 16 gauge tubing) and 1/4" flanges (some models have 3/8" flanges). The factory black paint applied to uncoated headers is for pre-installation protection only, not high-temp.

Specifications :

Product Type: Headers

Product Line: Hedman Street Headers

Header Style: Long tube one-piece

Header Material: Steel

Header Color: Temporary non-high temperature paint

Weld-Up: No

Primary Tube Outside Diameter: 1 5/8"

Flange Style: Standard

Cylinder Head Port Shape: Oval

Collector Attachment: 3-bolt flange

Collector Diameter: 3.00"

Collector Reducers Included: Yes

Collector Reducer Exit Diameter: 2.500"

Tuned: No

Primary Tube Gauge: 18-gauge

Spark Plug Position: Angle/Straight

Flange Thickness: 0.250"

Bolts/Studs Included: Yes

Gaskets Included: Yes

Crossover Pipe Included: No

Catalytic Converter(s) Included: No

Motor Mounts Included: No

Transmission Mount Included: No

Quantity: Sold as a pair.

Notes: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
