Description

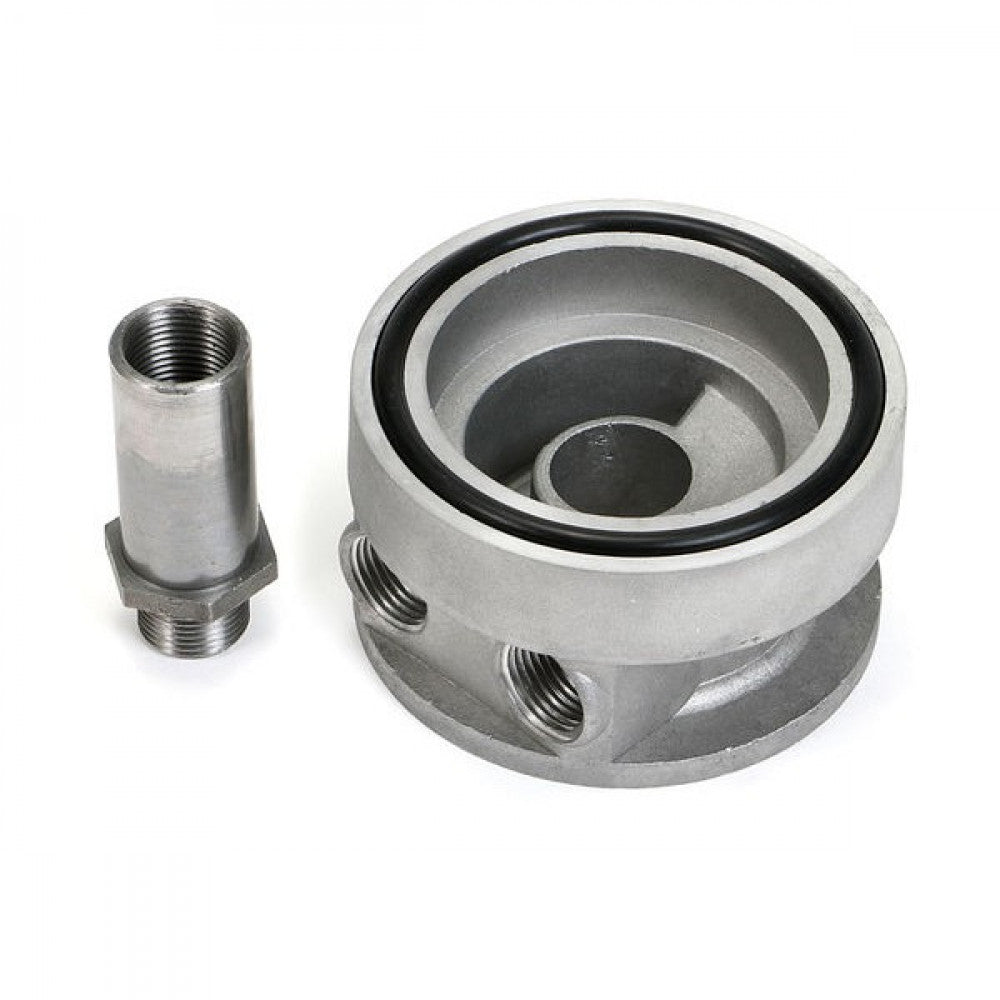

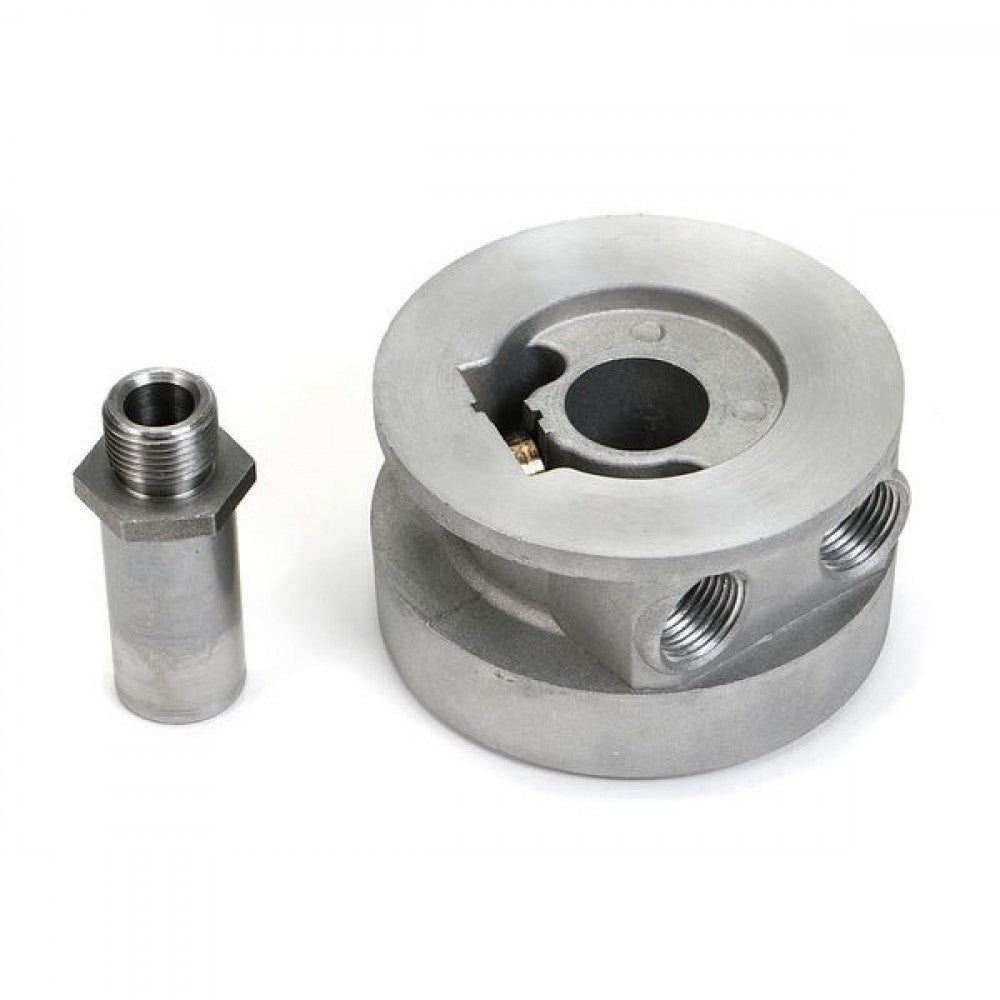

HEDMAN Oil Cooler Sandwich Adapter; 3-3/16 in. I.D. and 3-7/16 in. O.D. Filter Flange; 13/16 in.-16 Thread Size
Specifications :
Product Details: Fits Engines Using Oil Filters with A 13/16”-16 Thread And 3-5/16” Diameter O-Ring.
Vehicle Oil Filter Nipple Size: 13/16"-16
Vehicle Oil Filter Flange ID: 3-3/16"
Vehicle Oil Filter Flange OD: 3-7/16"
Port Size: 1/2" NPT
Materials: Cast Aluminium
Material Cast: Aluminium
Thickness: 2-1/4”
Package Contents: Adapter and Nipple
Fitting Thread: 1/2" NPT
Replacement O-Ring: -338 Buna-N 70 O-Ring (Not Available Through HPG)
Installation Notes: Intended for Use with External Oil Coolers Only.
Notes:
Oil Cooler Sandwich Adapter; 3-3/16 In. I.D. And 3-7/16 In. O.D. Filter Flange; 13/16 In.-16 Thread Size
Not For Diesel, Marine or Race Use.
Specifications :
Product Details: Fits Engines Using Oil Filters with A 13/16”-16 Thread And 3-5/16” Diameter O-Ring.
Vehicle Oil Filter Nipple Size: 13/16"-16
Vehicle Oil Filter Flange ID: 3-3/16"
Vehicle Oil Filter Flange OD: 3-7/16"
Port Size: 1/2" NPT
Materials: Cast Aluminium
Material Cast: Aluminium
Thickness: 2-1/4”
Package Contents: Adapter and Nipple
Fitting Thread: 1/2" NPT
Replacement O-Ring: -338 Buna-N 70 O-Ring (Not Available Through HPG)
Installation Notes: Intended for Use with External Oil Coolers Only.
Notes:
Oil Cooler Sandwich Adapter; 3-3/16 In. I.D. And 3-7/16 In. O.D. Filter Flange; 13/16 In.-16 Thread Size
Not For Diesel, Marine or Race Use.
