Description

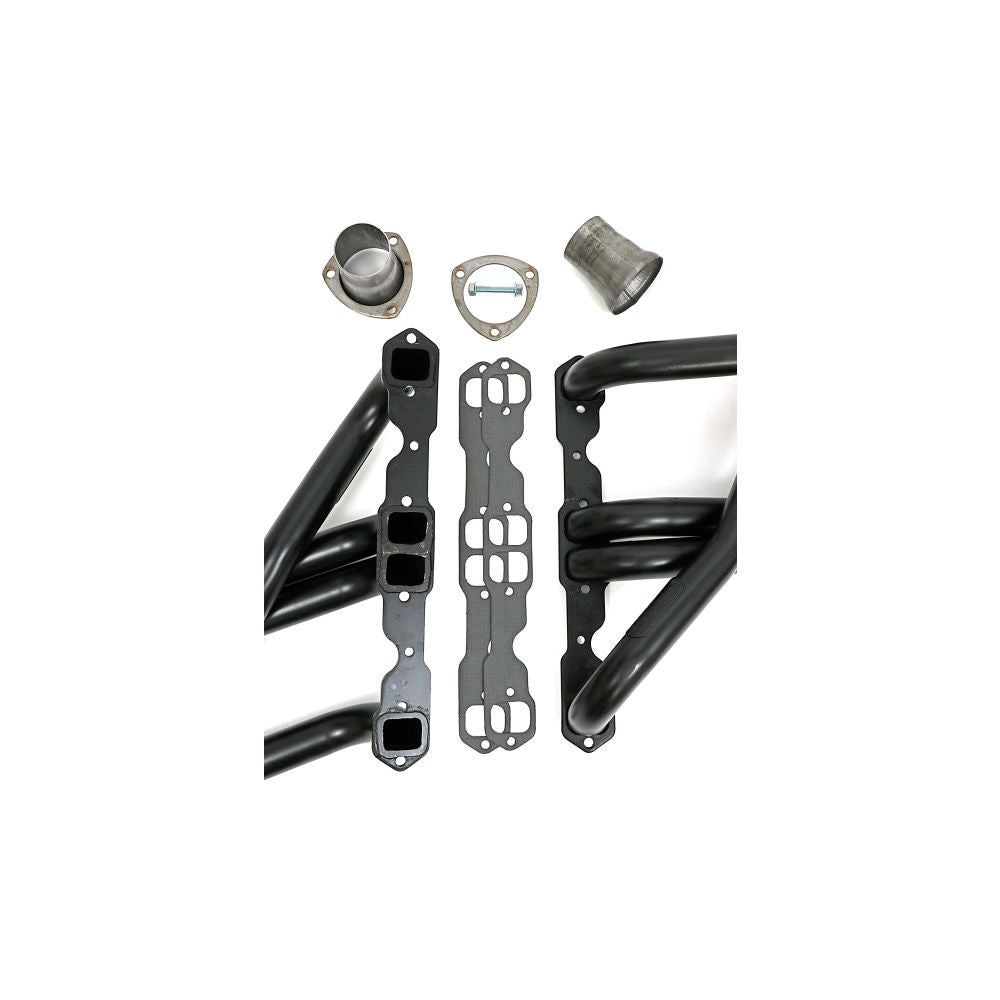

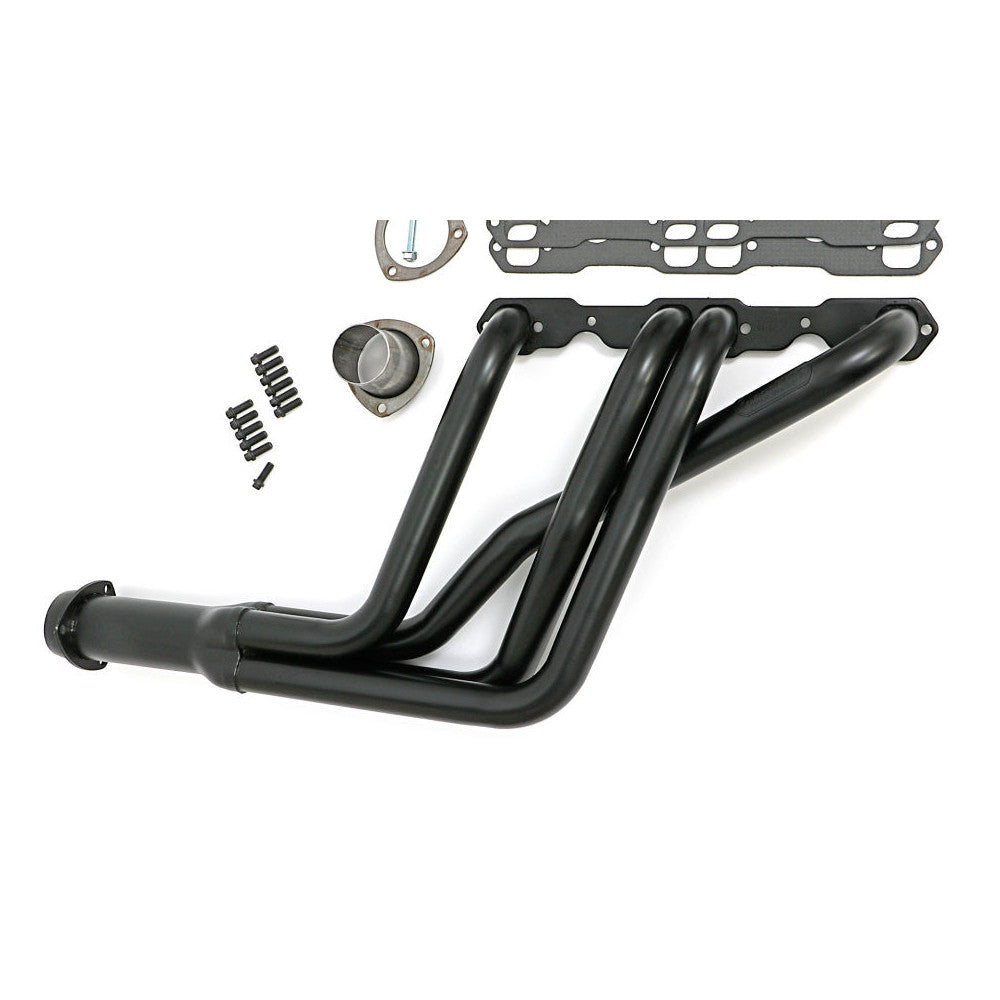

HEDMAN Standard Uncoated Headers; 1-3/4" Tube Diameter; 3" Coll.; FULL LENGTH Design
Features :
Will not fit Saginaw close ratio power steering with 825 power steering box.
Will fit with angle plug heads. (Chevy aluminum only.)
Tube Direction - Down Swept
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style: Long tube one-piece
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 3/4"
Flange Style: Standard
Cylinder Head Port Shape: Rectangular
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: No
Tuned: No
Primary Tube Gauge: 18-gauge
Spark Plug Position: Angle/Straight
Flange Thickness: 0.313"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a pair.
Notes: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
