Description

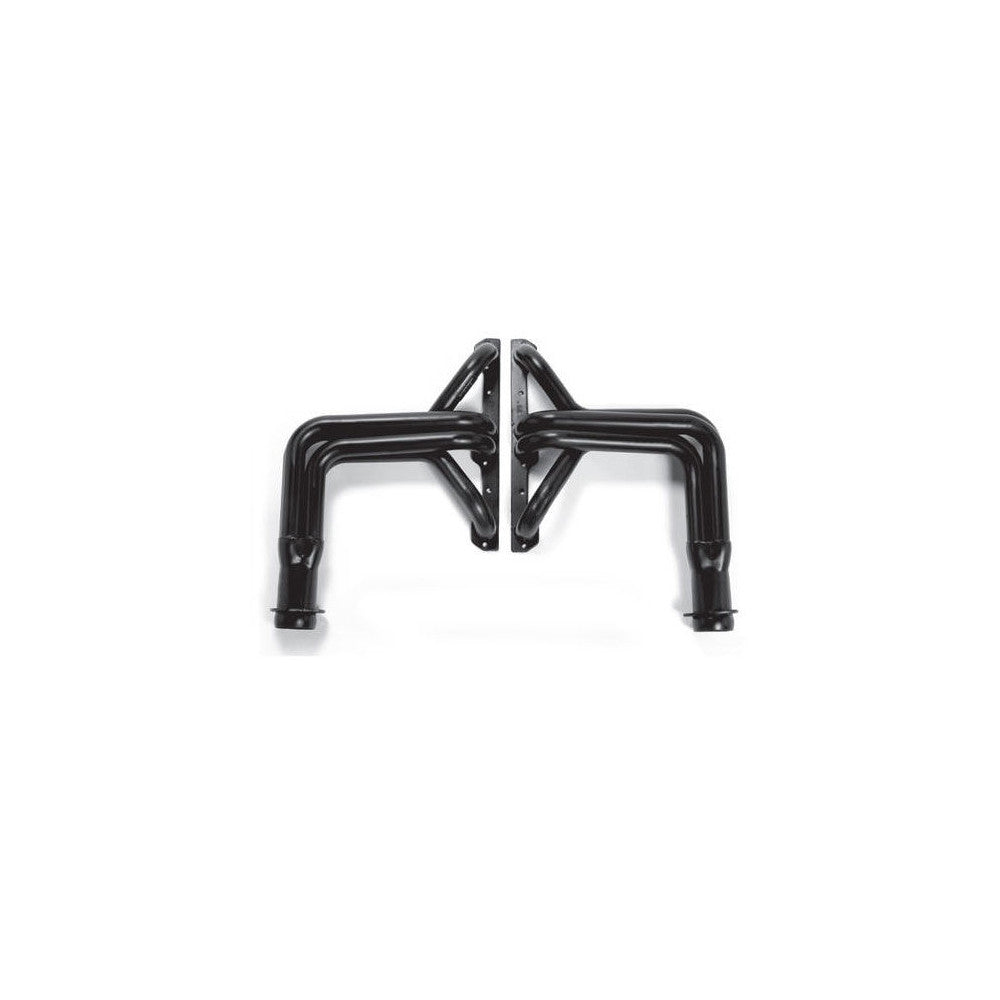

HEDMAN Standard Uncoated Headers; 1-5/8" Tube Diameter.; 3" Coll.; FULL LENGTH Design
Features GM Cars:
A/C equipped vehicles require bracket #500-20110 (Large piston compressor)
Will not fit with steering damper inside front crossmember
Will fit angle plug heads (Chevy aluminum heads only)
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style: Long tube one-piece
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 5/8"
Flange Style: Standard
Cylinder Head Port Shape: Round
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 18-gauge
Spark Plug Position: Angle/Straight
Flange Thickness: 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a Set
Notes: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
Features GM Cars:
A/C equipped vehicles require bracket #500-20110 (Large piston compressor)
Will not fit with steering damper inside front crossmember
Will fit angle plug heads (Chevy aluminum heads only)
Specifications :
Product Type: Headers
Product Line: Hedman Street Headers
Header Style: Long tube one-piece
Header Material: Steel
Header Color: Temporary non-high temperature paint
Weld-Up: No
Primary Tube Outside Diameter: 1 5/8"
Flange Style: Standard
Cylinder Head Port Shape: Round
Collector Attachment: Ball and socket flange
Collector Diameter: 3.00"
Collector Reducers Included: Yes
Collector Reducer Exit Diameter: 2.500"
Tuned: No
Primary Tube Gauge: 18-gauge
Spark Plug Position: Angle/Straight
Flange Thickness: 0.250"
Bolts/Studs Included: Yes
Gaskets Included: Yes
Crossover Pipe Included: No
Catalytic Converter(s) Included: No
Motor Mounts Included: No
Transmission Mount Included: No
Quantity: Sold as a Set
Notes: The paint applied to these headers is a temporary coating only and is designed to burn off during use. High temperature paint or other high temperature coatings are recommended.
