Description

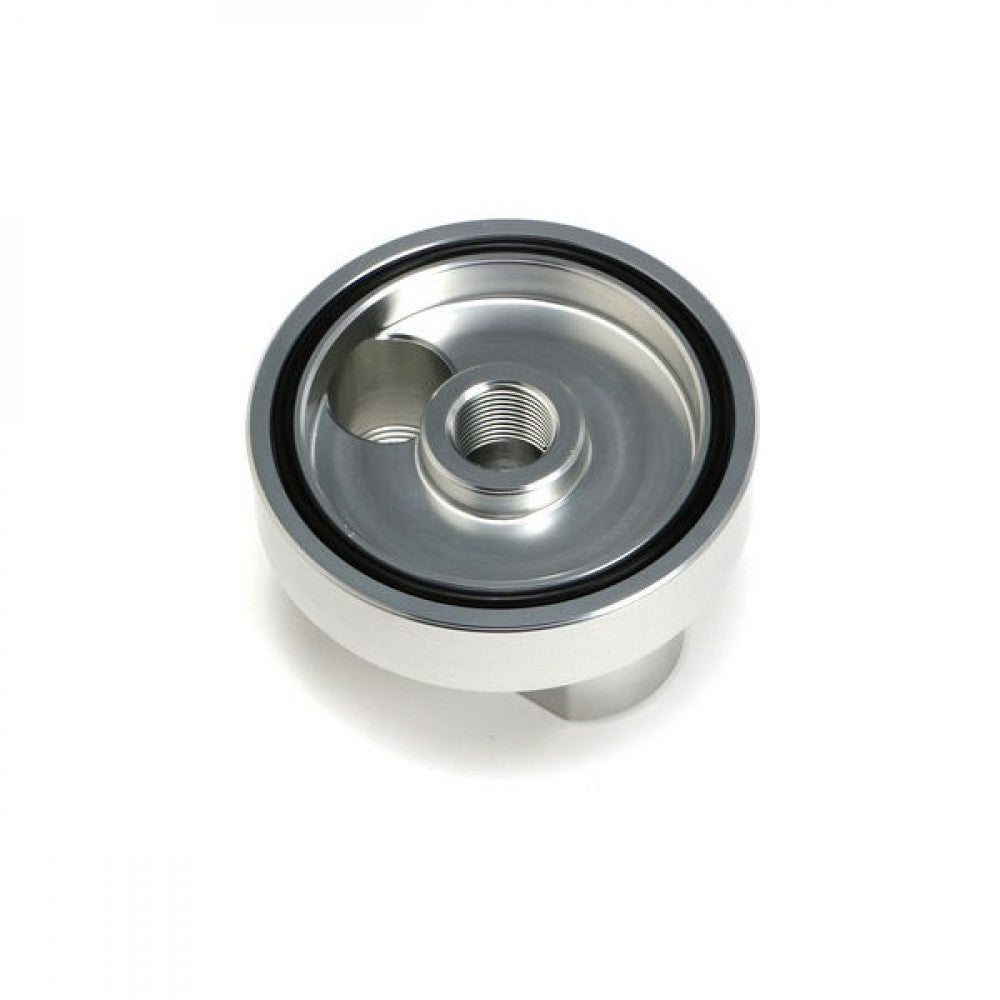

HEDMAN SPIN-ON Bypass Adapter; CHEVY SB and BB; 13/16 in.-16 Filter Threads; -12AN Ports- Billet Aluminum
Specifications :
DESCRIPTION: CHEVY SB & BB with 13/16"-16 Filter Threads
FILTER BYPASS STYLE: Standard Port Filter Bypass
FILTER NIPPLE THREAD SIZE: 13/16"-16
VEHICLE OIL FILTER NIPPLE SIZE: 13/16"-16
VEHICLE OIL FILTER FLANGE ID: 3-3/16"
VEHICLE OIL FILTER FLANGE OD: 3-7/16"
FINISH: Clear Anodized
FINISH TYPE: Clear Anodized
O-RING DIMENSIONS: 3-3/16" I.D., 3-7/16 " O.D.
PORT SIZE: -12AN (ORB O-Ring Boss style) Inlet and Outlet Ports
MATERIALS: CLEAR anodized, billet T-6061 Aircraft aluminum. MADE IN THE USA!
ADDITIONAL DETAILS: Fits Chevy SB and BB engines with 13/16 in.-16 threads
MATERIAL: Billet Aluminum
BYPASS MOUNTING STYLE: Spin-On
PACKAGE CONTENTS: Adapter and Nipple
FITTING THREAD: -12 AN (ORB O-ring boss)
MOUNT MATERIAL: Billet Aluminum
NOTES: SPIN-ON Bypass Adapter; CHEVY SB and BB; 13/16 in.-16 Filter Threads; -12AN Ports- Billet Aluminum
Specifications :
DESCRIPTION: CHEVY SB & BB with 13/16"-16 Filter Threads
FILTER BYPASS STYLE: Standard Port Filter Bypass
FILTER NIPPLE THREAD SIZE: 13/16"-16
VEHICLE OIL FILTER NIPPLE SIZE: 13/16"-16
VEHICLE OIL FILTER FLANGE ID: 3-3/16"
VEHICLE OIL FILTER FLANGE OD: 3-7/16"
FINISH: Clear Anodized
FINISH TYPE: Clear Anodized
O-RING DIMENSIONS: 3-3/16" I.D., 3-7/16 " O.D.
PORT SIZE: -12AN (ORB O-Ring Boss style) Inlet and Outlet Ports
MATERIALS: CLEAR anodized, billet T-6061 Aircraft aluminum. MADE IN THE USA!
ADDITIONAL DETAILS: Fits Chevy SB and BB engines with 13/16 in.-16 threads
MATERIAL: Billet Aluminum
BYPASS MOUNTING STYLE: Spin-On
PACKAGE CONTENTS: Adapter and Nipple
FITTING THREAD: -12 AN (ORB O-ring boss)
MOUNT MATERIAL: Billet Aluminum
NOTES: SPIN-ON Bypass Adapter; CHEVY SB and BB; 13/16 in.-16 Filter Threads; -12AN Ports- Billet Aluminum
