Description

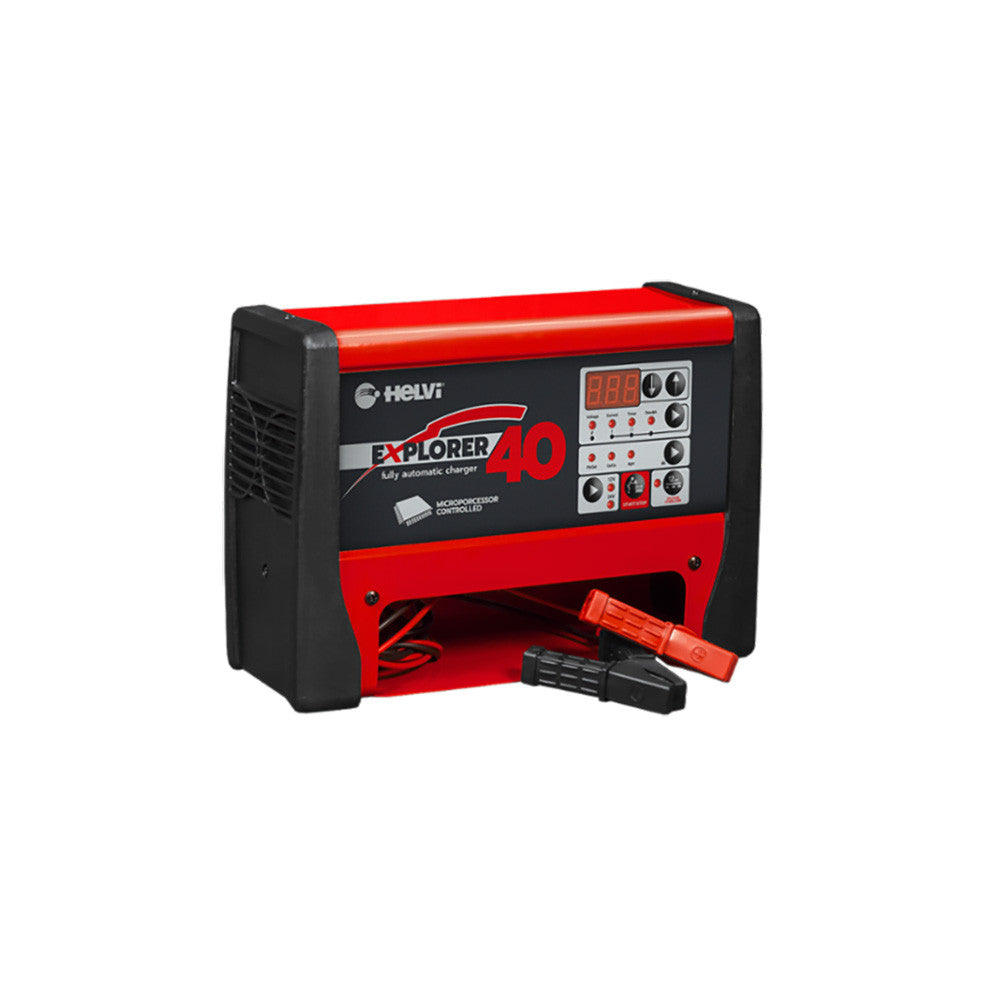

Battery Charger, Explorer 40, 12/24v, 230v - Helvi - #99000081
New generation of battery chargers with inverter technology
Equipped with charge current selector, digital ammeter and voltmeter, thermal overload protection, protection against short circuits and polarity reversal, charge timer
Battery charge voltage and alternator testor
The charge function is carried out without output voltage peaks which could damage the electronic cards fitted on motor vehicles
EXPLORER range thanks to its specific software is ideal for charging the AGM, gel, calcium and lead batteries with which modern vehicles are equipped
Three different charging mode available:
Manual: It allows to select battery voltage (12 or 24V), type of battery to charge, maximum charging current, maximum charging time, desulphation phase
Automatic charge from saved parameters: The user has the possibility to store his ideal charging setting and recall them automatically
Automatic mode: The charge will be completely automatic once the user press the START button
Equipped with a 12V voltage stabiliser function with a maximum output current of 10 amp
This function is required to keep supplied the electronics on board during the following operations: A) change of battery on a vehicle or B) vehicle with motor switch OFF but needs to keep electronics working (i.e. show room display)
Specifications:
Input voltage: 1-Ph., 230V 50/60Hz
Power: 600W
Battery voltage: 12/24V
Amp. 60335-2-29: 40/20A
Rated ref. capacity: 600Ah 15h
Charging position:
Dimensions (mm): L-315 x W-115 x H-225
Net weight: 3.7kgs.
New generation of battery chargers with inverter technology
Equipped with charge current selector, digital ammeter and voltmeter, thermal overload protection, protection against short circuits and polarity reversal, charge timer
Battery charge voltage and alternator testor
The charge function is carried out without output voltage peaks which could damage the electronic cards fitted on motor vehicles
EXPLORER range thanks to its specific software is ideal for charging the AGM, gel, calcium and lead batteries with which modern vehicles are equipped
Three different charging mode available:
Manual: It allows to select battery voltage (12 or 24V), type of battery to charge, maximum charging current, maximum charging time, desulphation phase
Automatic charge from saved parameters: The user has the possibility to store his ideal charging setting and recall them automatically
Automatic mode: The charge will be completely automatic once the user press the START button
Equipped with a 12V voltage stabiliser function with a maximum output current of 10 amp
This function is required to keep supplied the electronics on board during the following operations: A) change of battery on a vehicle or B) vehicle with motor switch OFF but needs to keep electronics working (i.e. show room display)
Specifications:
Input voltage: 1-Ph., 230V 50/60Hz
Power: 600W
Battery voltage: 12/24V
Amp. 60335-2-29: 40/20A
Rated ref. capacity: 600Ah 15h
Charging position:
Dimensions (mm): L-315 x W-115 x H-225
Net weight: 3.7kgs.
