Description

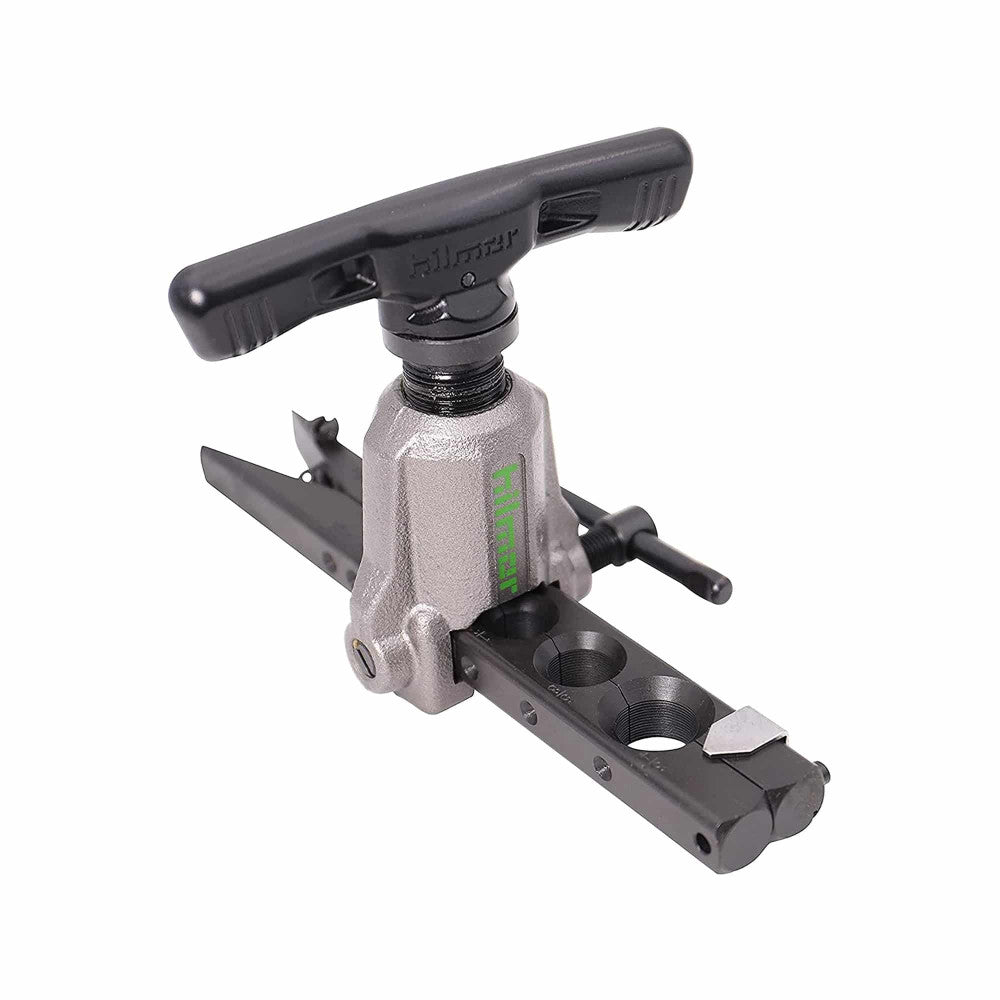

The Hilmor Orbital Flare was designed to produce quality flares – again and again. It has an off-centre mounted cone that spins on an axis to make sure it uniformly shapes the tube. Plus, it’s equipped with the kind of features you need – a spring-loaded block to firmly grip the tube, a tube-stop arrow for precise height and positioning (goodbye, nickel), and ball detents for easy flaring yoke alignment. It even has a clutch mechanism that stops the flaring when the job is done to eliminate cracking the tube.
FEATURES:
Precise Flares, Every Time: An off-centre mounted cone spins on an axis to effectively produce quality flares
No Cracked Tubes: A clutch mechanism stops the flaring when the job is done
Simple Setup: A clothespin-inspired, spring-loaded block grips the tube securely
Easy to Position: A tube-stop arrow slides to set correct height and positioning, while ball detents allow for easy flaring cone alignment.
INCLUDES:
1 x Orbital flare.
SPECIFICATIONS:
Item Number: 1838952
Product Description: FTO
Tube Sizes (O.D.): 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
Weight: 3.75 lbs.
Product Dimensions: Length: 8.5", Width: 4.6", Height: 5.3"
Tube Materials: Soft - Copper, Steel, Aluminum, Brass
Flare Type: 45°
