Description

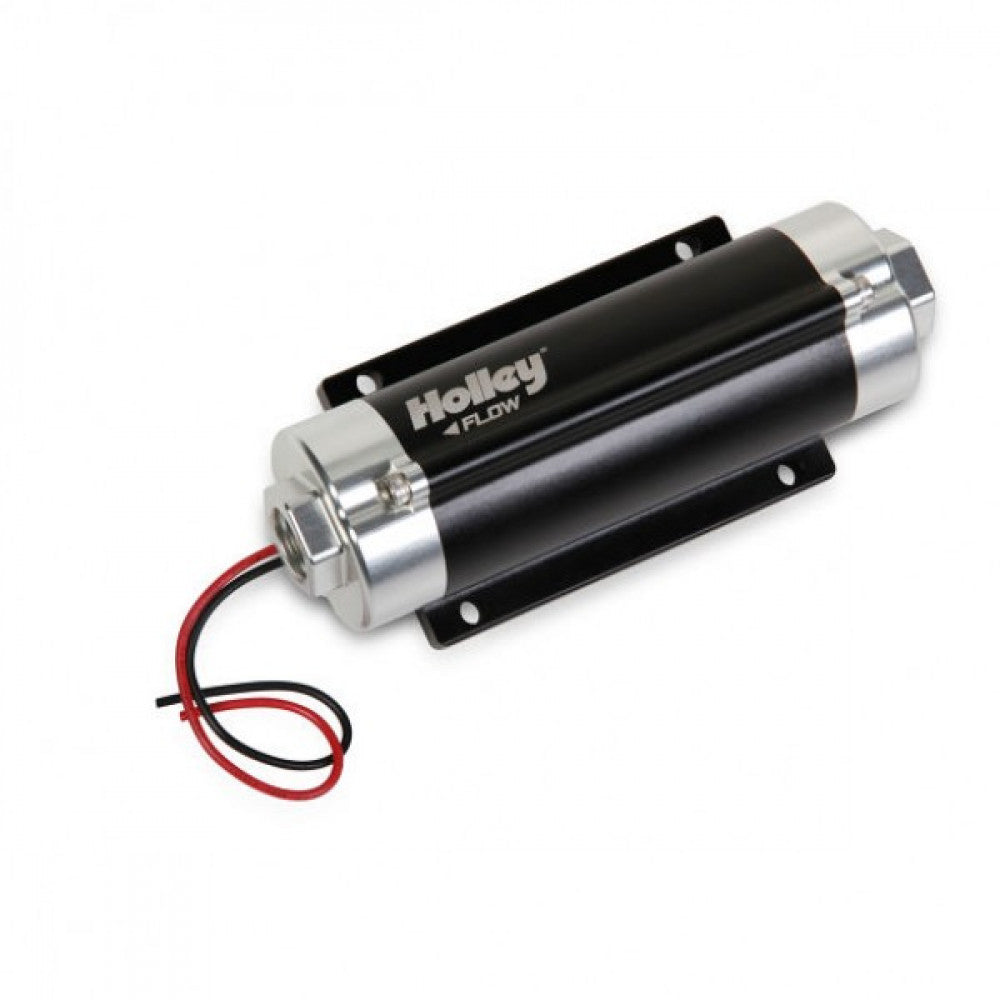

Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package.
The 12-600 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-890 fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Features:
Billet aluminum construction for durability & good looks
-10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline
Weighs only 3.1 lbs.
10 AMP maximum amp draw
Not designed for use on aircraft of any type.
Specifications :
Application: Universal
Emission Code: 5
Forced Induction: HP@43PSI 450
Forced Induction: HP@60PSI 380
Free Flow :GPH 67
Fuel System: Carbureted EFI
Fuel Type: Gasoline
GPH@43PSI: 48
GPH@60PSI: 41
GPH@8PSI: 65
Inlet Size: 10 AN O-Ring - 7/8-14 SAE
LPH@43PSI: 181
LPH@60PSI: 155
LPH@8PSI: 230
Material: Aluminum
Naturally Aspirated HP@43PSI: 600
Naturally Aspirated HP@60PSI: 500
Naturally Aspirated HP@8PSI: 730
Outlet Size: 8 AN O-Ring - 3/4-16 SAE
Product Type: Fuel Pump
Pump Body Color: Black Anodized
The 12-600 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-890 fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Features:
Billet aluminum construction for durability & good looks
-10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
Excellent for use with carbureted or EFI applications
Fully submersible in-tank for custom applications, space savings and less plumbing
Compatible with 12v to 18.5v systems for street or race use
Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
Proven durability beyond 3,000 hours in gasoline
Weighs only 3.1 lbs.
10 AMP maximum amp draw
Not designed for use on aircraft of any type.
Specifications :
Application: Universal
Emission Code: 5
Forced Induction: HP@43PSI 450
Forced Induction: HP@60PSI 380
Free Flow :GPH 67
Fuel System: Carbureted EFI
Fuel Type: Gasoline
GPH@43PSI: 48
GPH@60PSI: 41
GPH@8PSI: 65
Inlet Size: 10 AN O-Ring - 7/8-14 SAE
LPH@43PSI: 181
LPH@60PSI: 155
LPH@8PSI: 230
Material: Aluminum
Naturally Aspirated HP@43PSI: 600
Naturally Aspirated HP@60PSI: 500
Naturally Aspirated HP@8PSI: 730
Outlet Size: 8 AN O-Ring - 3/4-16 SAE
Product Type: Fuel Pump
Pump Body Color: Black Anodized
