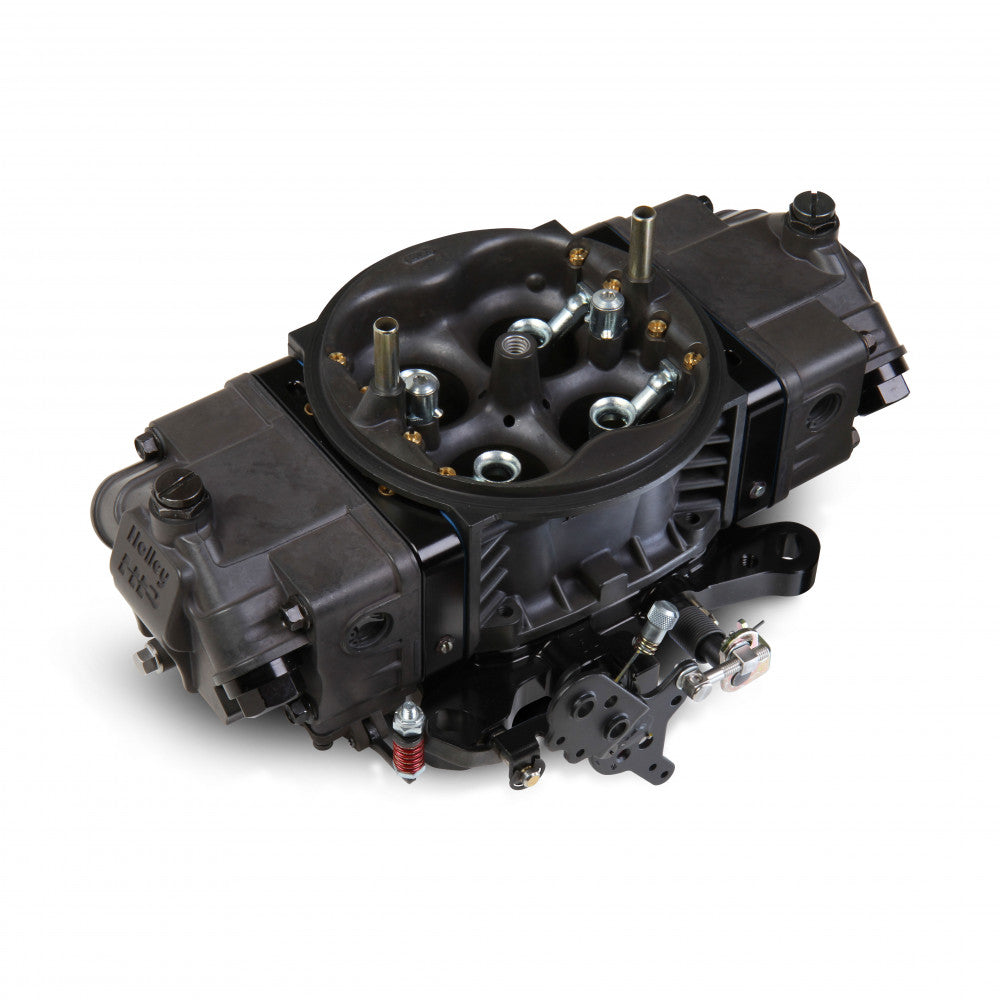

HOLLEY 650CFM ULTRA XP CARBURETOR #0-80802HBX

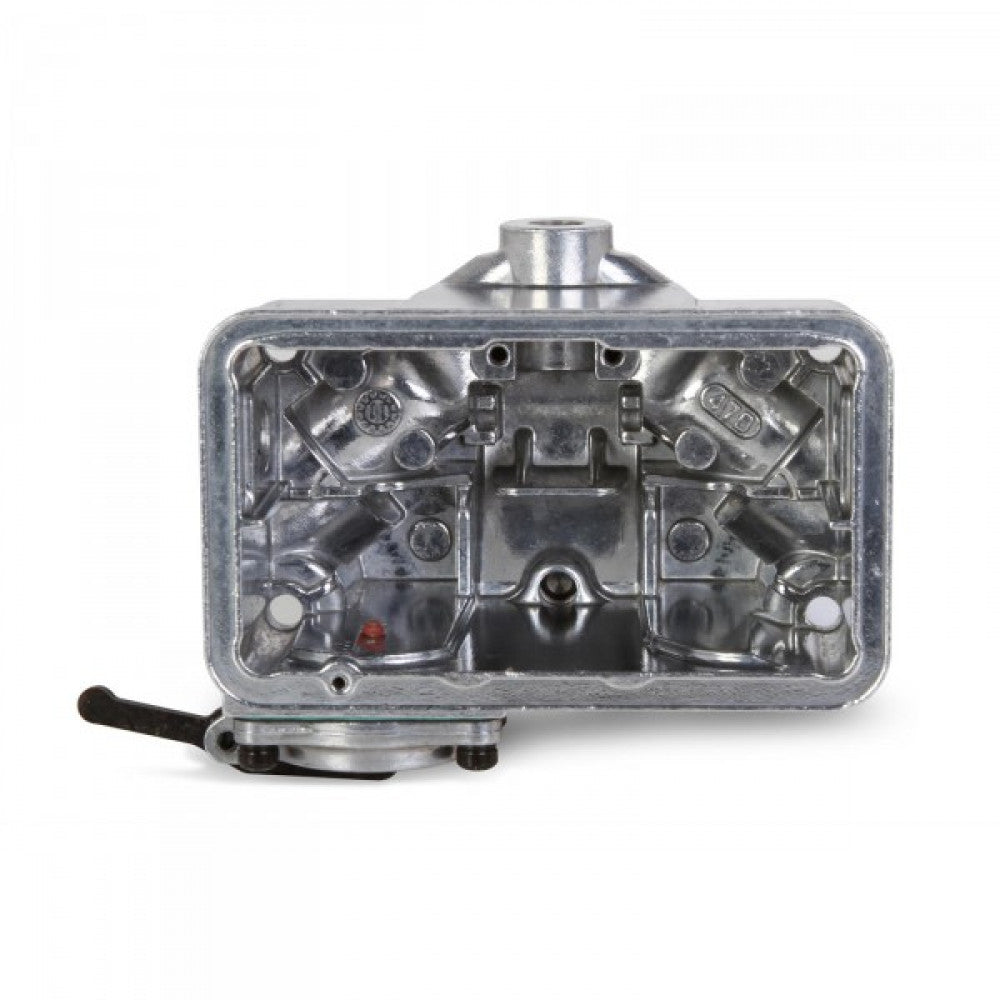

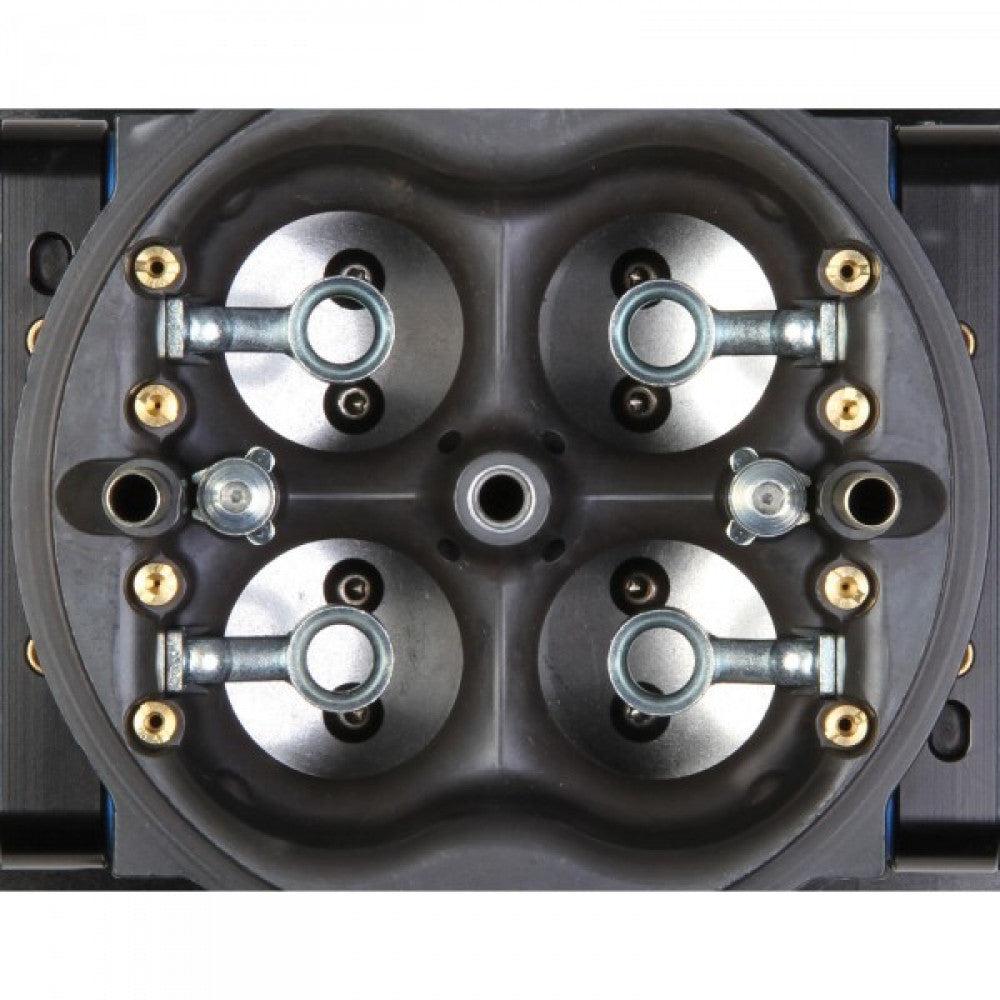

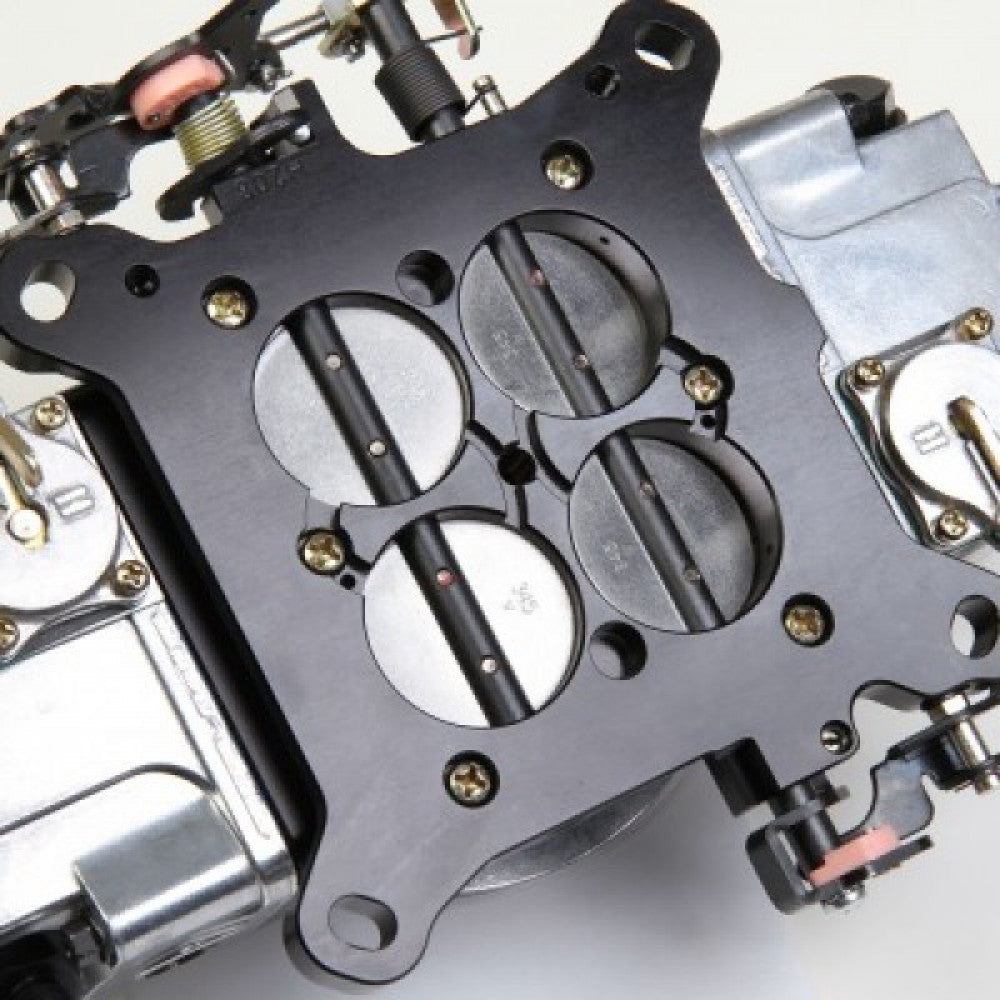

Xtreme Performance - Holley Ultra XP™ carburetors! Ultra XP carbs are up to 38% lighter than our traditional race carbs, have fuel capacity that is 20% greater and 30 other new features! They're available in our all-new Hard Core Gray™ hard coat anodized finish with Black™ billet for improved corrosion protection. They're also available in natural tumble-polished aluminum with your choice of Black™ or Red™ metering blocks and base plate. The Aluminum Ultra XP comes in 600, 650, 750, 850, and True 950-CFM. Holley Ultra XP carburetors offer new features such as an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship, high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!

Barrels 4
Billet Color Hard Core Gray with Black
Booster Down Leg
Brand Holley
CFM 650
Choke None
Circuit 2
Condition New
Emission Code 3
Finish Hard Core Gray
Fuel Gasoline
Fuel Inlet Dual
Marine Use No
Material Aluminum
Model 4150
Primary Main Jet 70
Primary Power Valve 6.5
Primary Pump Nozzle Size 32
Product Type Ultra XP Carburetor
Secondaries Mechanical
Secondary Main Jet 70
Secondary Pump Nozzle Size 32
Supercharged Application No
Throttle Bore 1.688 inch
Venturii Size 1.250 inch
