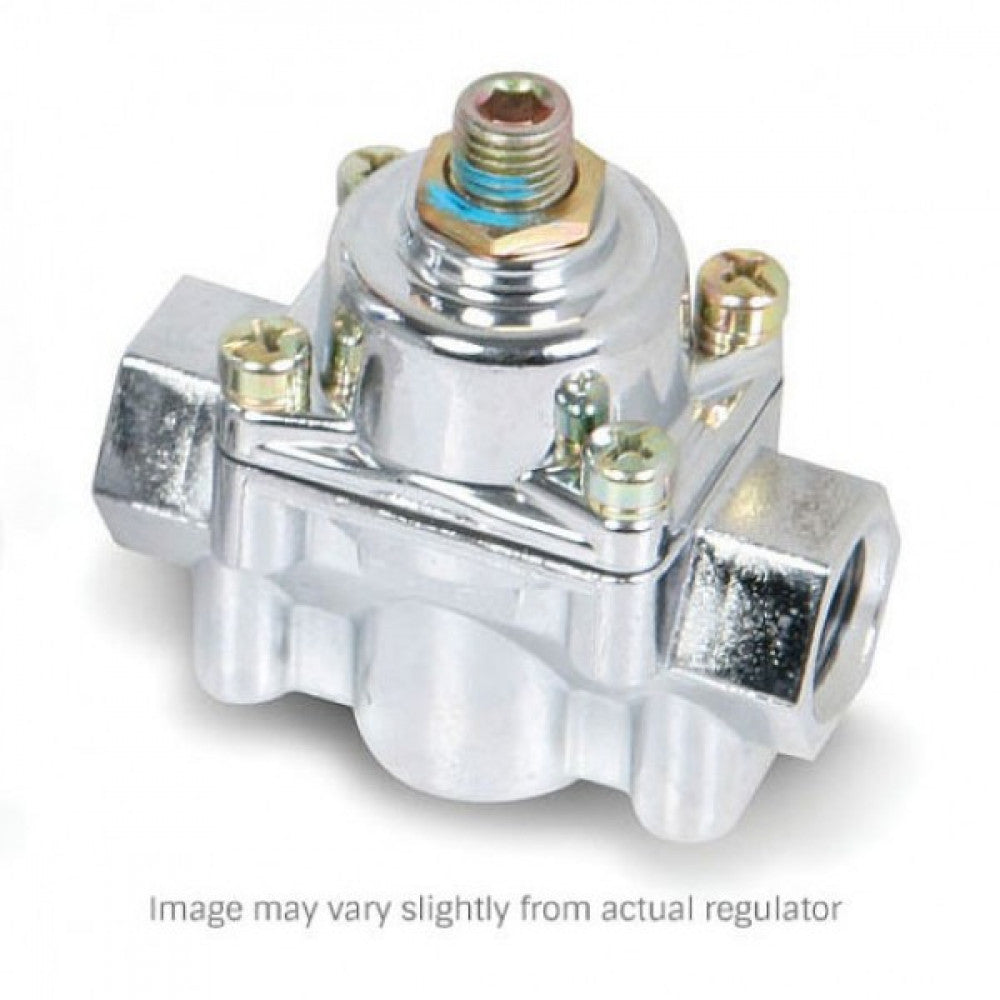

HOLLEY CHROME CARBURETED FUEL PRESSURE REGULATOR #12-804

Holley fuel pressure regulators are designed to precisely control the fuel pressure from the fuel pump to the carburetor. Too much fuel pressure for a given needle and seat assembly can overload the needle and seat and may cause flooding or drivability problems. Each Holley fuel pressure regulator is fully adjustable so regulating the fuel pressure to your engines needs is a simple task. All Holley regulators are pre-set at the factory at 2.8 PSI so there is no guesswork when first installing the regulator. The Holley 12-804 fuel pressure regulator features 3/8" NPT in/out ports. ***The inlet pressure limitation is 7 psi.
Features:
Adjustable fuel regulation from 1 to 4 psi
.220" (7/32") restriction
3/8" NPT ports ( 1 in, 2 out)
Chrome finish
Mounting bracket included
Pre-set at 2.8 PSI

Specifications :

Part Type: Fuel Pressure Regulators

Product Line: Holley Fuel Pressure Regulators

Pressure Range (psi): 1-4 psi

Regulator Style: Non-return

Regulator Location: Inline

Boost/Vacuum Reference Port: No

Gauge Port: No

Inlet Quantity: 1

Regulator Inlet Size: 3/8" NPT

Inlet Attachment: Female threads

Outlet Quantity: 2

Regulator Outlet Size: 3/8" NPT

Outlet Attachment: Female threads

Return Fitting Size: 3/8" NPT

Fittings Included: No

Regulator Material: Aluminum

Regulator Finish: Chrome plated

Rebuildable: Yes

Mounting Bracket Included: Yes

Quantity: Sold Each

Notes: Maximum inlet pressure is 7 psi.
