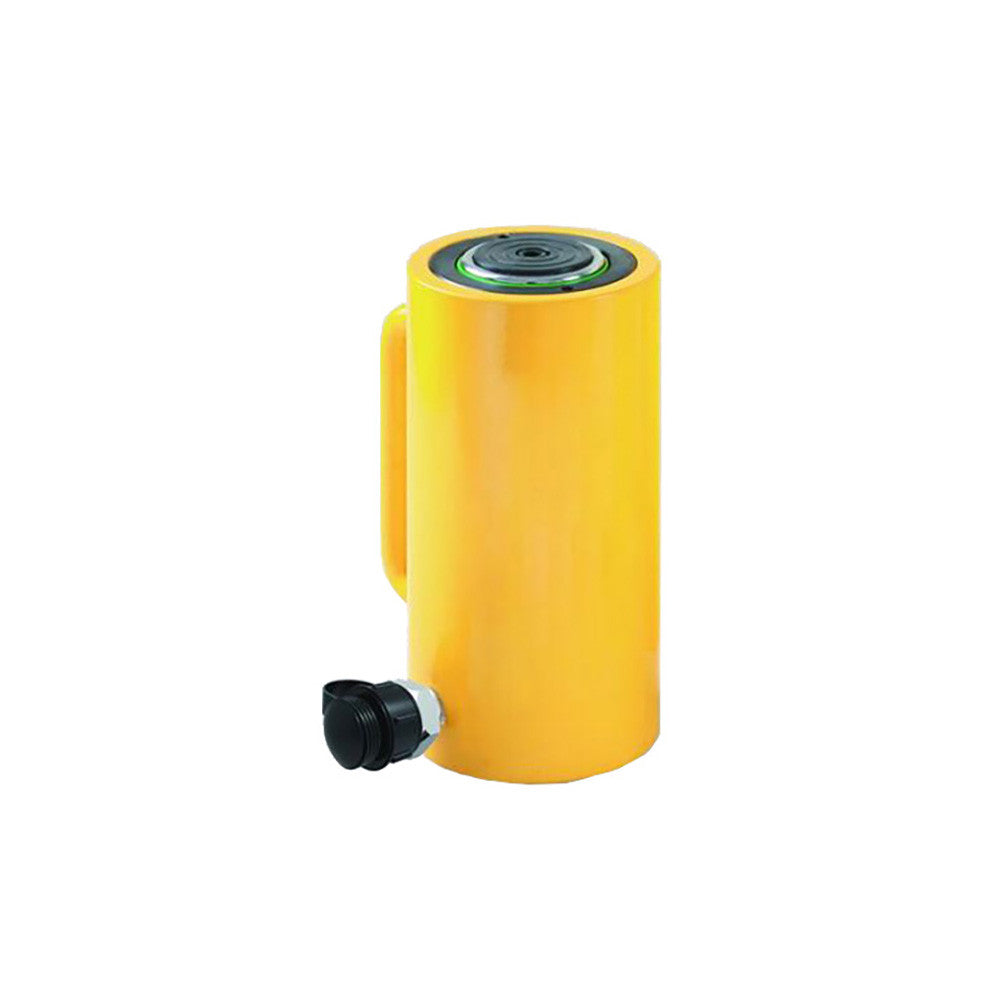

30-Tonne Single Acting General Purpose Cylinder - #HHYG-30100
Product Features:
Designed for use in all positions.
Spring return.
Capacity: 30Ton;
Max pressure 700bar.
Stroke 100mm;
High strength alloy steel for durability.
Chrome plated piston resists wear and corrosion.
Dust wiper on piston rod reduces contamination.
Baked enamel finish for increased corrosion resistance.
Cylinder bores are roller burnished to harden the surface and make it smoother.
Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
Each cylinder has a flat grooved saddle.
*Product Dimensions. See Image #2.
Closed height(A): 187 mm
Extended height(B): 287 mm
Outside diameter(D): 103 mm
Inside diameter(E): 75 mm
Piston rod diameter(F): 65 mm
Oil capacity: 471 cc
