Ice Ignition 8200 Series Small Cap Bronze Gear Distributor Suit Chev S/B & B/B V8
ICE 8200 Series small cap billet distributors feature a compact cap design with screw on wire retainer and choice of distributor gears. Available for all popular engine types and used when distributor clearance is tight or the look of a small distributor is preferred.
Severe duty ICE distributors are available for all popular V8 and 6 Cylinder engines.
Every ICE distributor features a CNC machined 6061 aircraft grade Aluminium body, hardened and precision centerless ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush. Triggering via accurate and reliable Hall Effect vane sensor unaffected by dirt, moisture or vibration, HEI style distributor caps featuring brass terminals for long service life under extreme operating conditions.
Most distributors are available in a choice of large or small cap and with either Spheroidal Graphite Iron, Silicon Impregnated Bronze gears.
Specifications:
Application: Chevrolet Small Block Gen I 283-400 C.I.D. & Big Block 396-502 C.I.D
O.E.M. Replacement : No
Trigger Style: Hall Effect vane sensor
Advance Type: Mechanical
Cap Style: Small Style Male/HEI
Cap Finish: Black

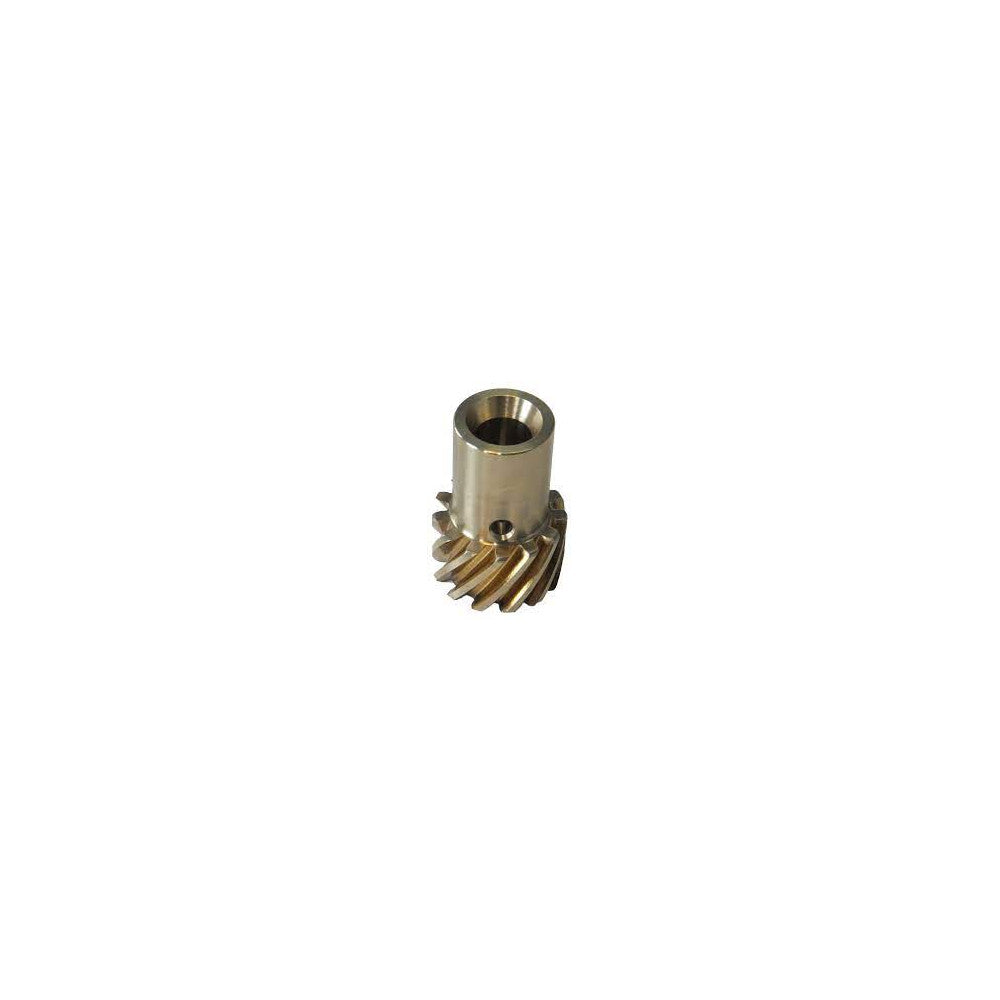

Gear Material: SI Bronze
Ignition Box Required: Yes
Distributor Gear Rotation: Standard
Housing Material: Billet Aluminium
Housing Finish: Natural
Marine Use: No
Quantity: Sold individually
Note: The use of an ignition control module box is required when using this type of distributor
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colours of products may also appear different to those shown on the site
