Description
The 7060MV Street Series is aimed at standard to mildly modified street cars . It features 16 pre-programmed push button adjustable advance curves and vacuum advance via a built in MAP sensor. This provides easy and effective tune-ability for everything from a standard engine through to modified combinations. It results in excellent everyday drive ability and exceptional long term performance. Please note the 7060MV does not include an rpm limiter.
The ICE Ignition 7060MV Street Series Control Box features the following.

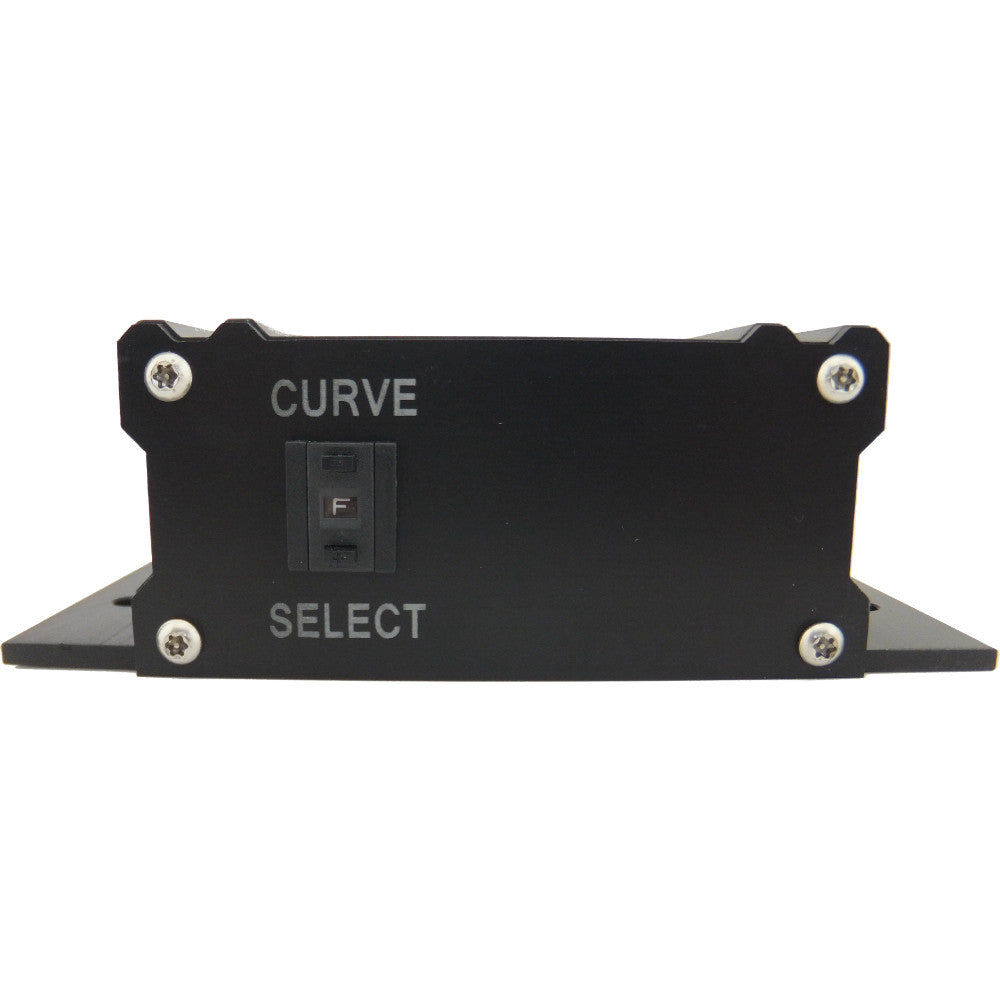

16 Pre-programmed ignition curves - 16 push-button selectable ignition curves enables total timing adjustment in real-time. It features 8 FAST Timing Advance Curves and 8 SLOW Timing Advance Curves
It eliminates the need for distributor re-graphing when engine upgrades are introduced.
It also enables total timing adjustment in real-time for changes in fuel quality.

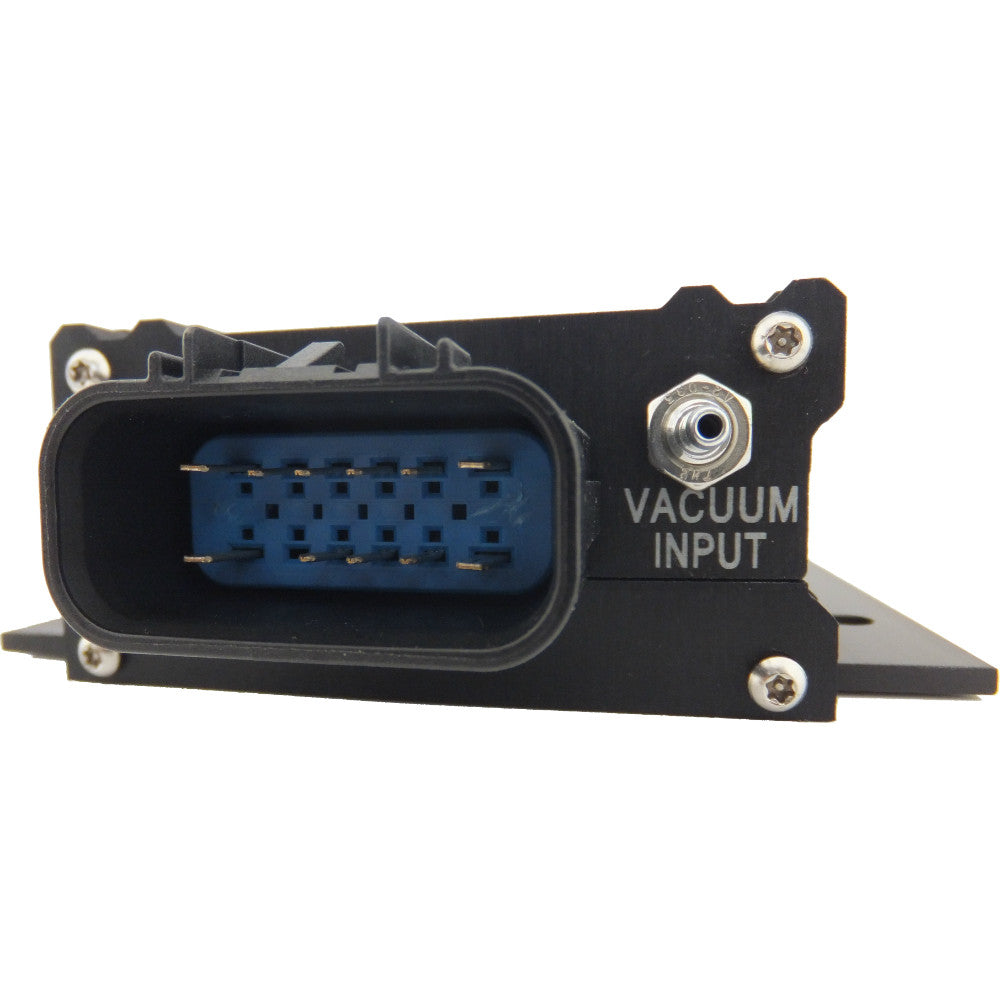

Vacuum Advance Manifold Absolute Pressure (MAP) Sensor - Advances timing up to 10 degrees under cruise conditions allowing the engine to run smoothly and improves fuel efficiency. MAP sensor use is optional, it won't impact ignition performance if not used.
The controller must be mounted inside your car, NOT inside your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs.
Customize to a Kit : Call our staff and get the quote
What's in the ICE Ignition Kit?
It Includes :
7060MV Controller
ICE Ignition SMALL CAP (4" Diameter) Billet Distributor - It's made from 6061 aircraft-grade Aluminium and uses a “Hall Effect Sensor” to communicate with the Control Box.
If you prefer a LARGE CAP Distributor (5" Diam.) Contact our staff
BRONZE Gear is fitted to the distributor to suit a STEEL BILLET ROLLER Camshaft.
ICE Ignition 9FOR803 Pro 100 9 mm leads (Black)
ICE Ignition 4200 Pro Series Race Coil
Note : Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colours of products may also appear different to those shown on the site
The ICE Ignition 7060MV Street Series Control Box features the following.
16 Pre-programmed ignition curves - 16 push-button selectable ignition curves enables total timing adjustment in real-time. It features 8 FAST Timing Advance Curves and 8 SLOW Timing Advance Curves
It eliminates the need for distributor re-graphing when engine upgrades are introduced.
It also enables total timing adjustment in real-time for changes in fuel quality.
Vacuum Advance Manifold Absolute Pressure (MAP) Sensor - Advances timing up to 10 degrees under cruise conditions allowing the engine to run smoothly and improves fuel efficiency. MAP sensor use is optional, it won't impact ignition performance if not used.
The controller must be mounted inside your car, NOT inside your engine bay. ICE Ignition recommends the use of NON-RESISTOR Spark Plugs.
Customize to a Kit : Call our staff and get the quote
What's in the ICE Ignition Kit?
It Includes :
7060MV Controller
ICE Ignition SMALL CAP (4" Diameter) Billet Distributor - It's made from 6061 aircraft-grade Aluminium and uses a “Hall Effect Sensor” to communicate with the Control Box.
If you prefer a LARGE CAP Distributor (5" Diam.) Contact our staff
BRONZE Gear is fitted to the distributor to suit a STEEL BILLET ROLLER Camshaft.
ICE Ignition 9FOR803 Pro 100 9 mm leads (Black)
ICE Ignition 4200 Pro Series Race Coil
Note : Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colours of products may also appear different to those shown on the site
