Description

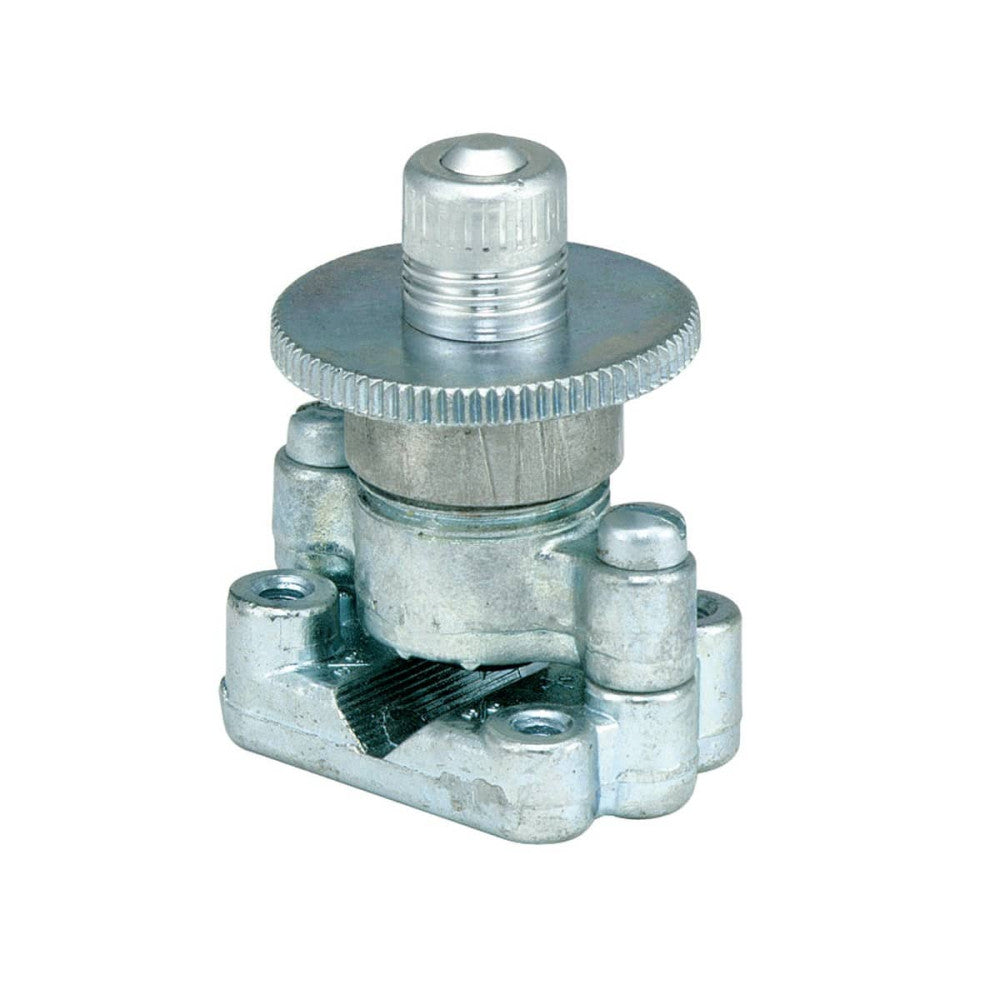

Fast, easy, secure installation. Provides access to the line at any point for charging, testing or evacuation. Two valves cover 3/16" to 5/8" O.D. tubing. Has depressor valve and needle valve shut-off. Valve clamps on tubing line with two captive slotted head screws: positive built-in mechanical stop for each tube size eliminates tightening guesswork. To pierce tube, thread down the combination l/4" flare port, stem and needle using knob furnished or a suitable wrench, back off the stem and connect depressor type hose for testing or charging. After service is completed valve is closed and left online for future service. FEATURES: Three-point sealing Needle-type valve Prevents leakage Neoprene seal withstands temperatures near 300° F. 1/4" SAE Flare Port OPTIONS: 541C - Fits 3/16", 1/4" and 5/16" O.D. tubing.
SPECIFICATIONS: Type: Piercing valve Size: 541C Fits 3/16", 1/4" and 5/16".
Port Connection Size: 1/4" SAE Flare Warranty: Limited lifetime warranty.
