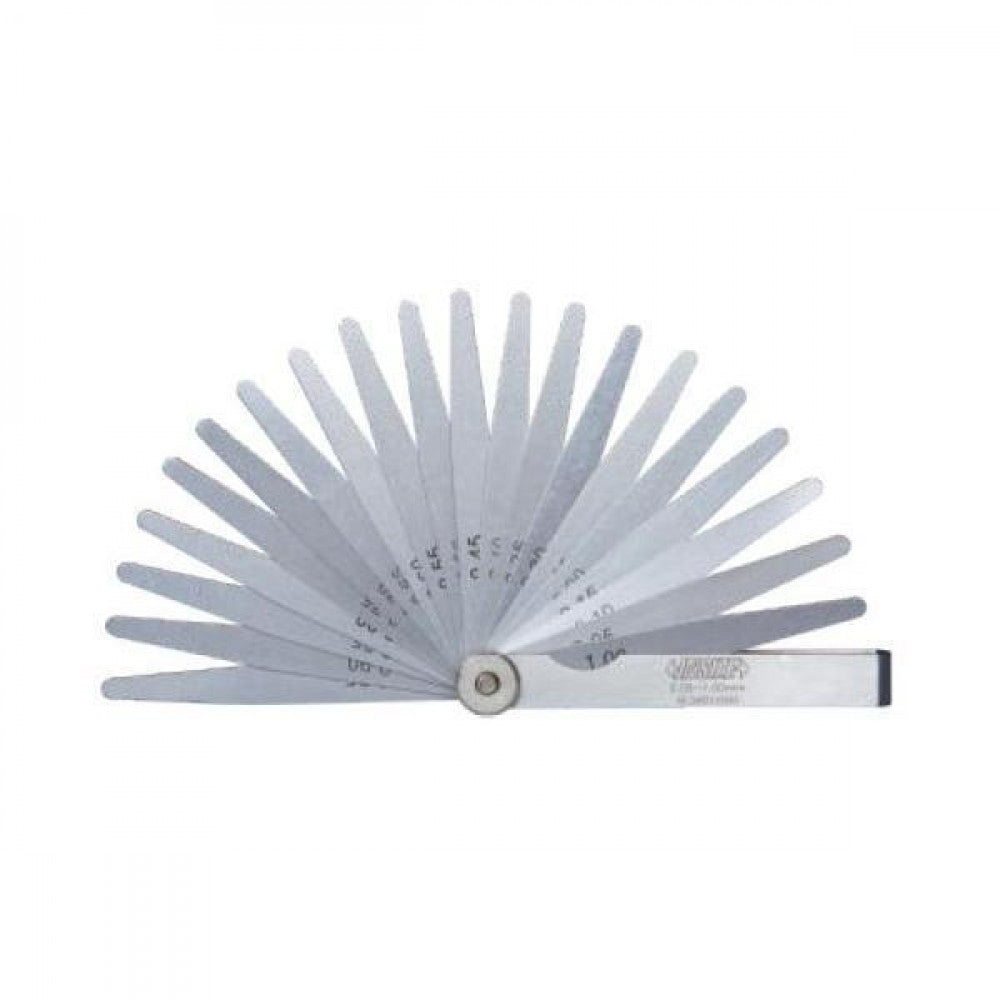

Description
No. Of Leaves : 20 tapered
Leaf Size : 13mm x 200mm
Accuracy : ±(3+T/80)μm, ‘T’ is the thickness of leaves in μm
Range : 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95 & 1.00mm
Made of hardened alloy steel.
Meet DIN2275
Leaf Size : 13mm x 200mm
Accuracy : ±(3+T/80)μm, ‘T’ is the thickness of leaves in μm
Range : 0.05, 0.10, 0.15, 0.20, 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 0.95 & 1.00mm
Made of hardened alloy steel.
Meet DIN2275
