Description

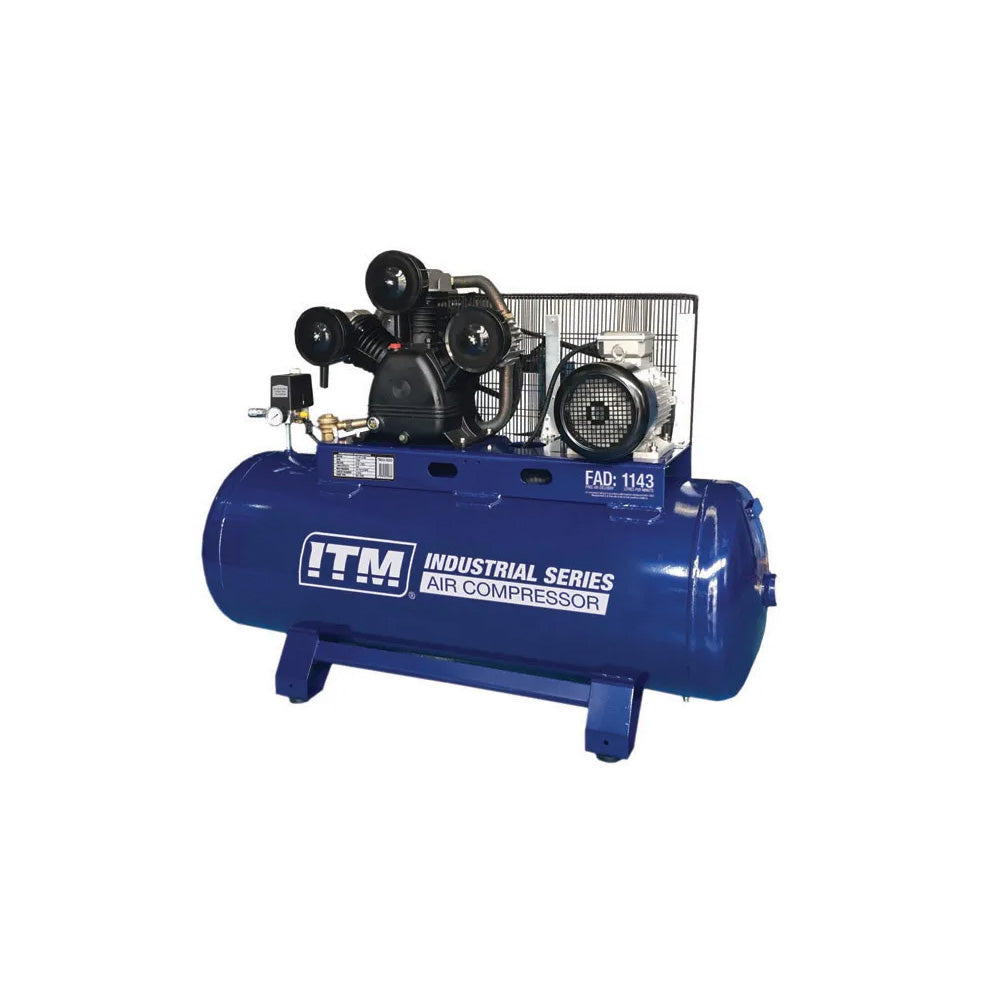

TM353-10270 | ITM Air Compressor Stationary 10HP | 270L | 3 Phase
FEATURES
• Triple cast iron cylinder oil lubricated pump with aluminium head.
• Powerful high efficiency induction motor.
• Soft start valve for electric motor protection.
• Thermal overload protection with manual reset.
• Full brass non-return valve.
• Certified safety valve.
• Reliable Condor pressure switch.
• Includes twin outlet one-touch “Nitto style” connectors.
SPECIFICATIONS
• Motor: 10HP - Three Phase 415V
• Tank Capacity: 270 L
• Max Pressure: 147 PSI (10 Bar)
• Pump Displacement: 1269 L/min (44.8 CFM)
• Free Air Delivery: 1143 L/min (40.4 CFM)
• Pump RPM: 950
• Package Dimensions: 161cm L x 62cm W x 131cm H
• Compressor Dimensions: 155cm L x 54cm W x 112cm H
FEATURES
• Triple cast iron cylinder oil lubricated pump with aluminium head.
• Powerful high efficiency induction motor.
• Soft start valve for electric motor protection.
• Thermal overload protection with manual reset.
• Full brass non-return valve.
• Certified safety valve.
• Reliable Condor pressure switch.
• Includes twin outlet one-touch “Nitto style” connectors.
SPECIFICATIONS
• Motor: 10HP - Three Phase 415V
• Tank Capacity: 270 L
• Max Pressure: 147 PSI (10 Bar)
• Pump Displacement: 1269 L/min (44.8 CFM)
• Free Air Delivery: 1143 L/min (40.4 CFM)
• Pump RPM: 950
• Package Dimensions: 161cm L x 62cm W x 131cm H
• Compressor Dimensions: 155cm L x 54cm W x 112cm H
