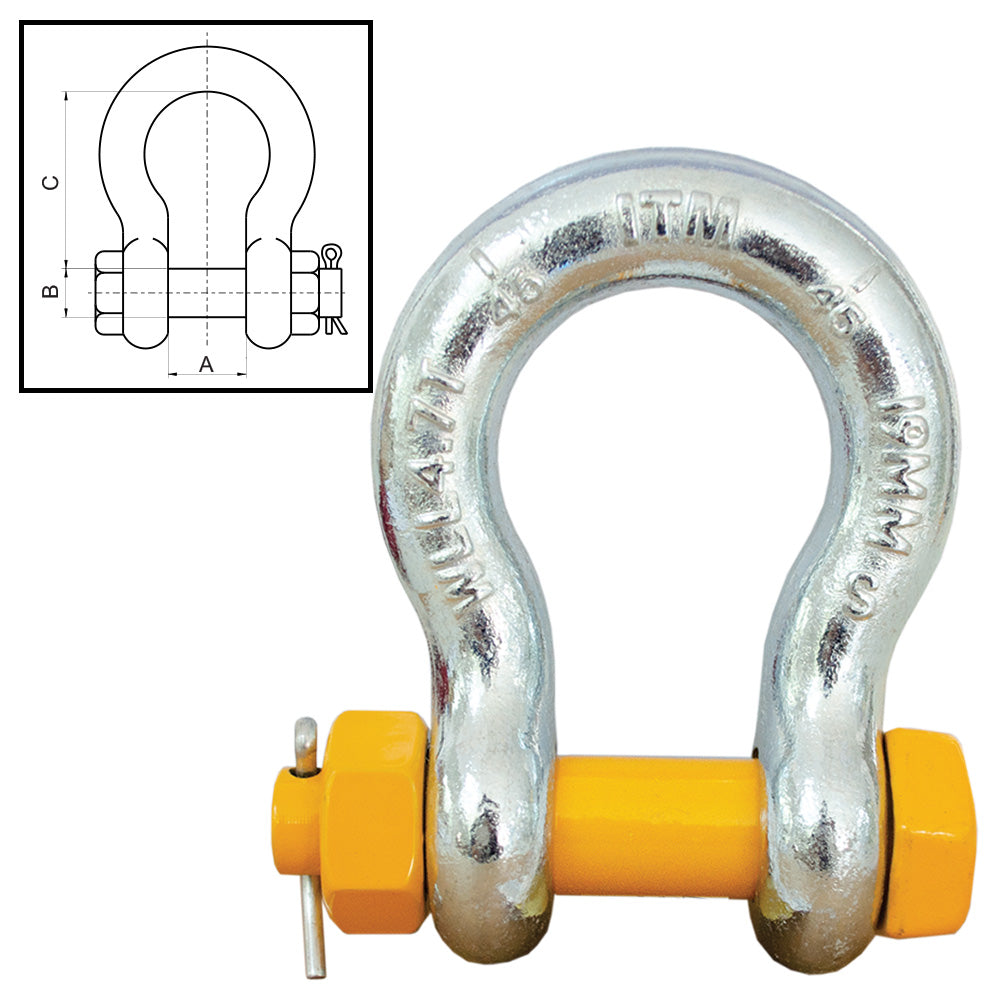

ITM Bow Shackle-Yellow Pin GS Safety Pin-13 Ton-35mm Body
Description
TM9222-13035| ITM Bow Shackle, Yellow Pin GS Safety Pin, 13 Ton, 35mm Body
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 35mm (1-3/8")
• W.L.L.: 13.5 T
• Dimension (mm):
A: 57
B: 38
C: 133
• Weight: 7.18kg
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 35mm (1-3/8")
• W.L.L.: 13.5 T
• Dimension (mm):
A: 57
B: 38
C: 133
• Weight: 7.18kg
