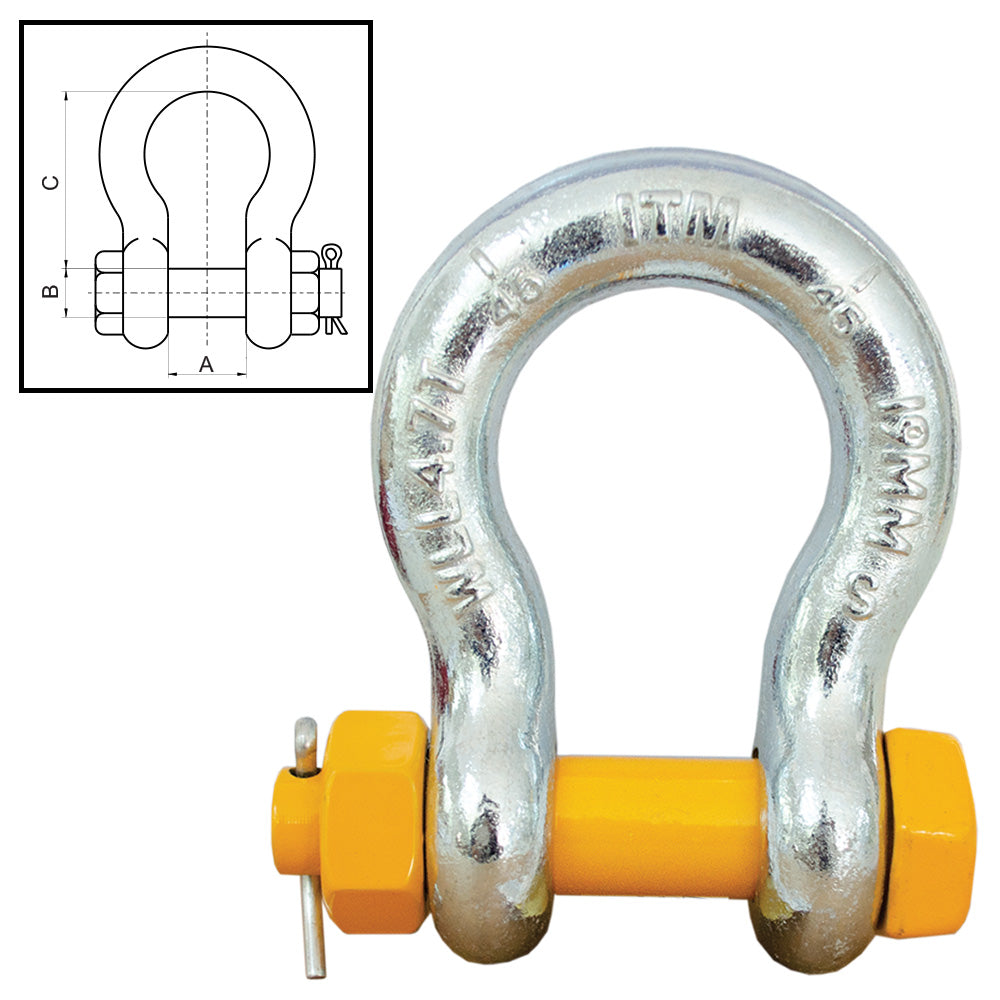

ITM Bow Shackle-Yellow Pin GS Safety Pin-25 Ton-44mm Body
Description
TM9222-25044| ITM Bow Shackle, Yellow Pin GS Safety Pin, 25 Ton, 44mm Body
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 44mm (1-3/4")
• W.L.L.: 25.0 T
• Dimension (mm):
A: 73
B: 51
C: 178
• Weight: 15.38kg
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 44mm (1-3/4")
• W.L.L.: 25.0 T
• Dimension (mm):
A: 73
B: 51
C: 178
• Weight: 15.38kg
