ITM Bow Shackle-Yellow Pin GS Safety Pin-6.5 Ton 22mm Body
Description
TM9222-06522| ITM Bow Shackle, Yellow Pin GS Safety Pin, 6.5 Ton 22mm Body
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 22mm (7/8")
• W.L.L.: 6.5 T

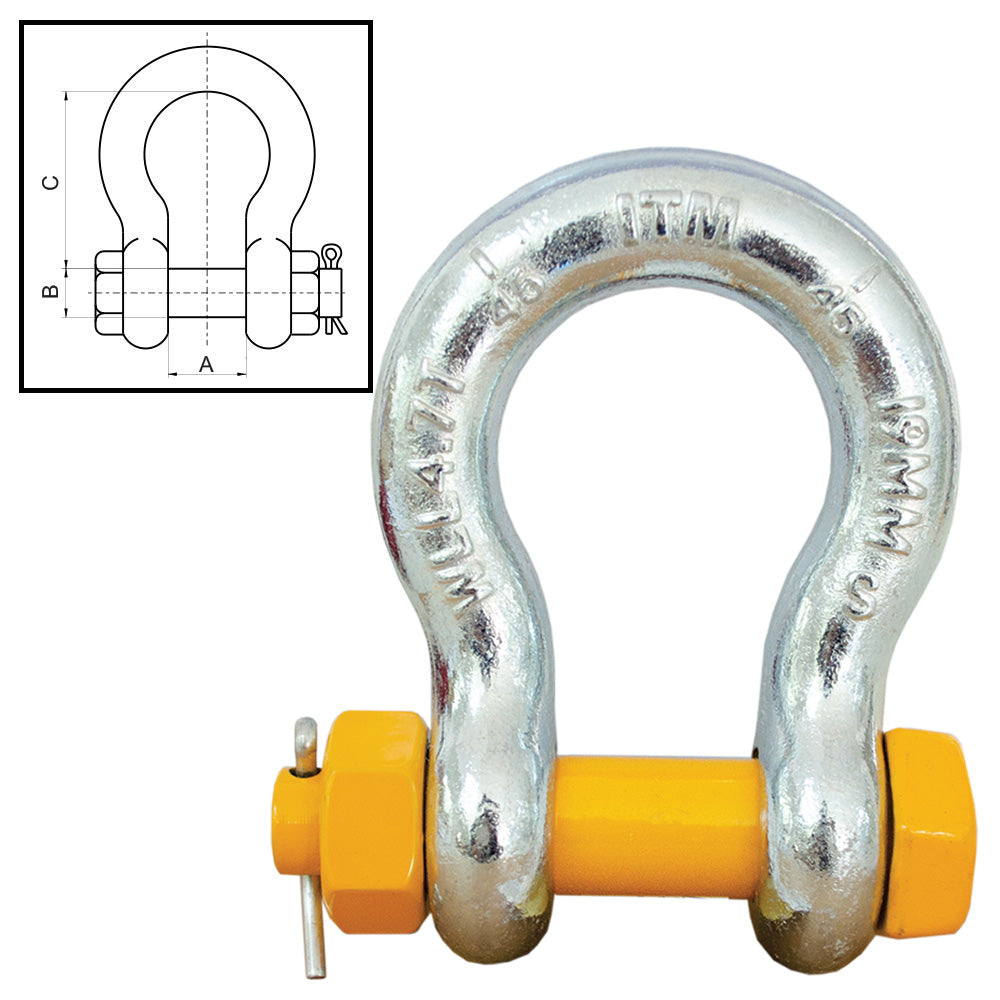

• Dimension (mm):
A: 36
B: 25
C: 84
• Weight: 1.79kg
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 22mm (7/8")
• W.L.L.: 6.5 T
• Dimension (mm):
A: 36
B: 25
C: 84
• Weight: 1.79kg
