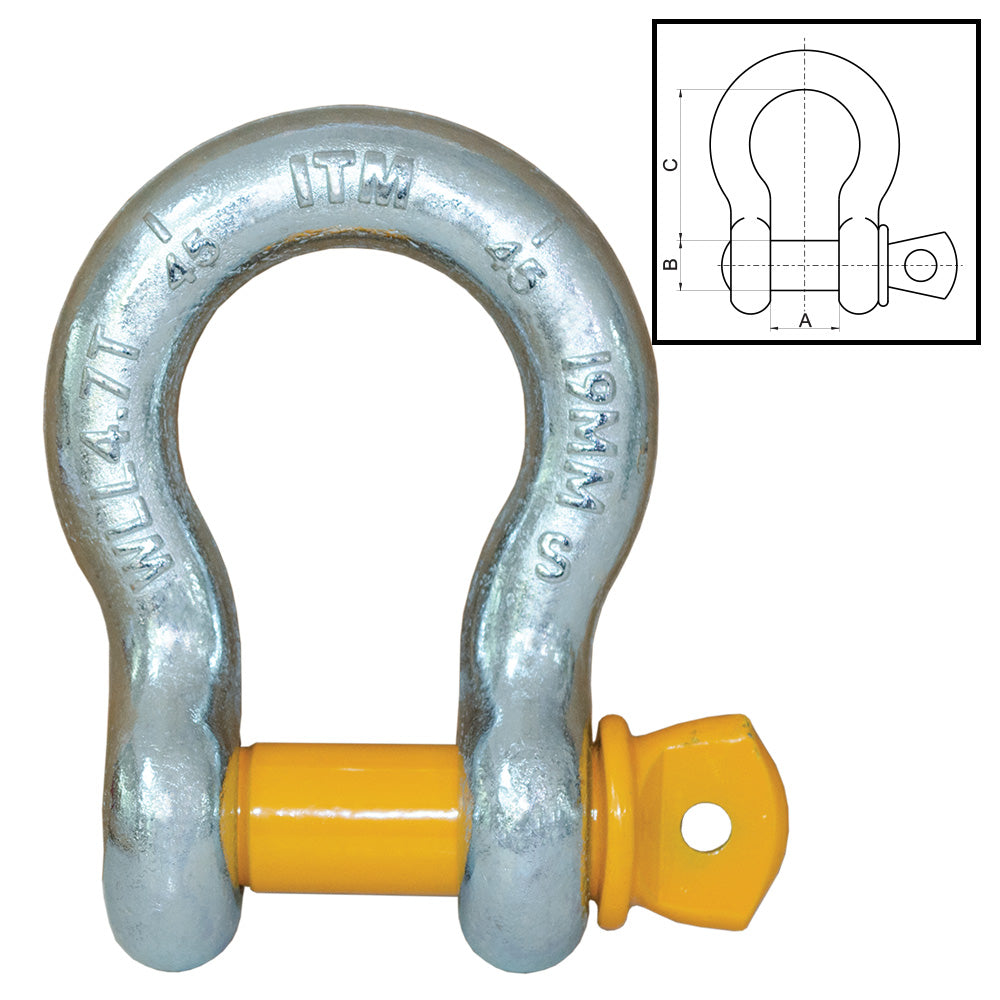

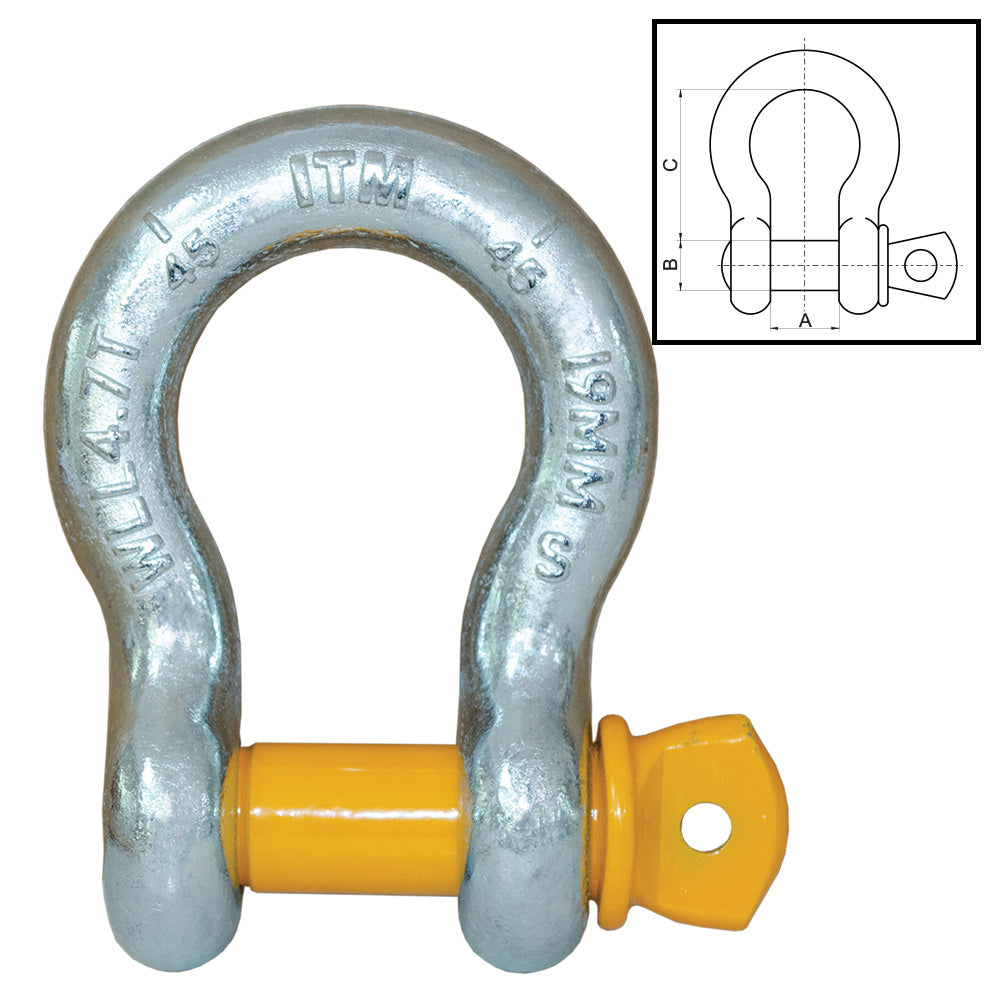

ITM Bow Shackle-Yellow Pin GS Screw Pin-0.5 Ton-6mm Body
Description
TM9220-00506| ITM Bow Shackle, Yellow Pin GS Screw Pin, 0.5 Ton, 6mm Body
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 6mm (1/4")
• W.L.L.: 0.5 T
• Dimension (mm):
A: 12
B: 8
C: 29
• Weight: 0.05kg
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 6mm (1/4")
• W.L.L.: 0.5 T
• Dimension (mm):
A: 12
B: 8
C: 29
• Weight: 0.05kg
