ITM Bow Shackle-Yellow Pin GS Screw Pin-1 Ton-10mm Body
Description
TM9220-01010| ITM Bow Shackle, Yellow Pin GS Screw Pin, 1 Ton, 10mm Body
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 10mm (3/8")
• W.L.L.: 1.0 T

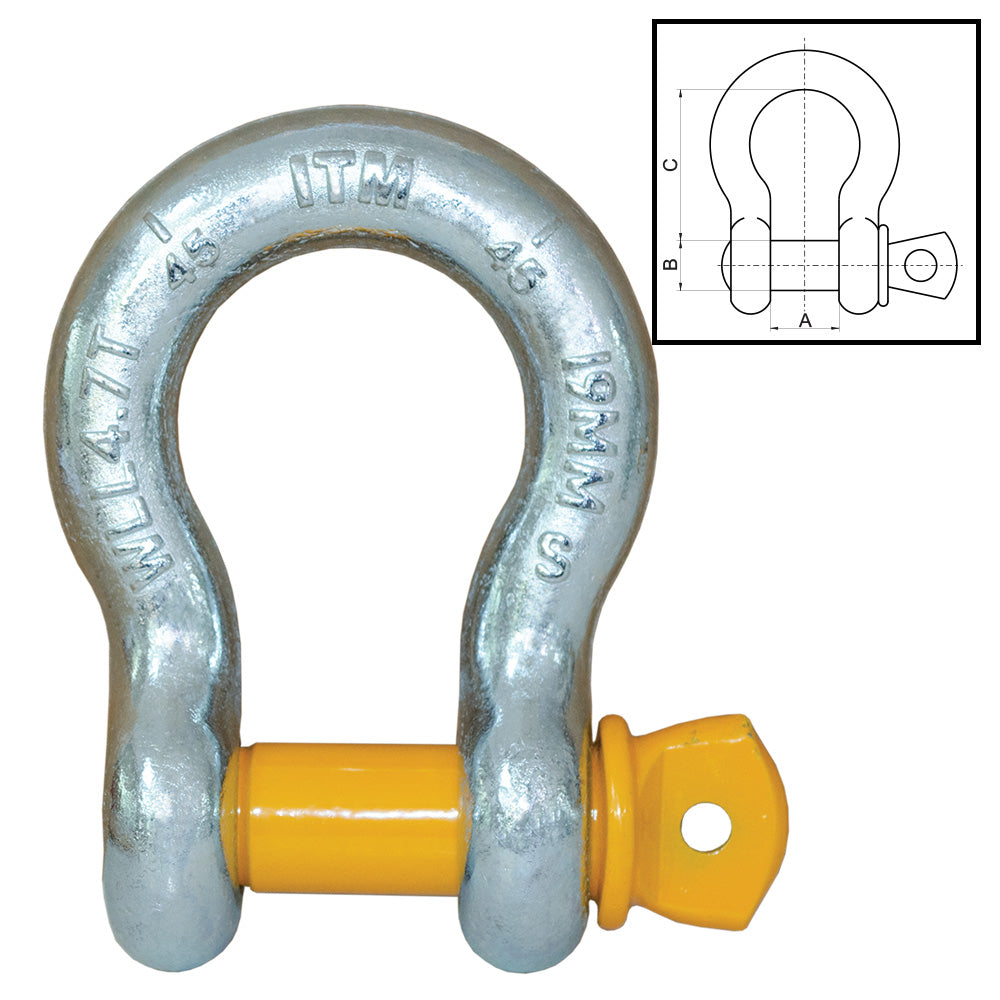

• Dimension (mm):
A: 17
B: 11
C: 37
• Weight: 0.14kg
• Drop forged, quenched and tempered
• Galvanised finish
• Tested and certified to AS 2741
• Maximum proof load of 2 times W.L.L
• Minimum breaking force of 6 times W.L.L
• Nominal Size: 10mm (3/8")
• W.L.L.: 1.0 T
• Dimension (mm):
A: 17
B: 11
C: 37
• Weight: 0.14kg
