ITM G80 Lifting Point-Oblong Eye Bolt-M10-1 T
Description

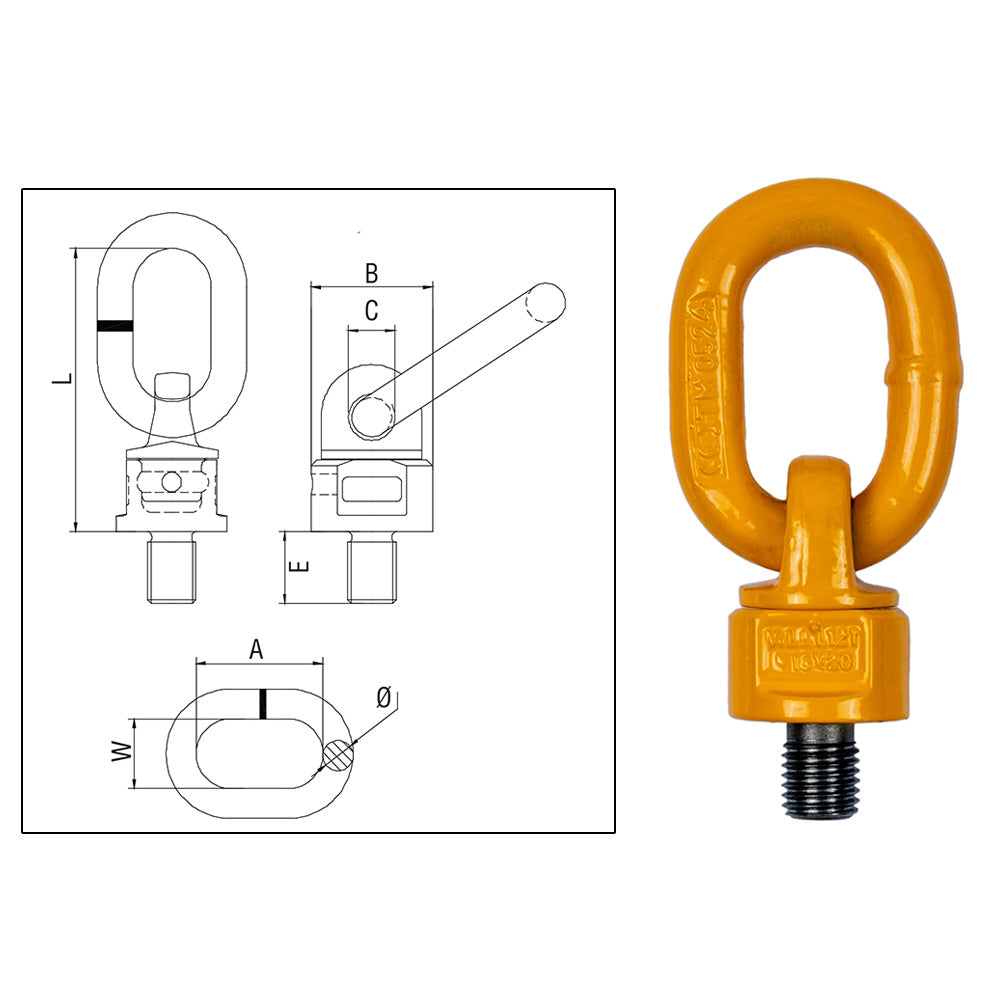

TM9812-04010| ITM G80 Lifting Point Oblong Eye Bolt M10 1 T • Premium-grade heat treated alloy steel • Specifications batch and brand markings as per Australian Standards requirements • Tested and certified to AS 3776 Specifications: • W.L.L. 0°: 1T • W.L.L. 90°: 0.45T • Thread: M10 • Dimension: A: 55mm B: 36mm C: 16mm E: 10mm L: 97.5mm W: 30mm Ø: 14mm
