Description

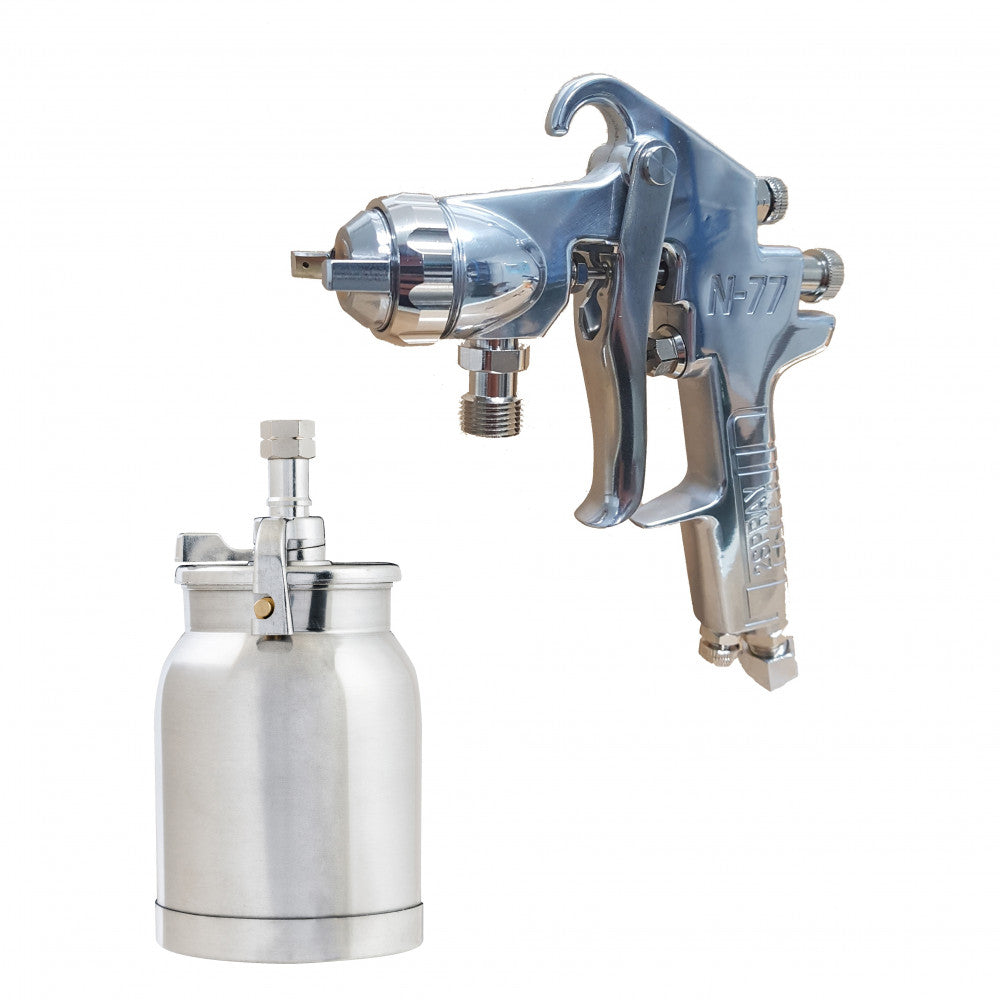

A well balanced general purpose spraygun, with built-in air adjuster. Excellent for standard production requiring fine finishes.
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
Part No. Fluid Nozzle Size [mm] Air Pressure @ Gun Inlet [bar] Air Consumption [l/min] Fluid Output [ml/min] Fan Pattern [mm] Cap # Pot type / size
N77.1LA 1.5 3.5 180 255 210 1 LA.1000
N77.11LA 1.5 3.5 290 255 260 11 LA.1000
N77.12LA 1.5 3.5 370 255 230 12 LA.1000
N77.2LA 2.0 3.5 250 245 255 2 LA.1000
N77.21LA 2.0 3.5 340 350 270 21 LA.1000
N77.3LA 2.5 3.5 325 435 280 3 LA.1000
Compact head design
Polished body for easy cleaning
Comfortable to use.
High atomization
Excellent manoeuverability
Part No. Fluid Nozzle Size [mm] Air Pressure @ Gun Inlet [bar] Air Consumption [l/min] Fluid Output [ml/min] Fan Pattern [mm] Cap # Pot type / size
N77.1LA 1.5 3.5 180 255 210 1 LA.1000
N77.11LA 1.5 3.5 290 255 260 11 LA.1000
N77.12LA 1.5 3.5 370 255 230 12 LA.1000
N77.2LA 2.0 3.5 250 245 255 2 LA.1000
N77.21LA 2.0 3.5 340 350 270 21 LA.1000
N77.3LA 2.5 3.5 325 435 280 3 LA.1000
