Description

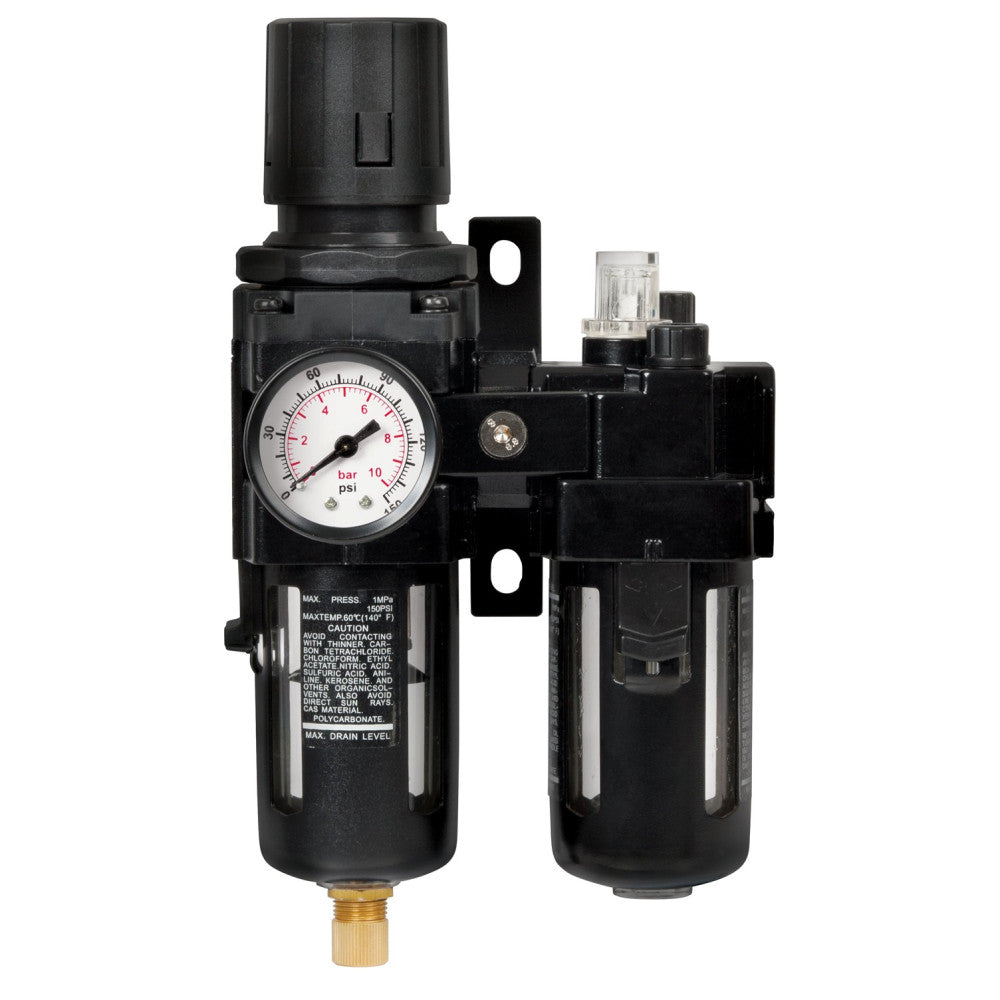

Premium filter regulators designed to deliver clean, controlled compressed air for workshop and industrial applications. Each unit comes complete with a pressure gauge, mounting bracket and semi-automatic drain valve for both differential pressure and manual draining. The transparent polycarbonate bowl allows easy visual inspection, while the locking adjustment knob provides simple and precise pressure control. Featuring a 5-micron brass filter element to remove moisture, oil and particles from compressed air, it helps protect pneumatic tools, spray guns and equipment from damage. With a maximum inlet pressure of 150 psi and adjustable output pressure from 7.5–150 psi, it provides stable and reliable airflow for consistent performance.
Features:
Polycarbonate bowl with metal guard
Semi-automatic drain in filter regulator
5μm brass filter element
Robust metal construction
Includes mounting brackets
ISO 32 Oil recommended in Lubricator
Working Temperature 0–60°C
Lubricator valve has overfow with an adjustable oil drop rate
Lubricator has and oil needle for easy adjustment
Specifications
Thread: 1/4" BSP Female
Dual Scale: psi and bar
Pressure Range: 5–150 psi, 0–10 bar
Flow Rate: 71 cfm, 2000 L/min
Dimensions: 117 L x 70.5 W x 211 D mm
Warranty
1 Year
