Description

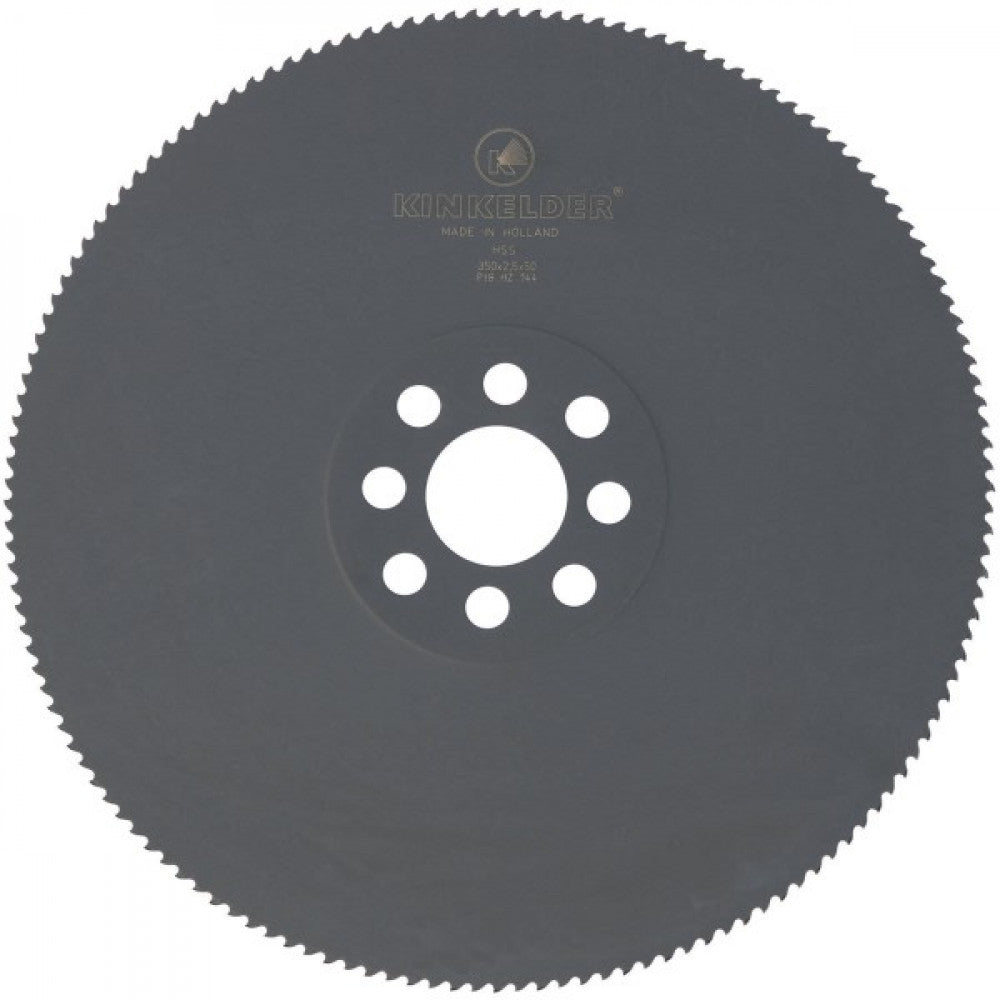

Kinkelder HSS Cold Cut Blade 350 x 2.5 x 32 x 220T
Kinkelder Produces HSS Metal Circular Sawblades In Diameters Varying From 150 To 570 mm In Various Designs. The Standard Stocked Range Is Available At Mytools.
Standard Specifications:
Material M2
M2 = Din 1.3343
Manufacturing Standards:
Din 1836, 1837, 1838 And 1840
Tooth Forms: Bw, Hz
Cutting Clearance Angle: 18° / 8°
Design Hardness: Steam-Treated 63-65 Hrc
Service Life Improvement
There Are Ways Of Improving The Service Life Of A Sawblade. This Is Among Others Possible By Using A Steam-Treated Sawblade.
Steam-Treated
The Steam-Treatment Of Kinkelder HSS Sawblades Is Carried Out In A Special Oven, In Which Steam At A Constant Temperature Of 550°C Is Injected. This Process Provides A Hard Dark-Blue Layer Of Fe3O4 On The Sawblade With A Thickness Of 3 - 5µm. This Hard, Wear Resistant Oxide Layer Has A Micro-Porous Structure As A Result Of Which The Coolant Has A Better Cooling And Lubricating Effect On The Sawblade. The Result Is A Greatly Reduced Chance Of Cold-Weld And An Increase In Service Life.
Photo May Not Show Exact Size
Kinkelder Produces HSS Metal Circular Sawblades In Diameters Varying From 150 To 570 mm In Various Designs. The Standard Stocked Range Is Available At Mytools.
Standard Specifications:
Material M2
M2 = Din 1.3343
Manufacturing Standards:
Din 1836, 1837, 1838 And 1840
Tooth Forms: Bw, Hz
Cutting Clearance Angle: 18° / 8°
Design Hardness: Steam-Treated 63-65 Hrc
Service Life Improvement
There Are Ways Of Improving The Service Life Of A Sawblade. This Is Among Others Possible By Using A Steam-Treated Sawblade.
Steam-Treated
The Steam-Treatment Of Kinkelder HSS Sawblades Is Carried Out In A Special Oven, In Which Steam At A Constant Temperature Of 550°C Is Injected. This Process Provides A Hard Dark-Blue Layer Of Fe3O4 On The Sawblade With A Thickness Of 3 - 5µm. This Hard, Wear Resistant Oxide Layer Has A Micro-Porous Structure As A Result Of Which The Coolant Has A Better Cooling And Lubricating Effect On The Sawblade. The Result Is A Greatly Reduced Chance Of Cold-Weld And An Increase In Service Life.
Photo May Not Show Exact Size
