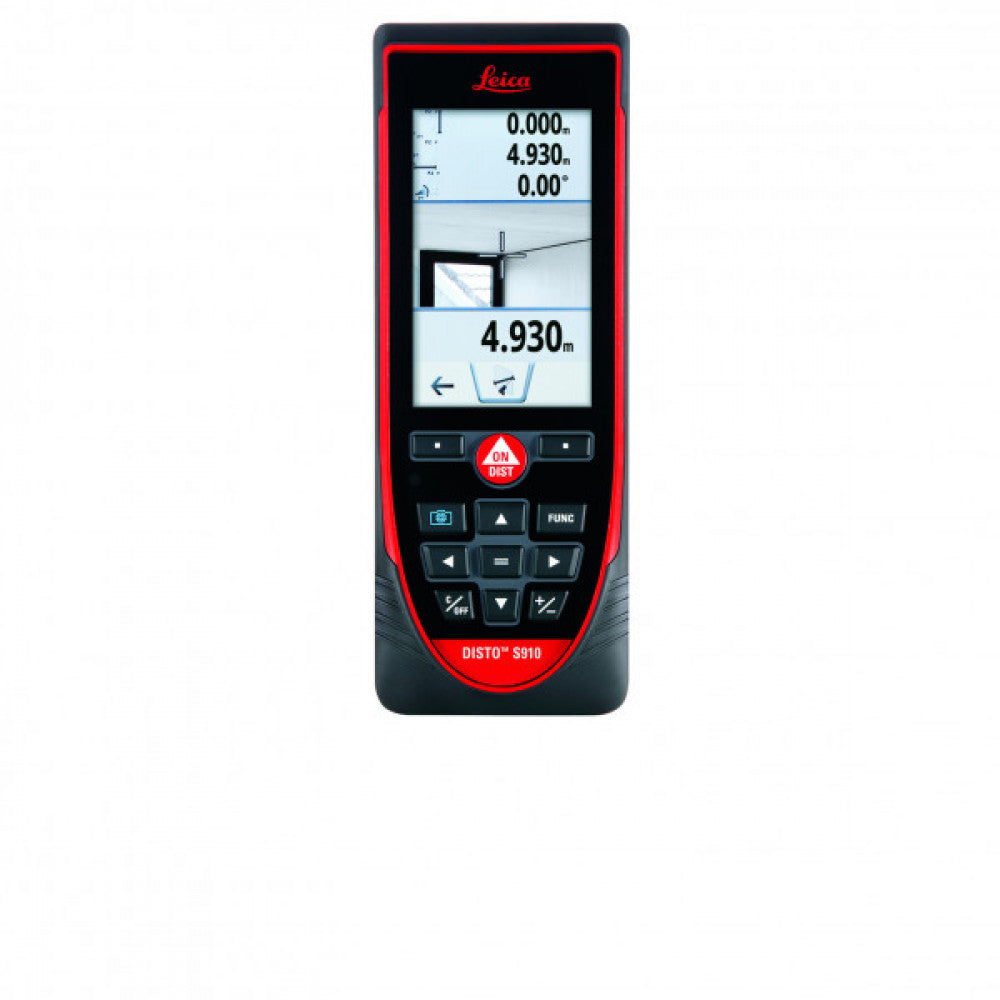

Leica Disto S910 300M IP54

Measure fast and precise distances between any two points from one location with the laser distance meter Leica DISTO™ S910. Easily create as built documentation, calculate roof dimensions and integrate data into BIM or CAD software to create 3D visualizations. This improved workflow saves valuable time and money – all this at a range of up to 300 m.

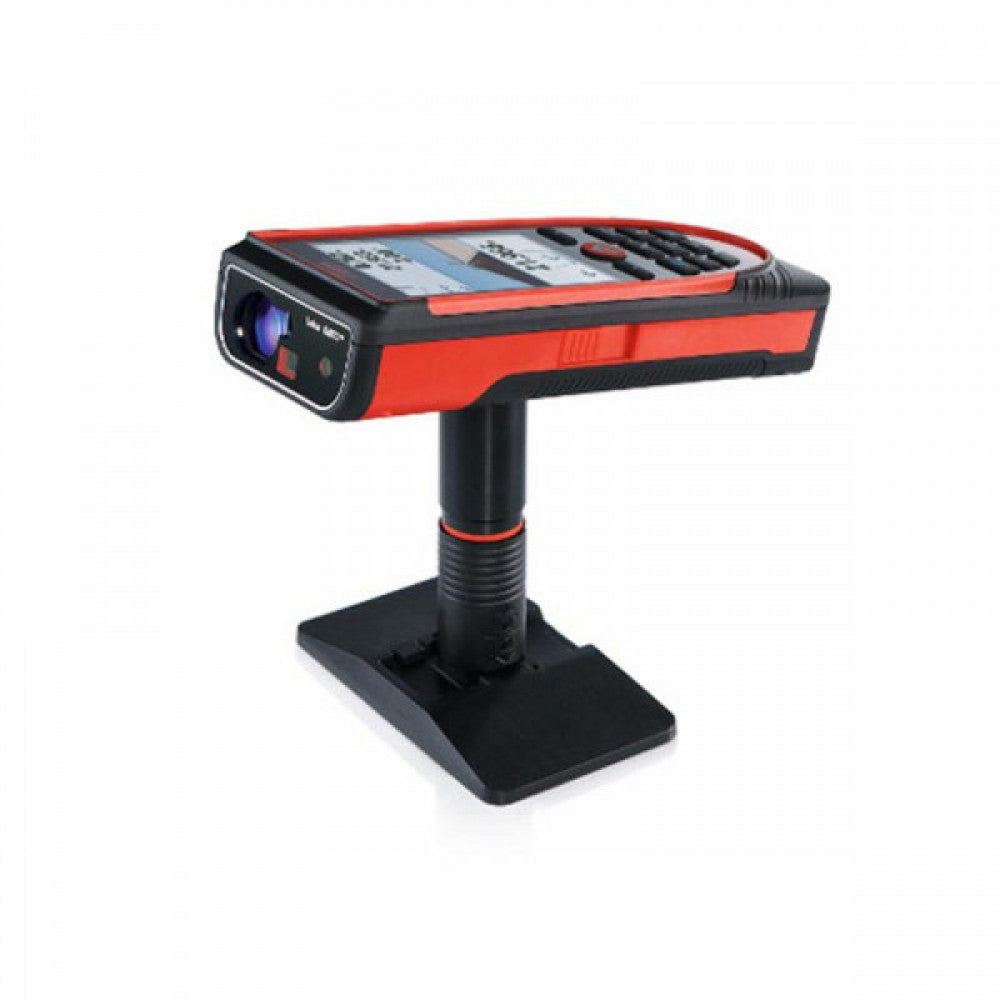

Integrated Smart Base for P2P Technology
Pointfinder with 4x zoom for easy targeting
X-Range Power Technology for highest measurement performance

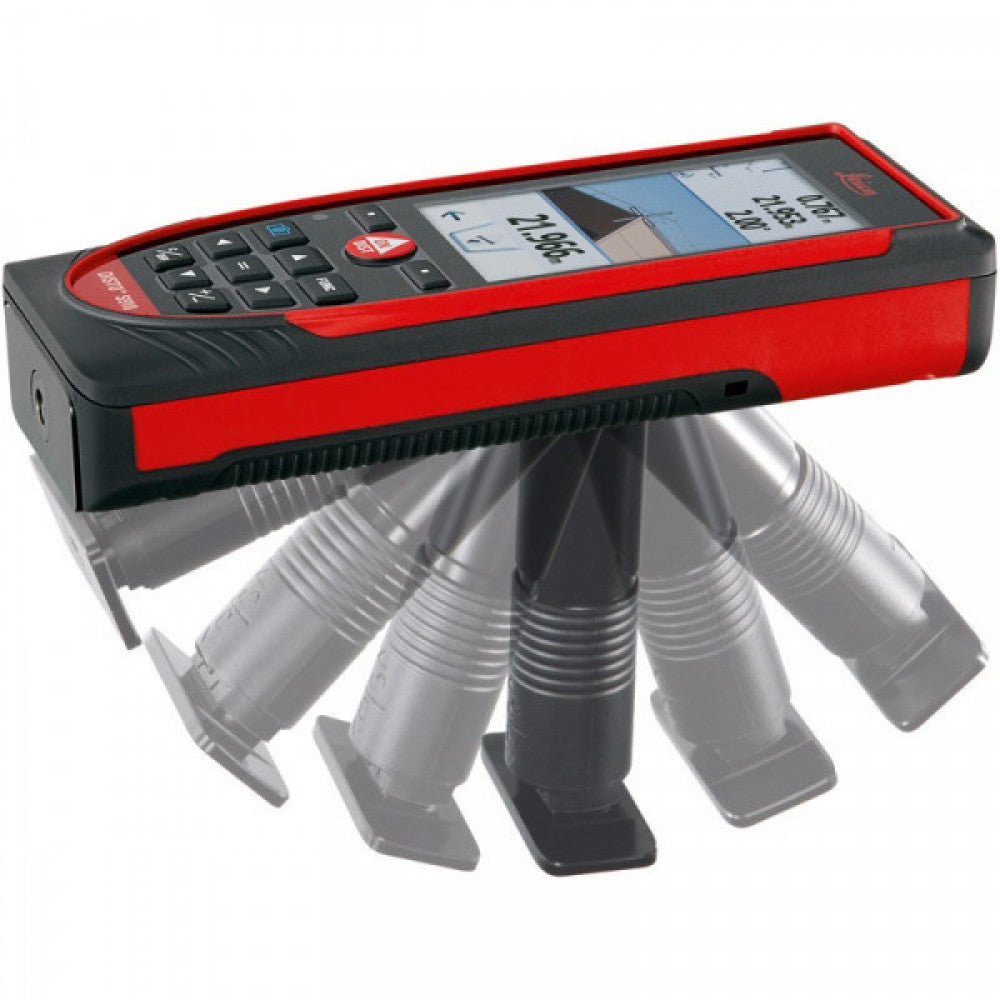

360deg tilt sensor
DXF data capture
Real-time data transfer with WLAN
Bluetooth® Smart
Free App – Leica DISTO sketch

Technical specifications:
Typical measuring accuracy ± 1 mm
Range 0.05 up to 300 m
X-Range Power Technology
Measuring units m, ft, in
Distance in m
Ø of the laser dot in mm 10, 50, 100 M
6, 30, 60 mm
Smart Base measuring range
Horizontal 360deg
Vertical -40deg to 80deg
Distance in m
Typical tolerance of the P2P function 2, 5, 10 M
2, 5, 10 mm
Levelling range ± 5deg
Pointfinder with 4x zoom
Overview camera
File format jpg, dxf
Memory for CAD files 20 files, each with 30 points
Free software for Windows
Free App iOS / Android
Data interface* Bluetooth® Smart, WLAN
Measurements per set of batteries up to 4000**
Batteries Li-ion rechargeable
Charging time 4h
Protection class IP 54
Dimensions 164x61x32 mm
Weight with batteries 290 g
