Description
IMPORTANT SHIPPING
This item is over 25kg and requires truck delivery. Free shipping applies to CBD business addresses only (or nearest depot). Residential, rural, and work-from-home addresses require a delivery quote.

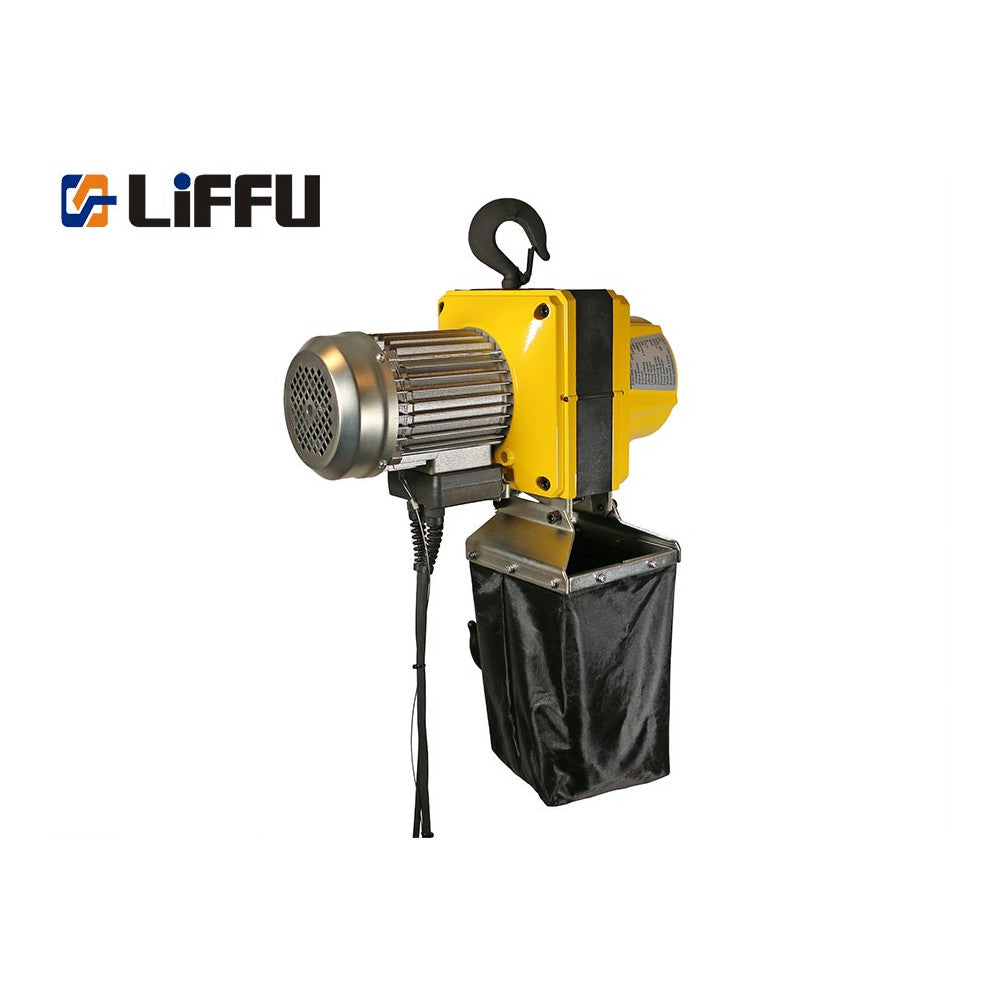

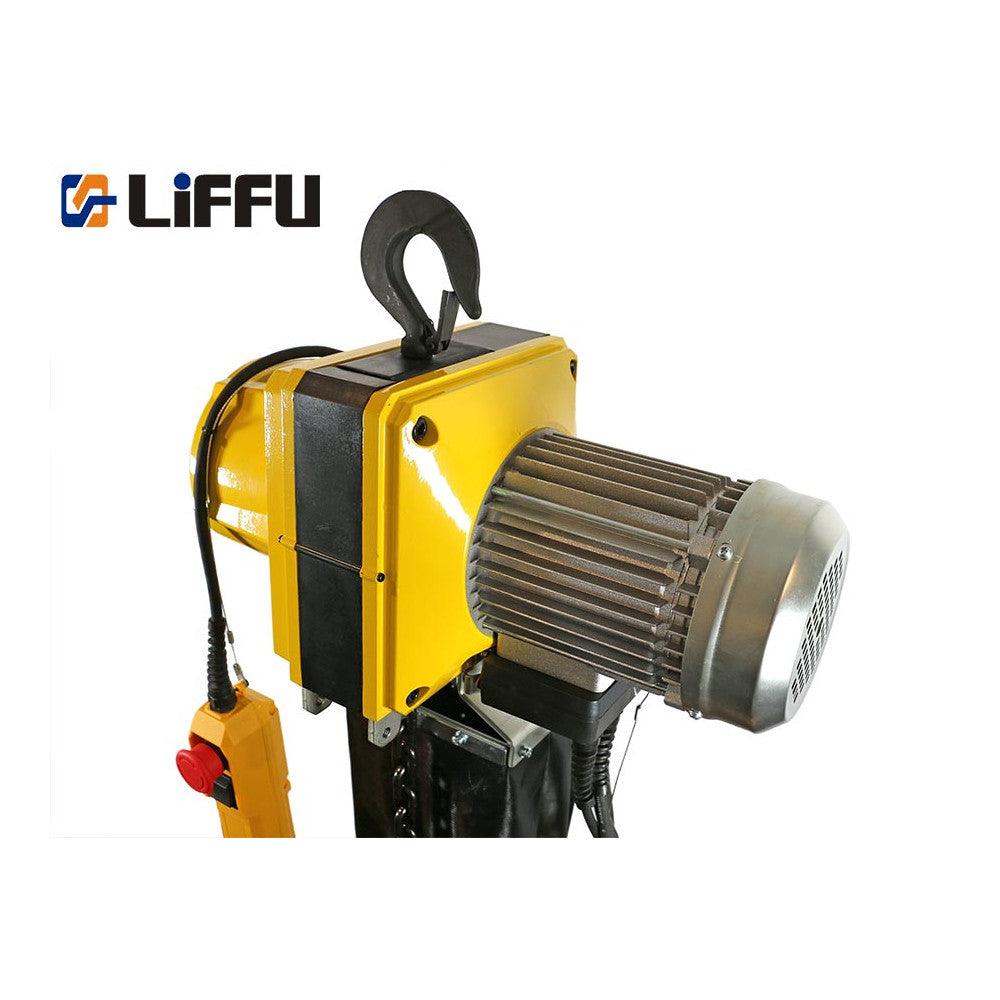

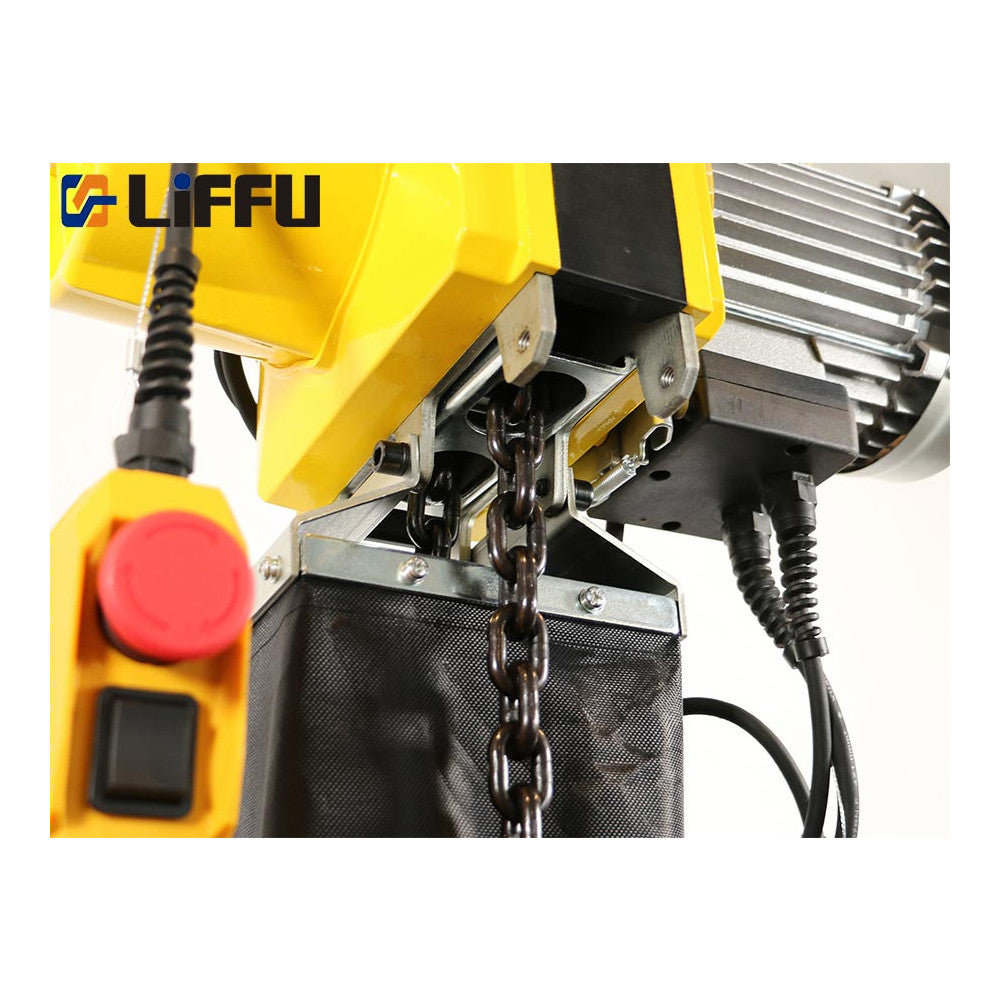

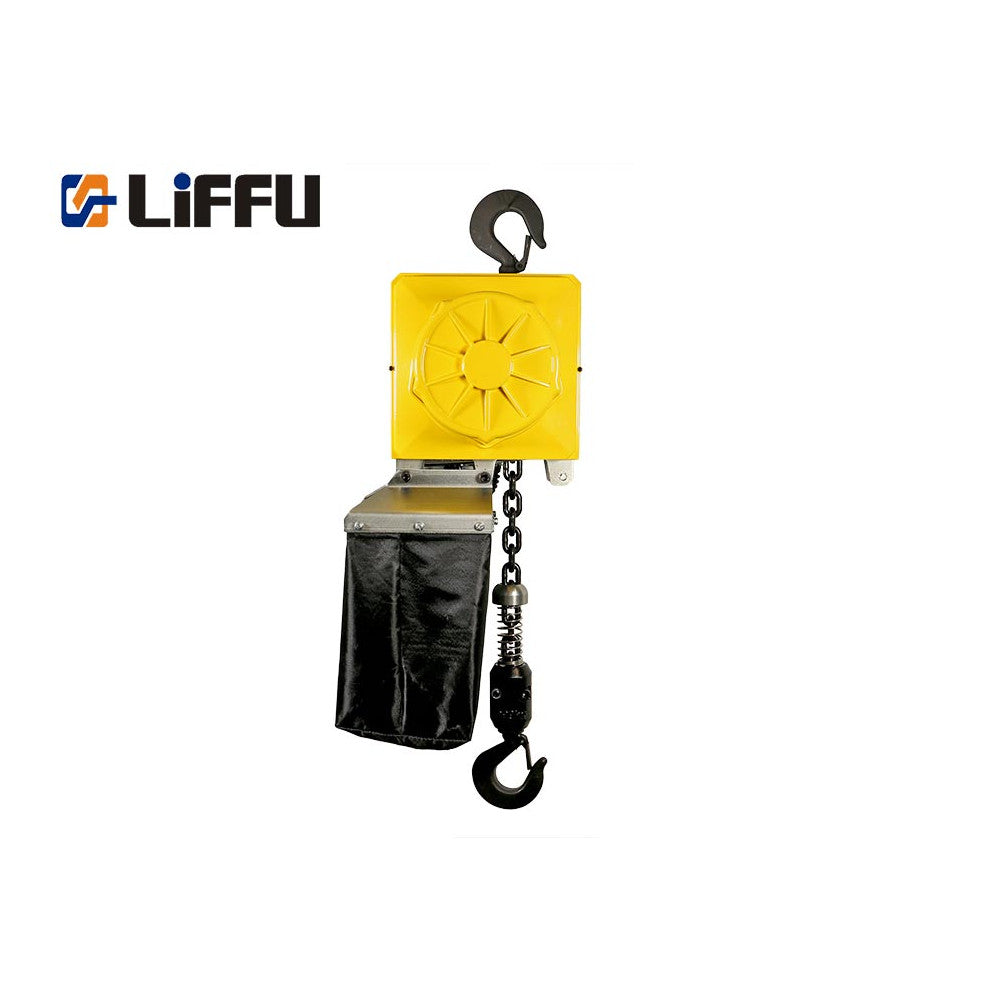

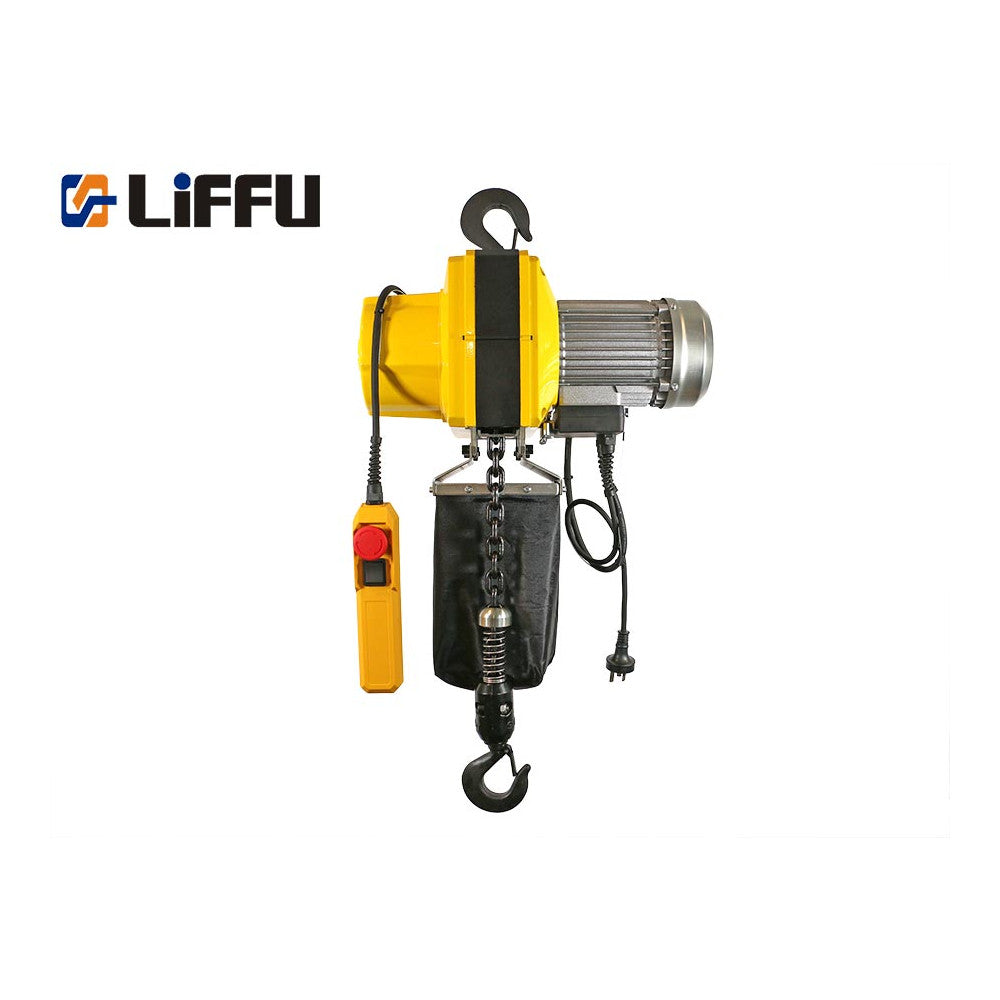

This electric chain hoist hooks onto an overhead i-beam or gantry trolley to make easy work of any lifting jobs you have around the workshop. No special mounting is required, just a loop or shackle for the top hook to attach to.
The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure. Its compact size and light weight compared to other 1 Ton hoists make it easy to install and move around if required.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel hooks
SPECIFICATIONS
Capacity 1000Kg (1 Ton)
Lifting height 6m
Speed 3.2m/min
Hook to hook 480mm minimum
Single phase 230V 1100W
Pendant cable length 5m (extendable^)
Duty cycle S3 35% over 10 minutes
Overall size 430L x 260D x 620H mm
Weight 38Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric chain hoist
Chain bag and clips
User manual
NOTES
^ Requires installation of longer 4-core mains-rated cable by a registered electrician. We can do this for you, charges apply.
What's the difference between a WINCH and a HOIST?
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
Pulling is easier than lifting, and a lifted load needs to be stopped with a brake.
