Liffu does the heavy lifting for you. We have a range of electric chain hoists, wire rope hoists, scaffold hoists, remote control hoists, i-beam trolleys, and other types of lifting equipment to suit all your lifting and handling needs.

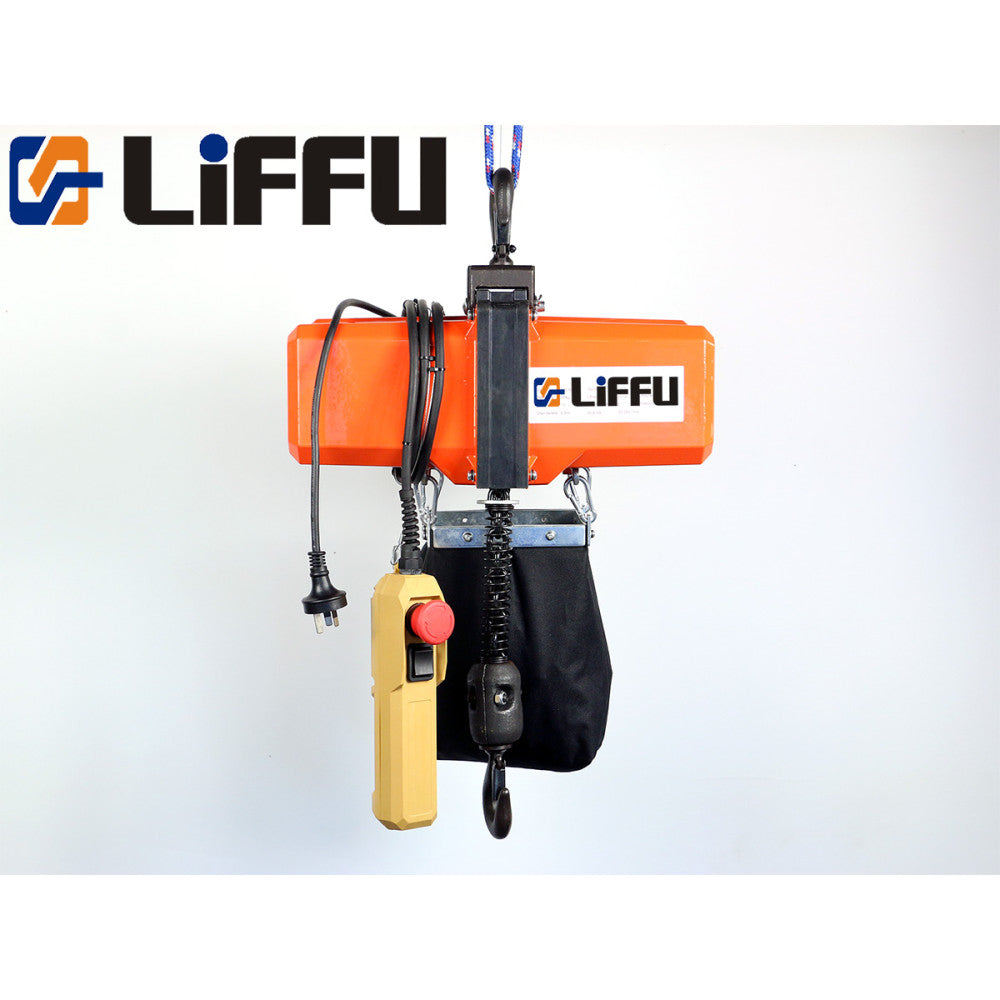

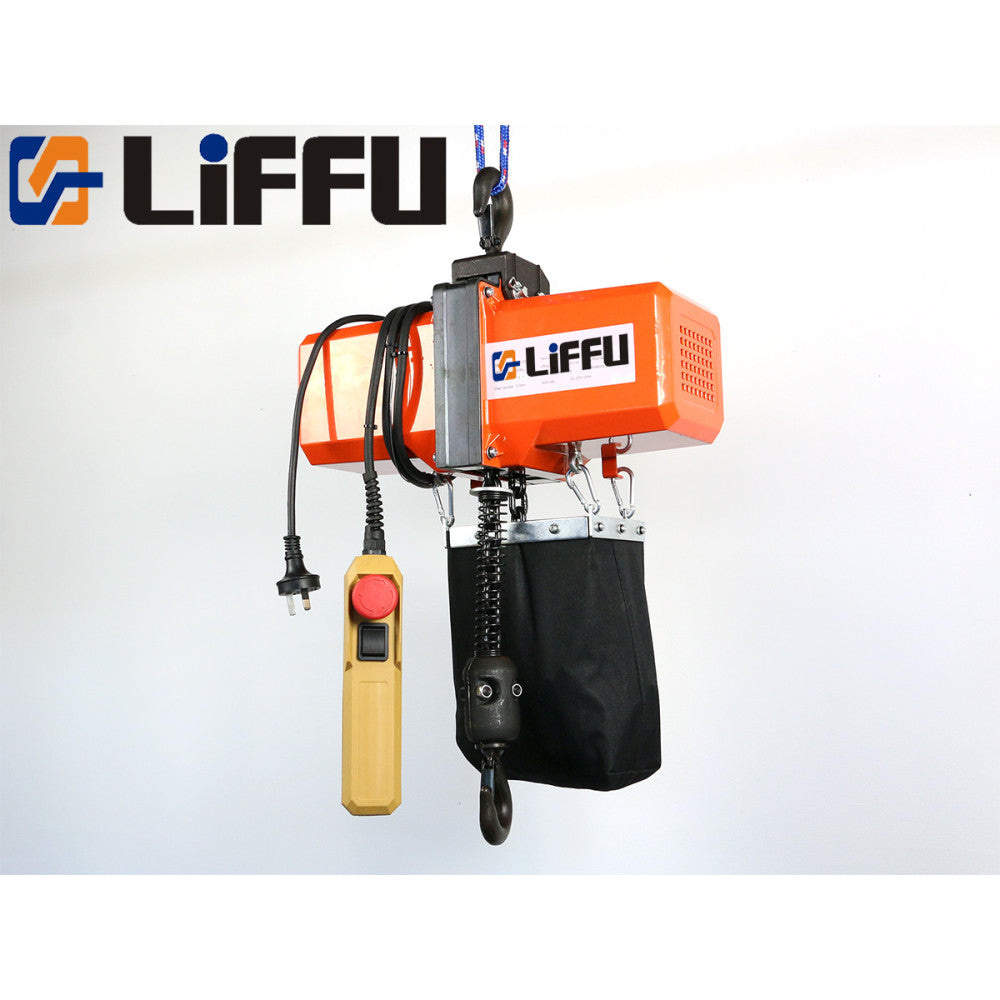

This electric chain hoist hooks onto an overhead i-beam or gantry trolley to make easy work of any lifting jobs you have around the workshop. No special mounting is required, just a loop or shackle for the top hook to attach to.
The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure. Its small size and light weight make it very portable.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel hooks
SPECIFICATIONS
Capacity 500Kg
Lifting height 6m
Speed 3m/min
Hook to hook 480mm minimum
Single phase 230V 680W
Pendant cable length 5m
Duty cycle 25% over 10 minutes
Body size 390L x 170W x 170H mm
Weight 22Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric chain hoist
Chain bag and clips
User manual
NOTES
> This item may sometimes be supplied with a yellow body.
