Description
IMPORTANT SHIPPING
This item is over 25kg and requires truck delivery. Free shipping applies to CBD business addresses only (or nearest depot). Residential, rural, and work-from-home addresses require a delivery quote.

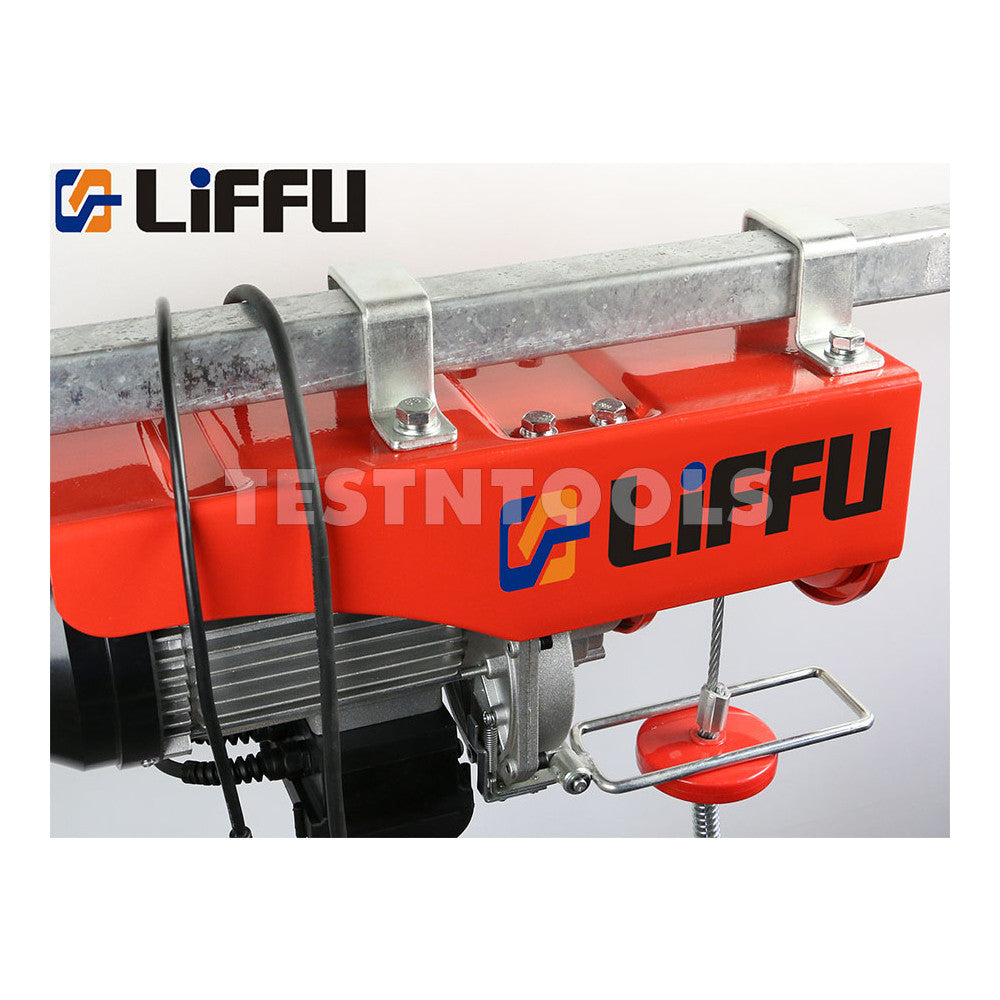

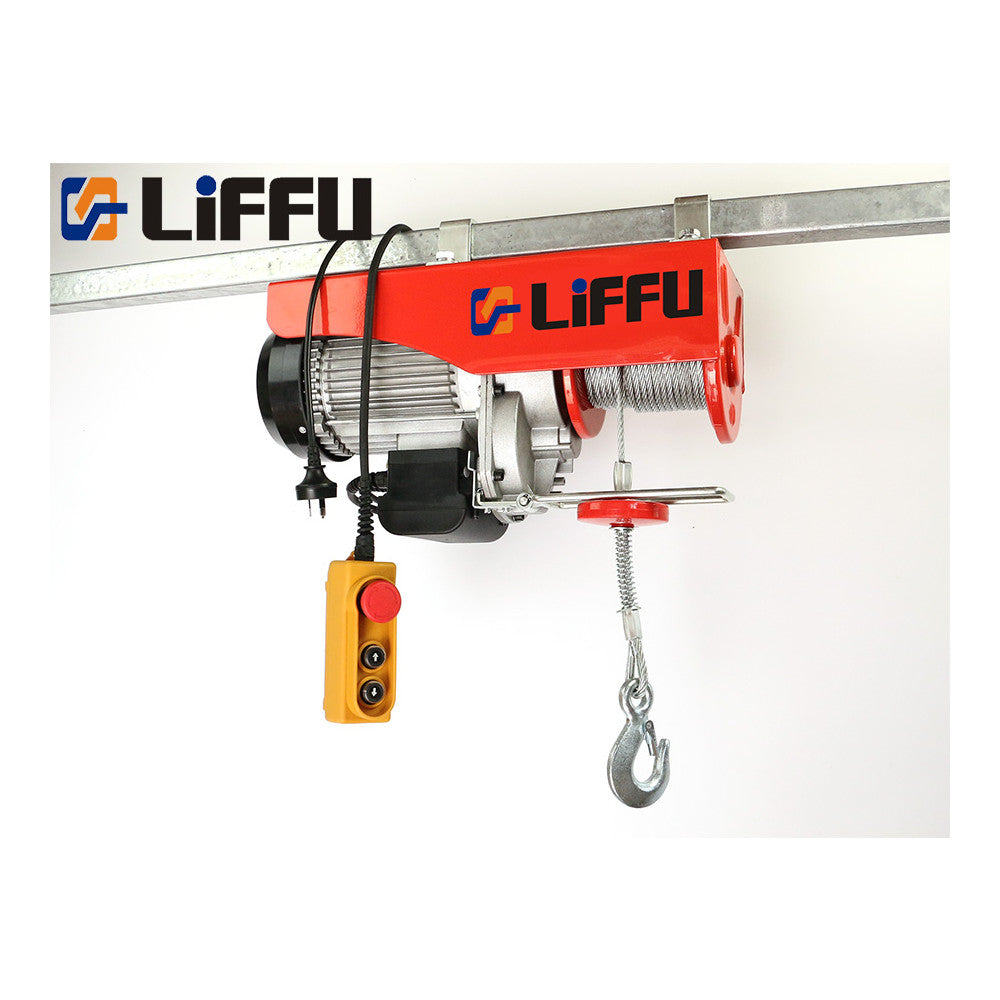

This hoist (can also be mounted as a winch) bolts onto an overhead i-beam or gantry trolley making it easy to lift anything you want. Plug in to an ordinary power point and away you go. Maximum lift is achieved when the rope is doubled over with the included pulley hook.
FEATURES
Up/down switch
Emergency stop
Thermal overload protection
Up overrun protection
Electromagnetic brake
Cable strain reliefs
Hook ballast
SPECIFICATIONS
Load 600Kg single rope, 1200Kg double rope
Single phase 230VAC 1800W
Height 18m single, 9m double
Speed 8m/min single, 4m/min double
Pendant cable 1.6m (extendable)
Size 490L x 175W x 160H mm
Wire rope 6mm diameter
Weight 32Kg
INCLUDES
Electric hoist
Brackets and bolts
Pulley hook for double rope
Manual
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
International CE certification, GS, EMC and RoHS
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
