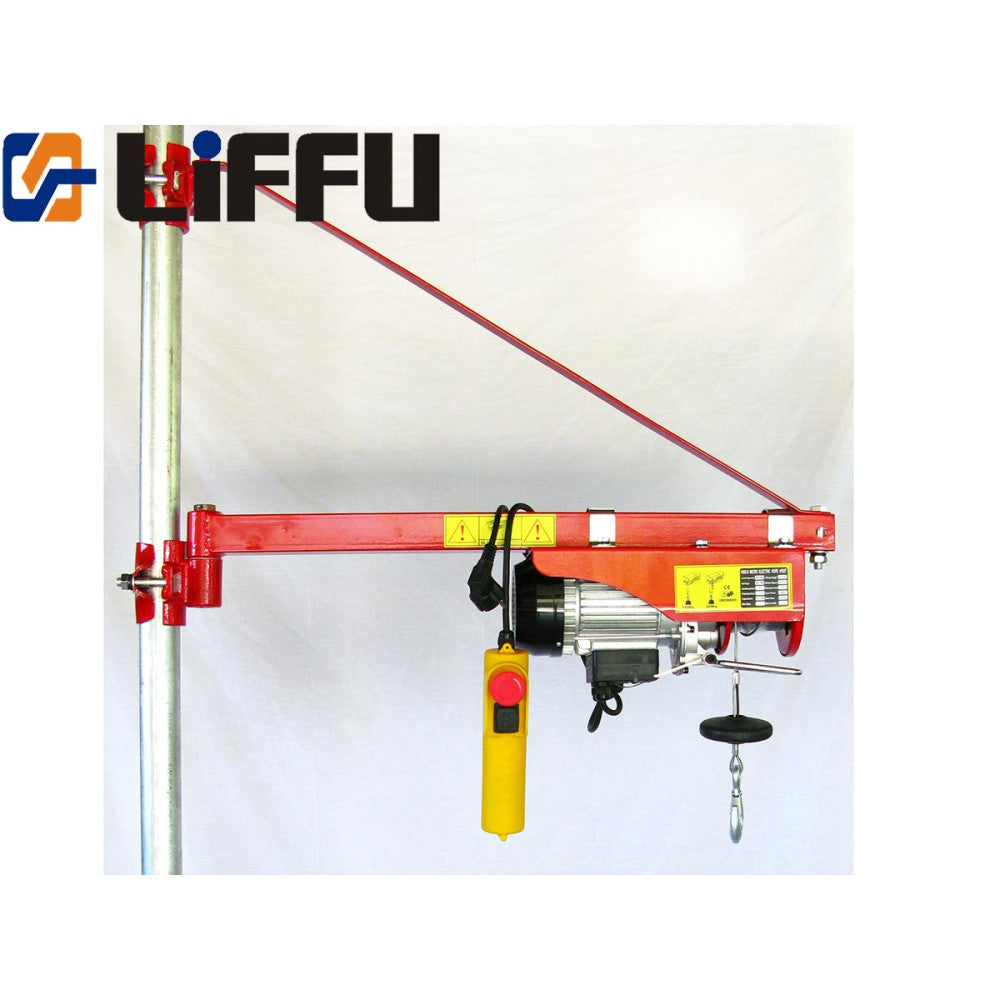

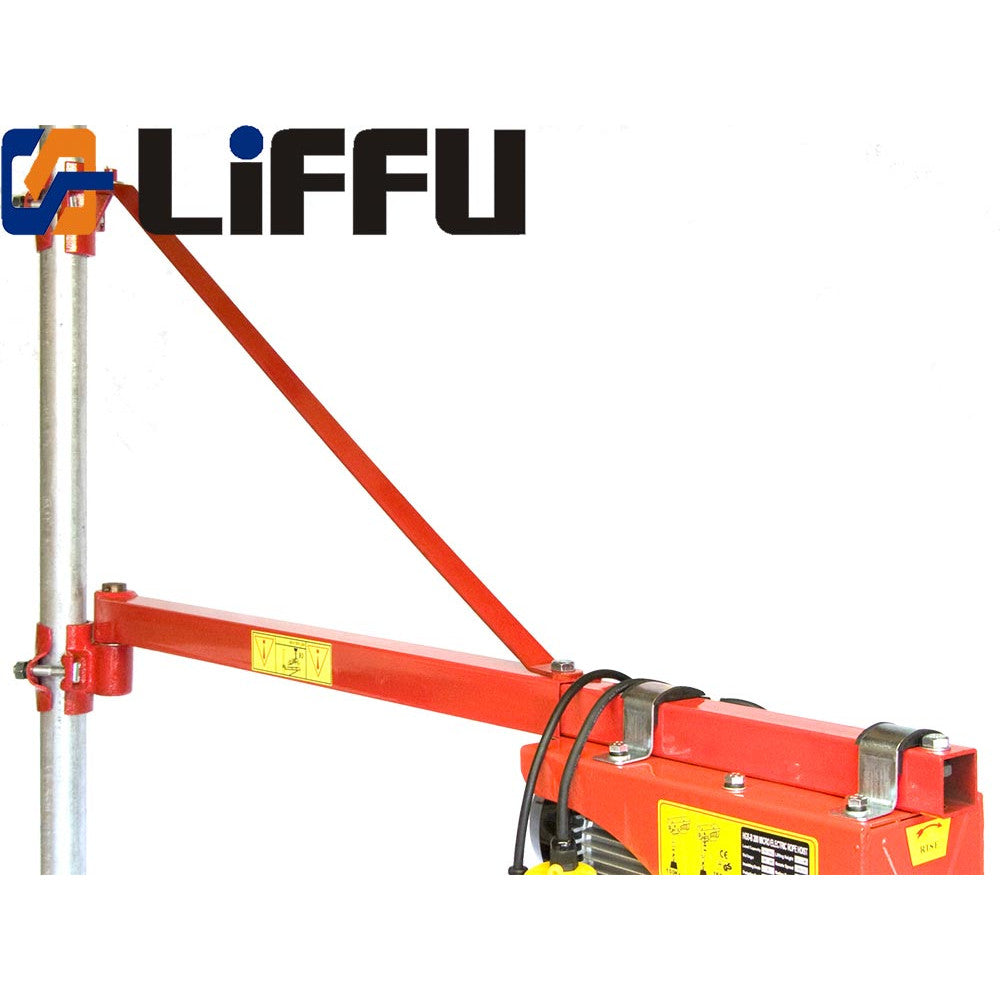

Liffu Electric Hoist Scaffold Swing Arm 1100mm HST250

Liffu does the heavy lifting for you. We have a range of electric chain hoists, wire rope hoists, scaffold hoists, remote control hoists, i-beam trolleys, and other types of lifting equipment to suit all your lifting and handling needs.

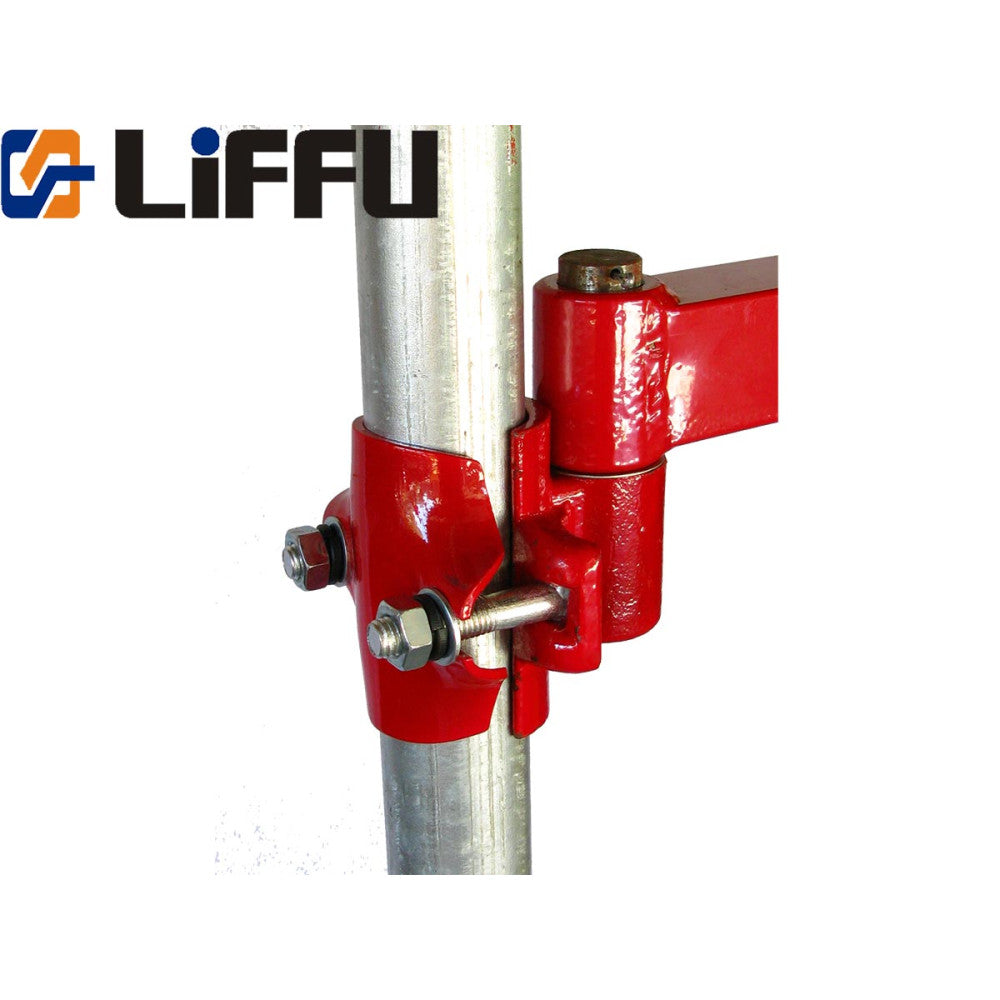

This swing arm bolts to commonly available scaffold pipe and tube with an outside diameter of up to 50mm. It makes it easier to swing your load to the side once you get it raised to where you need it.

SPECIFICATIONS

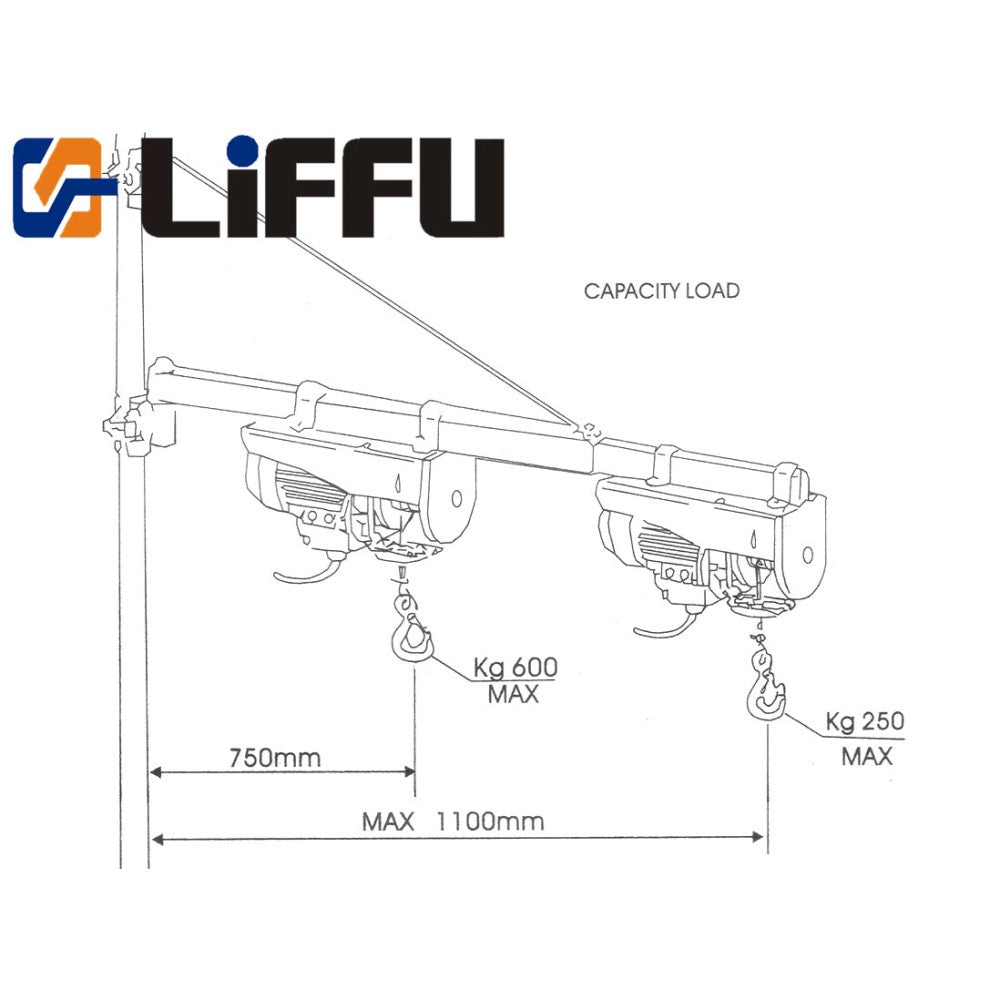

Maximum load 600Kg at 750mm from pivot
Maximum load 250Kg at 1100mm from pivot
Main arm length 750mm
Extended arm length 1100mm
Main arm 45mm box section
Extension arm 40mm box section
Pivot arc range 300 degrees

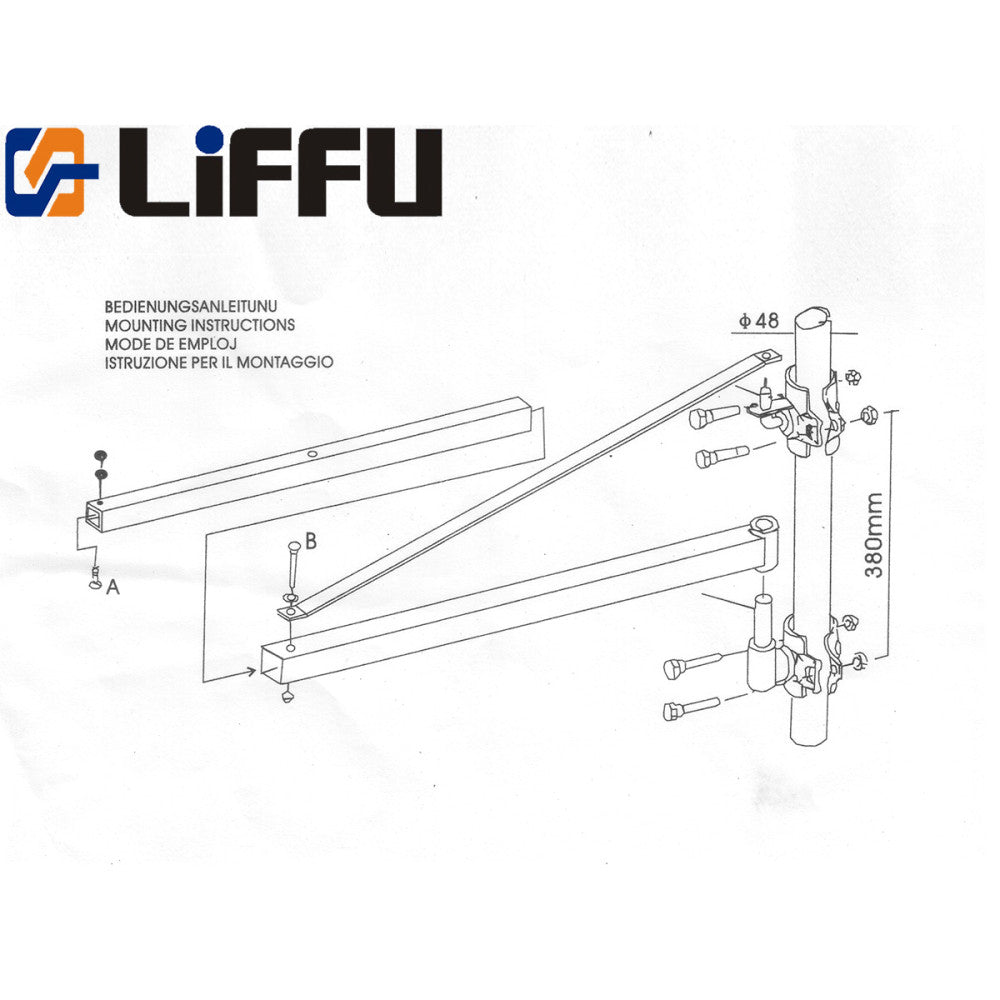

Distance between clamps 380mm
Clamps on 50mm max O.D scaffold tube
Weight 7.5Kg

INCLUDES
Clamping U-bolts
Pipe clamp pivots
Nuts and spring washers
User manual

NOTES
> The maximum hoist size at 1100mm from the pivot is 250Kg. Larger hoists can be used if the support bar hole is re-drilled so the hoist can lay flat against the arm. This is because hoists over 250Kg have a longer body.
> Does not fit scaffold tube over 50mm in diameter (some aluminium scaffold tubes). Check your tube size before ordering.
> This item may at times be supplied in silver.
> Electric hoist not included.
