IMPORTANT SHIPPING
This item is over 25kg and requires truck delivery. Free shipping applies to CBD business addresses only (or nearest depot). Residential, rural, and work-from-home addresses require a delivery quote.

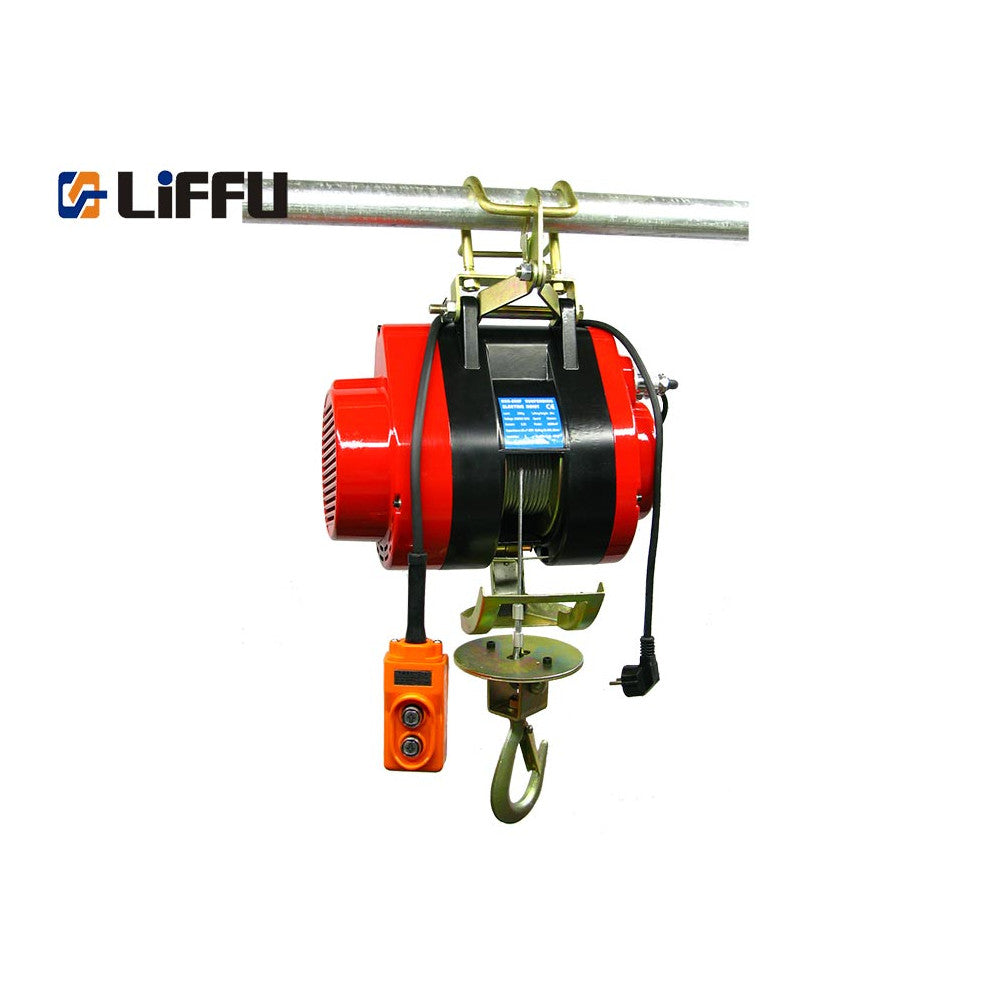

This hoist hooks onto a standard-size scaffold tube (up to 50mm O.D.) making it a good option for builders, roofers, and brick layers to get your materials up to where you're working. It will save you a lot of time and effort when working at heights.
Just plug it into an ordinary power point and away you go. The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure.
FEATURES
> Up/down switch
> Emergency stop
> Up/down overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Swivel load hook
SPECIFICATIONS
Capacity 250Kg
Lifting height 20m
Lifting speed 12m/min
Wire rope diameter 4.2mm
Rope breaking strain 1300Kg
Hooks on 50mm max O.D. tube
Single phase 230VAC 1200W
Duty cycle 40% 20 minutes
Power cable 0.7m
Pendant cable 5m
Weight 30Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS

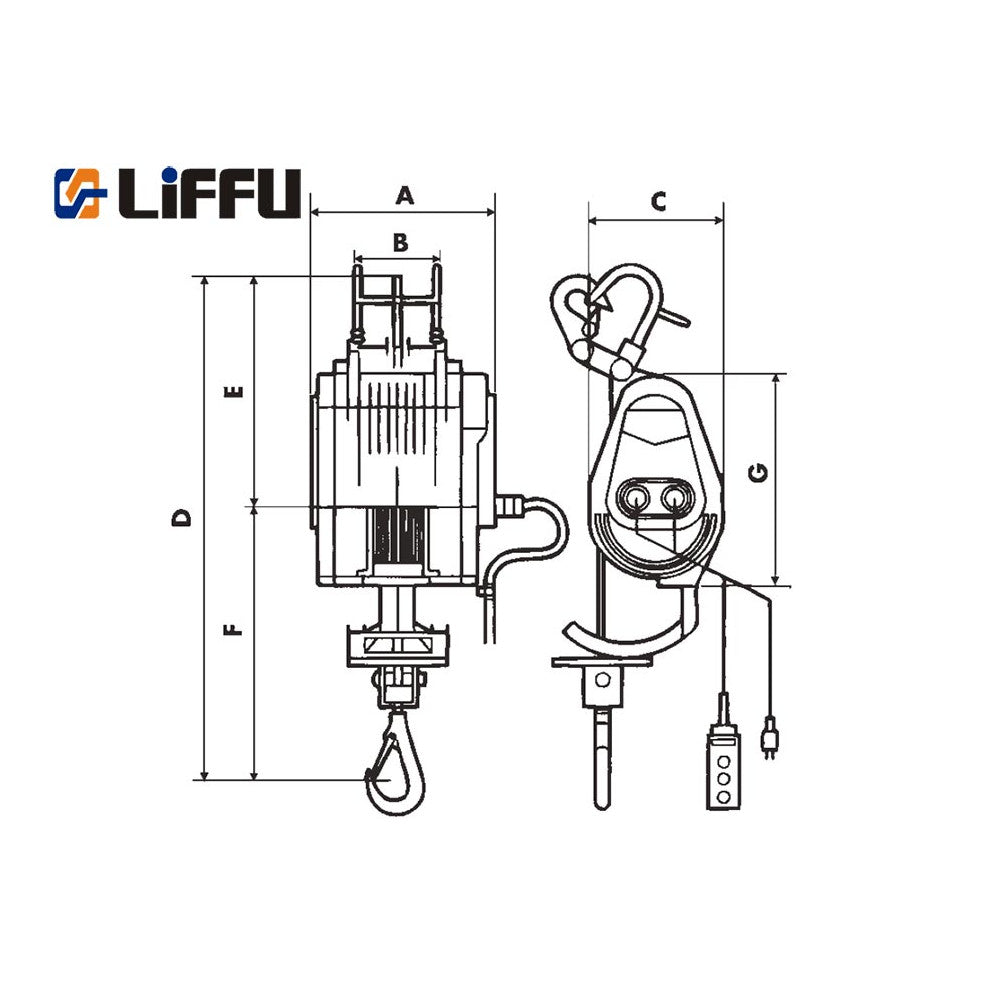

Dimensions (see picture)
A - 244mm
B - 115mm
C - 182mm
D - 640mm
E - 280mm
F - 360mm
G - 285mm
