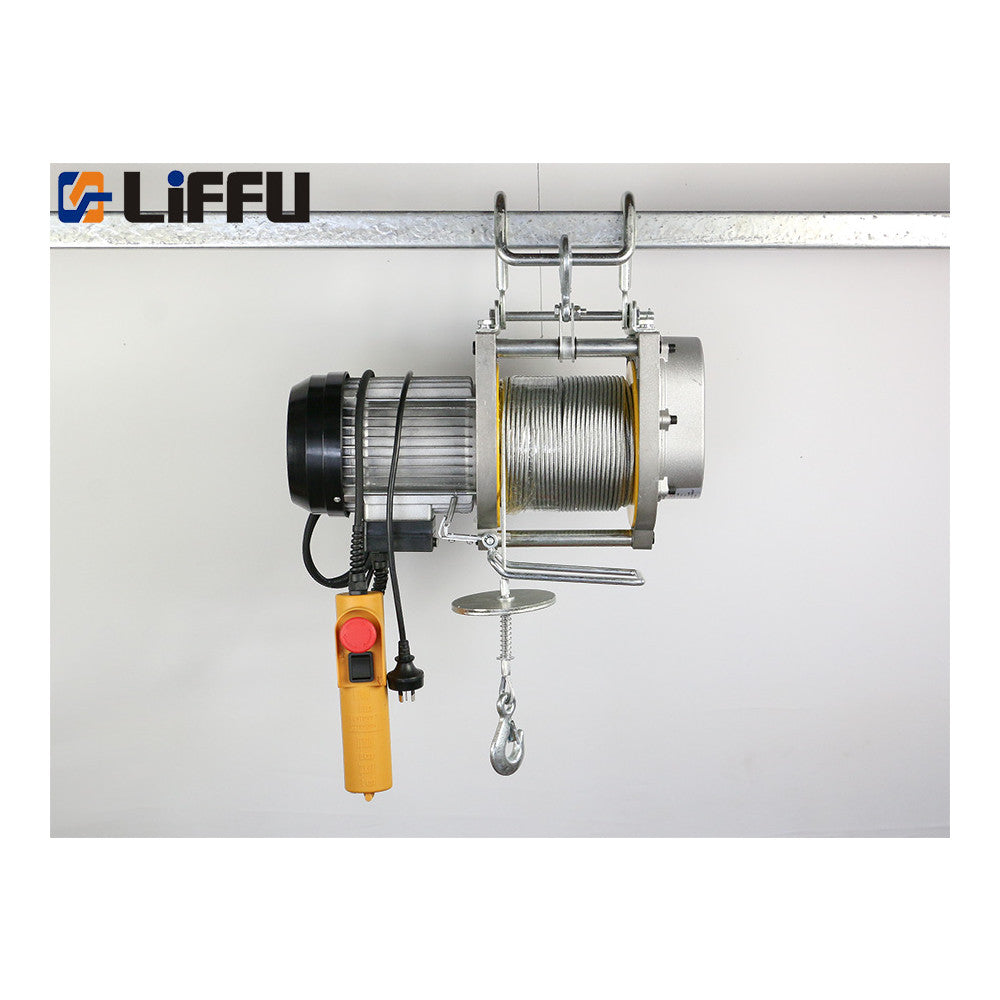

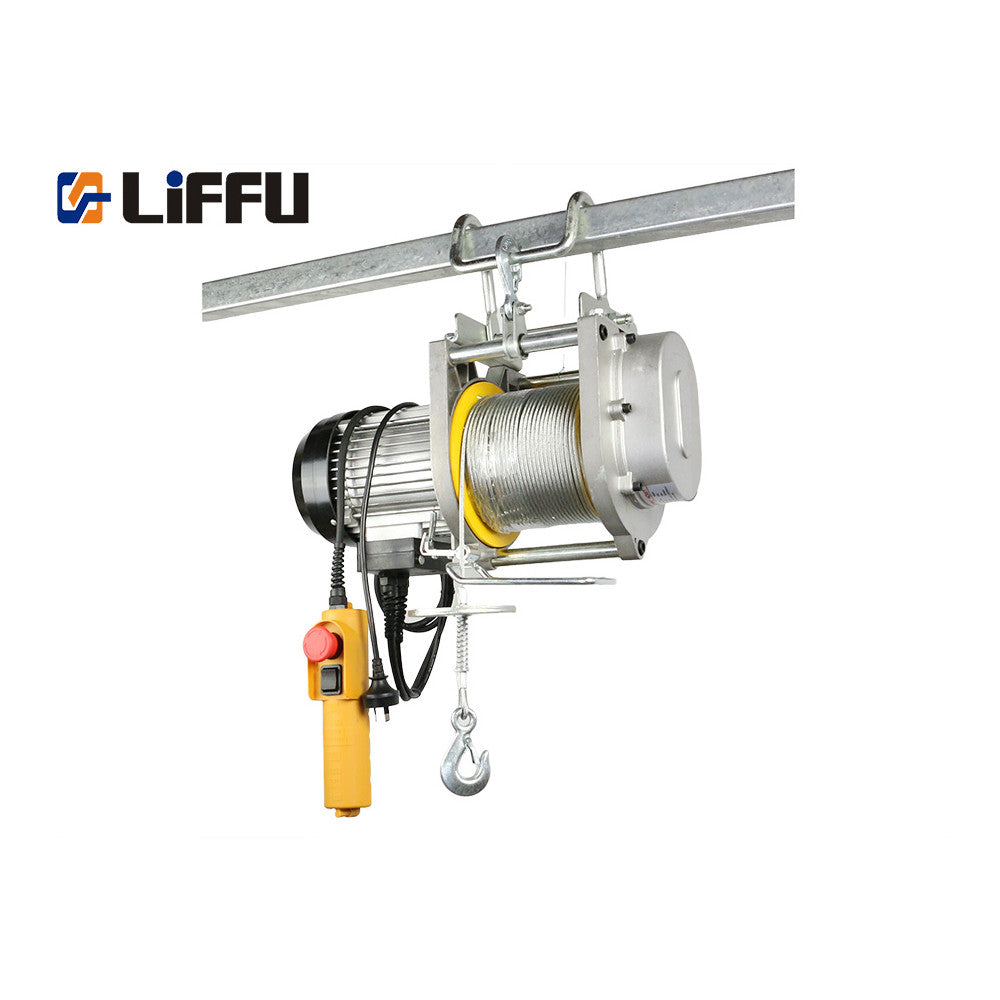

This hoist hooks onto a standard-size scaffold tube (up to 50mm O.D.) making it a good option for builders, roofers, and brick layers to get your materials up to where you're working. It will save you a lot of time and effort when working at heights.
Just plug it into an ordinary power point and away you go. The electromagnetic brake is released only when the up/down switch is operated making it fail-safe in the event of a power failure.
The 60-metre wire rope makes it suitable for working at great heights when you'd normally have to hire a crane.
FEATURES
> Up/down switch
> Emergency stop
> Up overrun protection
> Thermal overload protection
> Electromagnetic brake
> Uses normal power point
> Cable strain relief
> Hook ballast
SPECIFICATIONS
Capacity 250Kg
Lifting height 60m
Lifting speed 15m/min
Hook to hook 600mm
Wire rope diameter 4.5mm
Hooks on 50mm max O.D. tube
Single phase 230VAC 1300W
Duty cycle 40% over 10 minutes
Pendant cable 1.6m (extendable)
Size 460L x 200W x 600H mm
Weight 32Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Electric hoist
User manual
What's the difference between and HOIST and a WINCH?
HOISTS are for LIFTING - A 200Kg hoist could probably pull a 1000Kg load
WINCHES are for PULLING - A 1000Kg winch could probably only lift 100Kg
Pulling is easier than lifting and a lifted load needs to be stopped with a brake.
