Liffu does the heavy lifting for you. We have a range of electric chain hoists, wire rope hoists, scaffold hoists, remote control hoists, i-beam trolleys, and other types of lifting equipment to suit all your lifting and handling needs.

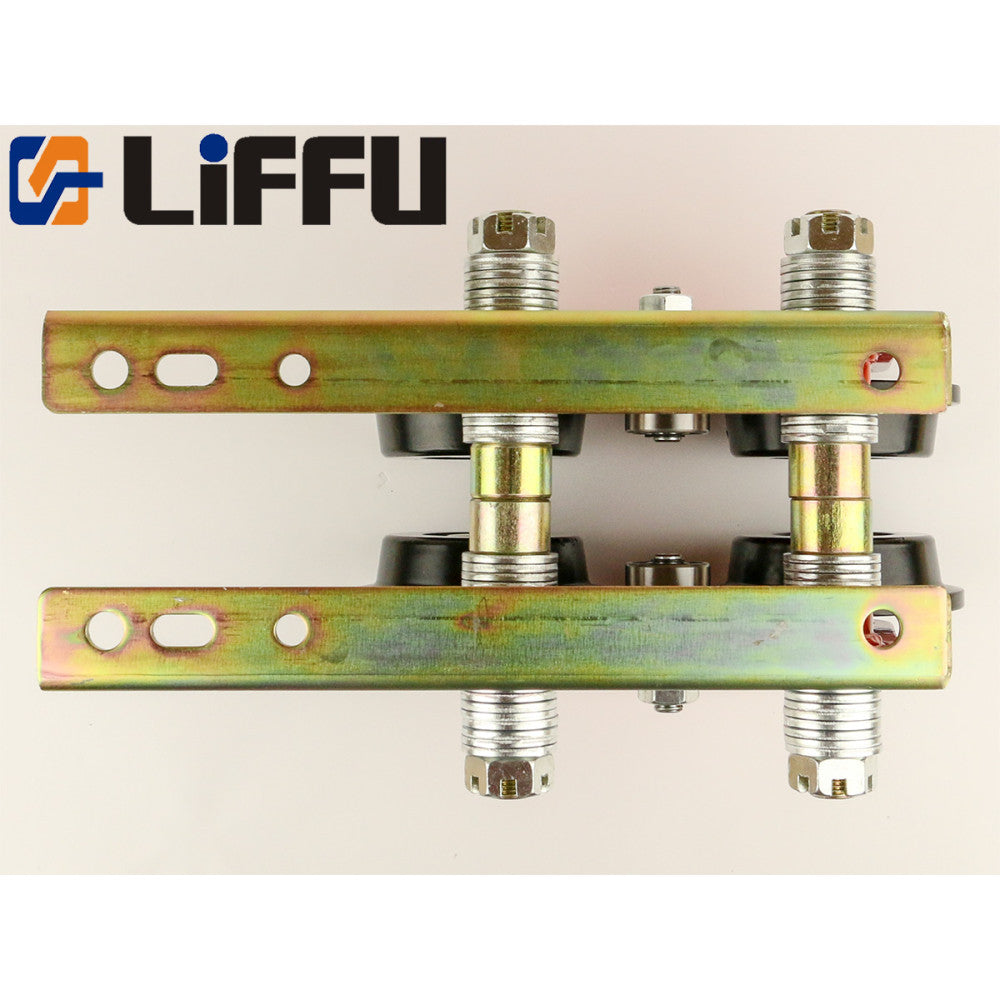

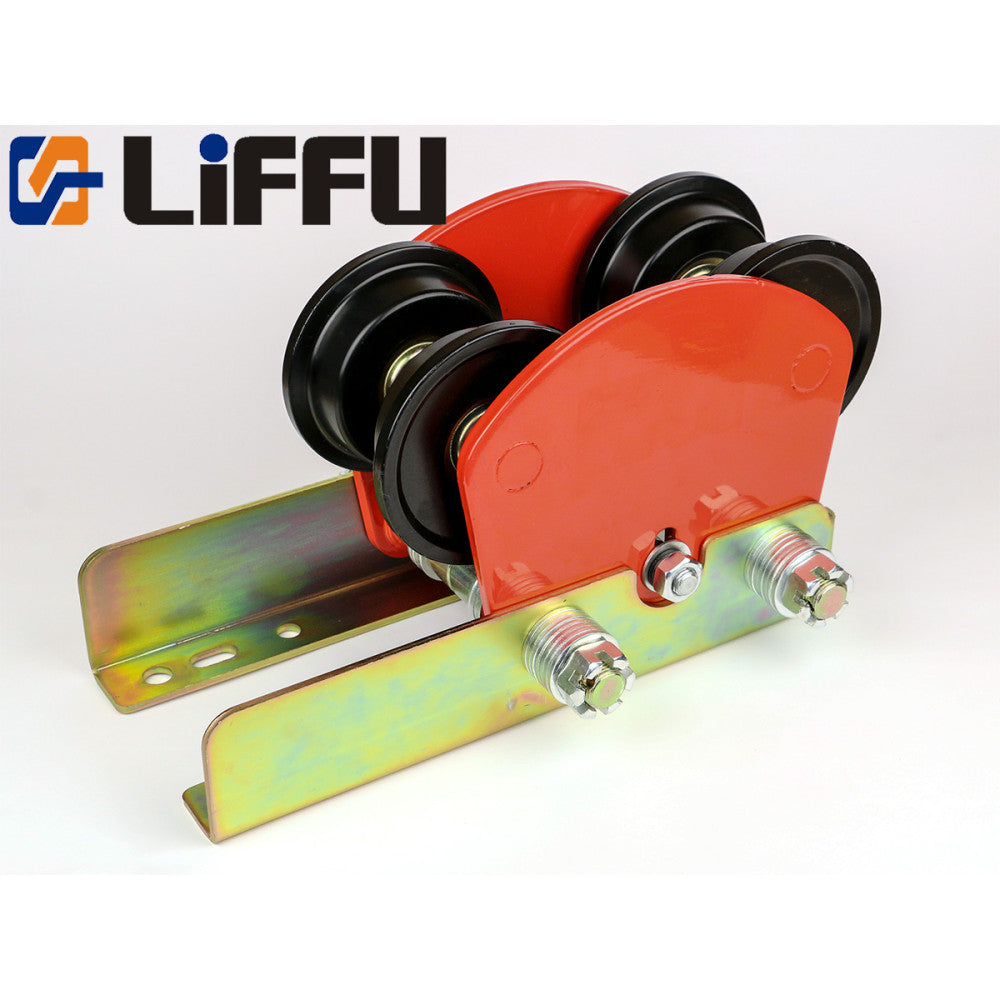

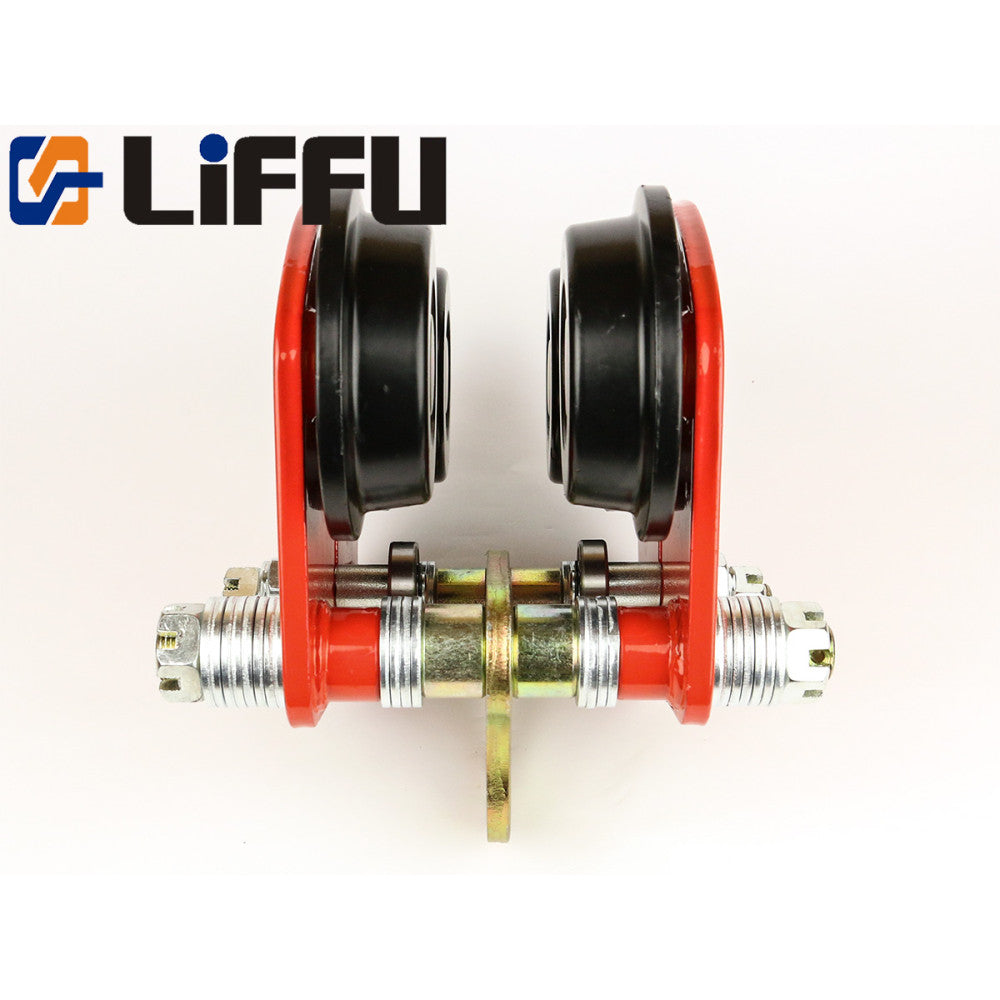

This unpowered trolley runs on an overhead I-beam from which you can hang a chain block, electric chain hoist, or lever hoist. Brackets are also included for attaching any size mini electric hoist from PA200 to PA1200.
It should be installed on a suitably rated i-beam (RSJ or H-section) with a bottom flange width of 68-110mm^. It can be installed at any point on the beam, end of beam access is not required.
FEATURES
> Hardened steel wheels
> Sealed wheel bearings
> Hook loop for chain blocks and lever hoists
> Adjustable anti-tip bearings
SPECIFICATIONS
Maximum load 1200Kg
I-beam width 68-110mm^
Conical wheel diameter 75-82mm
Overall wheel diameter 105mm
Size without brackets 210L x 200W x 200H mm
Weight 12Kg
STANDARDS
European 2006/42/EC EN14492-2 and EN60204-32
CE, GS, EMC, and RoHS
INCLUDES
Plain trolley
Electric hoist mounting brackets
Hook mounting loop
User manual
NOTES
> Also known as a push trolley, gantry trolley, or girder trolley.
> Can also be used as a pipe trolley on 55mm O.D. tube.
^ Can be used on wider I-beams if the bolts are replaced with longer 19mm high tensile bolts.
