Description

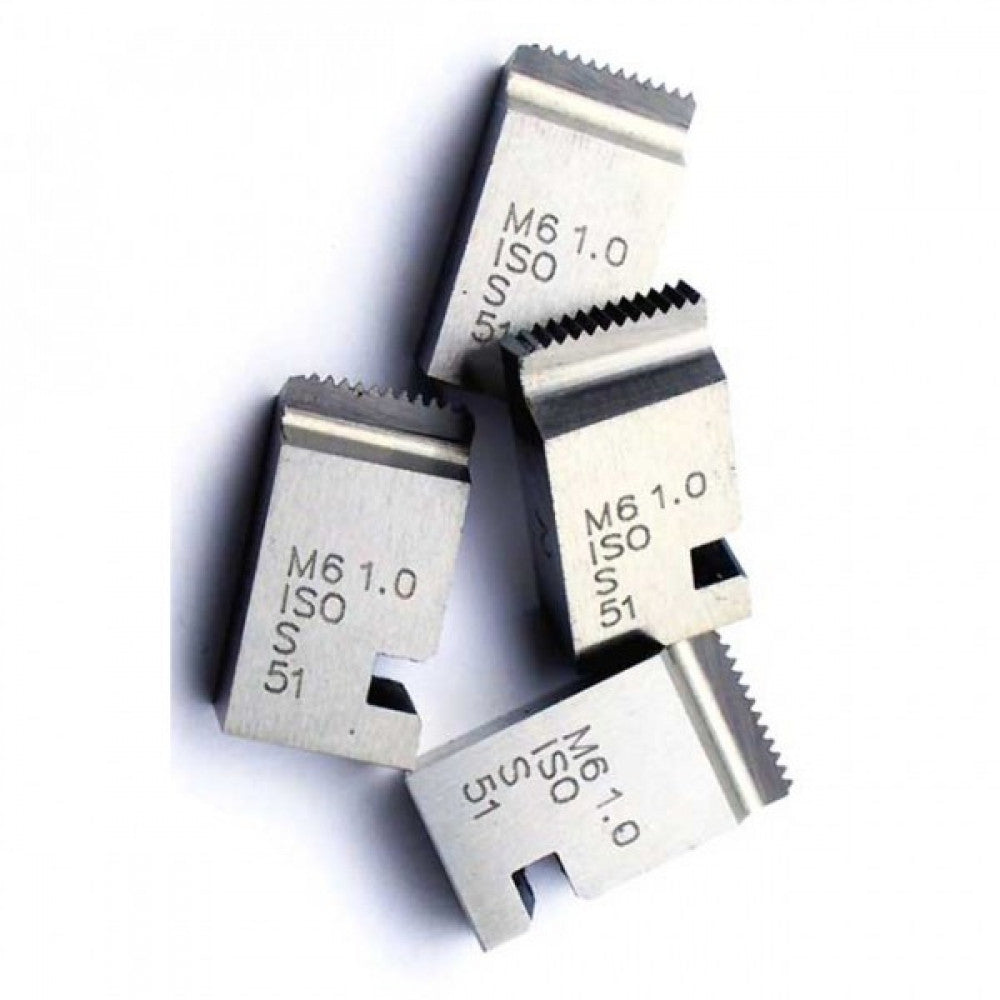

High speed steel chaser die set.
Suitable for all Coventry die heads and derivatives Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth.
The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
AM5 Rake For Cutting High tensile steels, free cutting stainless steel.

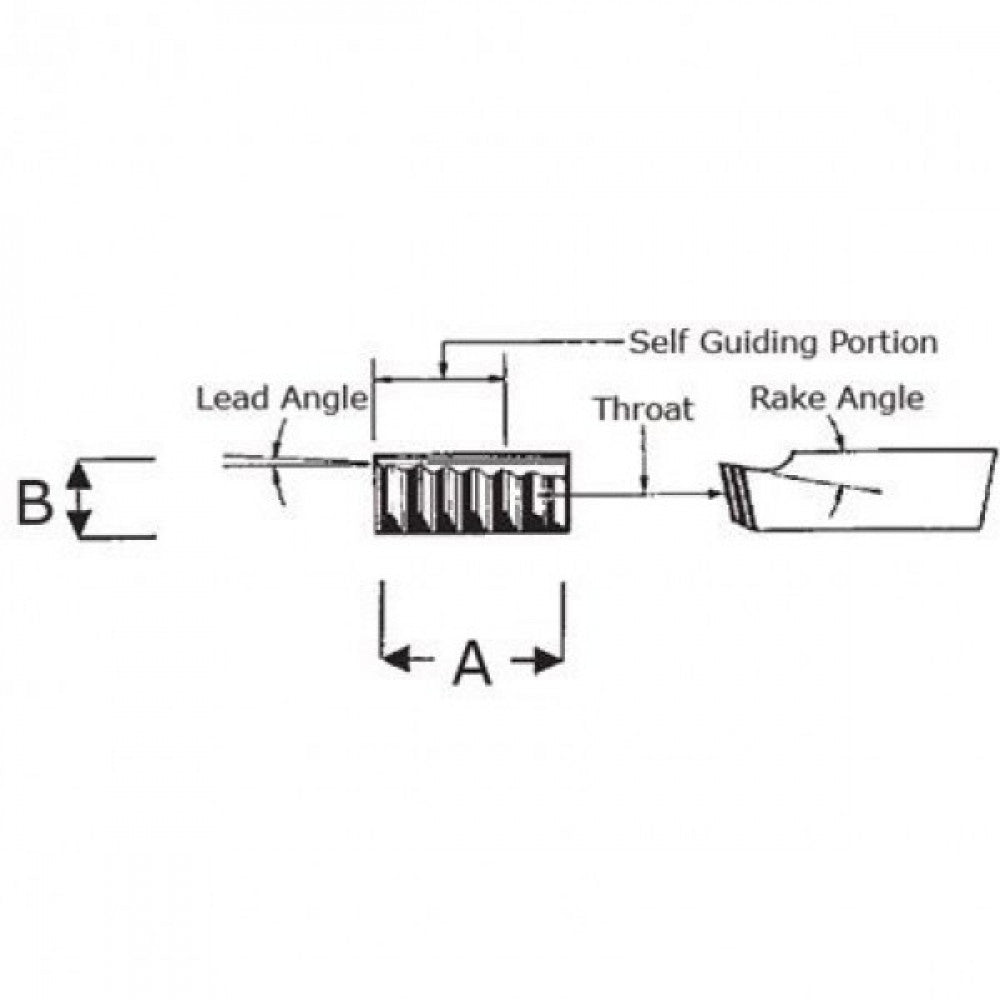

Die width (A) 3/4"
Die thickness (B) 5/16"
Suitable for all Coventry die heads and derivatives Coventry chasers are designed so that cutting takes place at the chamfer and the first full tooth.
The other teeth are above centre height, so they act as a nut, ensuring accurate pitch.
AM5 Rake For Cutting High tensile steels, free cutting stainless steel.
Die width (A) 3/4"
Die thickness (B) 5/16"
