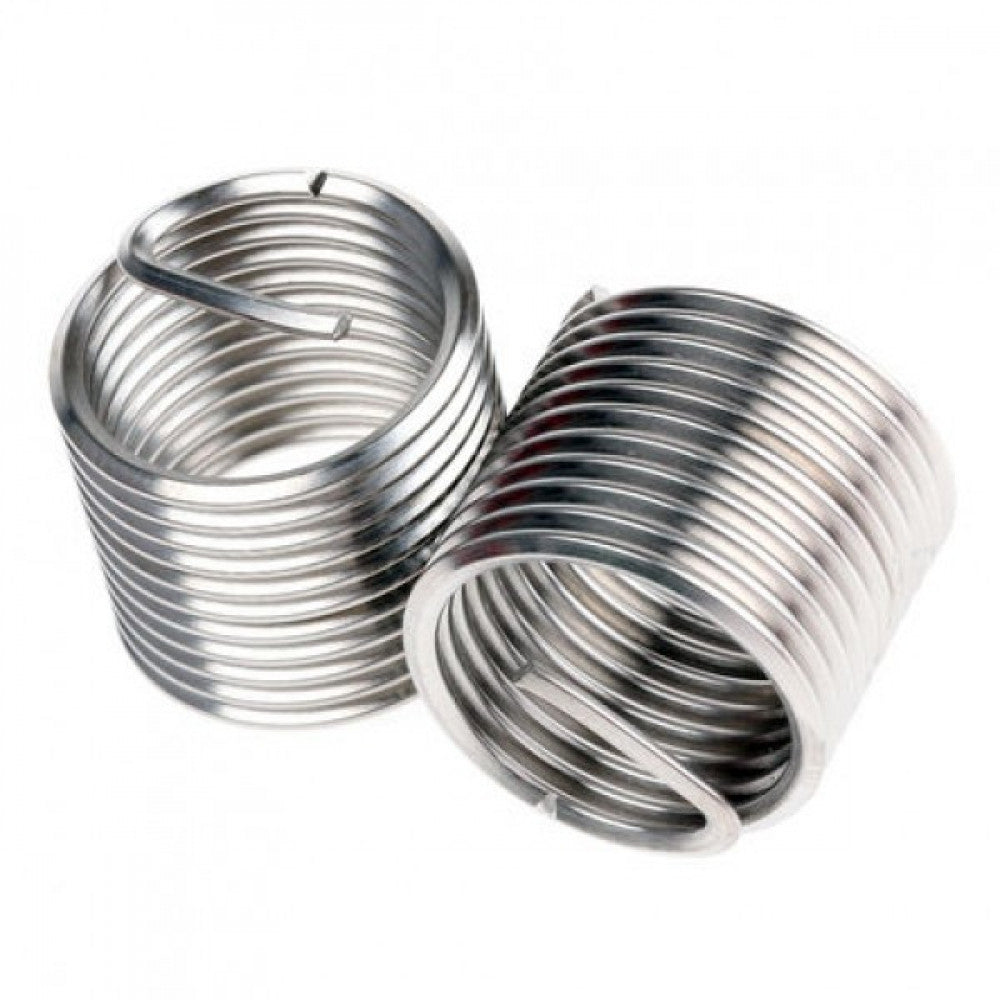

Once the insert is installed into a tapped hole, it provides a permanent and wear resistant thread in the parent material designed to be stronger than the original thread.
The inserts are greater in diameter than the corresponding tapped hole and compress as they are installed.
This allows maximum surface contact area with the tapped thread, safely and permanently anchoring the inserts into place.
The insert’s compensatory action shares the load over the entire bolt and hole, increasing holding or pull out strength.
With a Recoil insert in place, load and stress are more evenly distributed.
Insert Length 0.827", 21.0mm
Drill size 9/16 or 14.25mm
